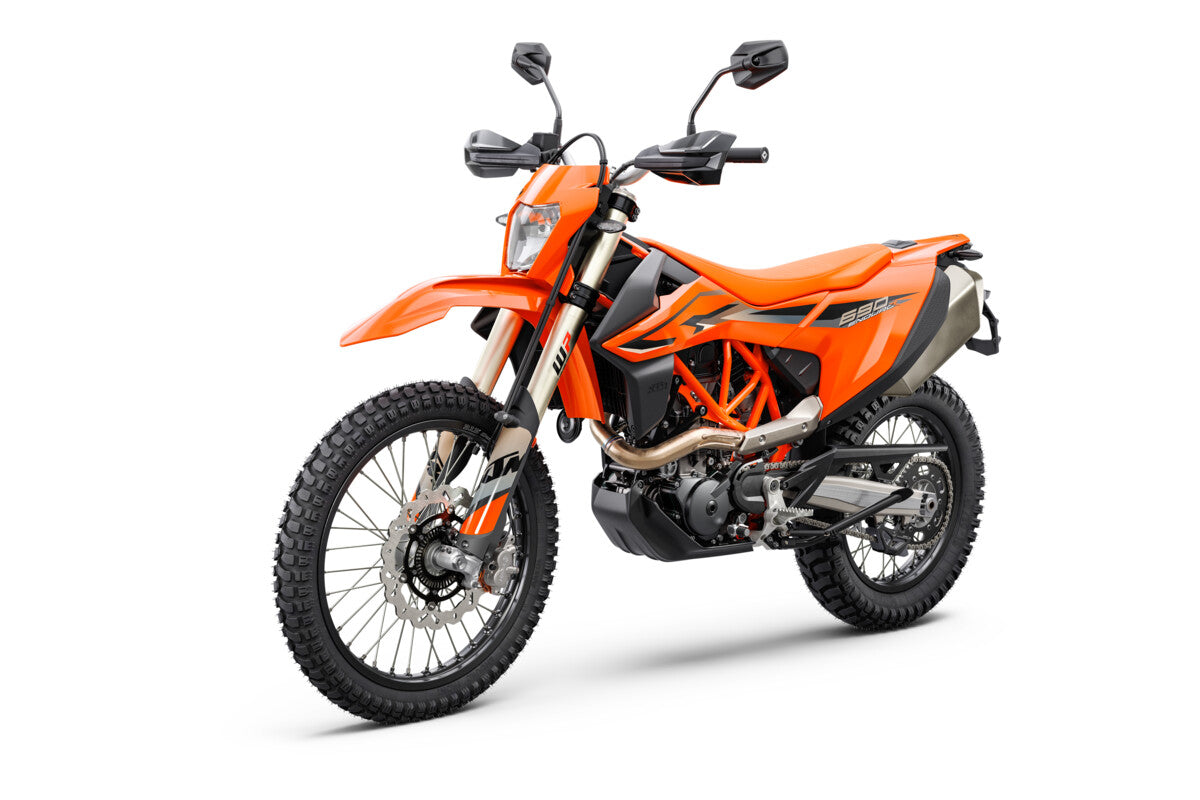

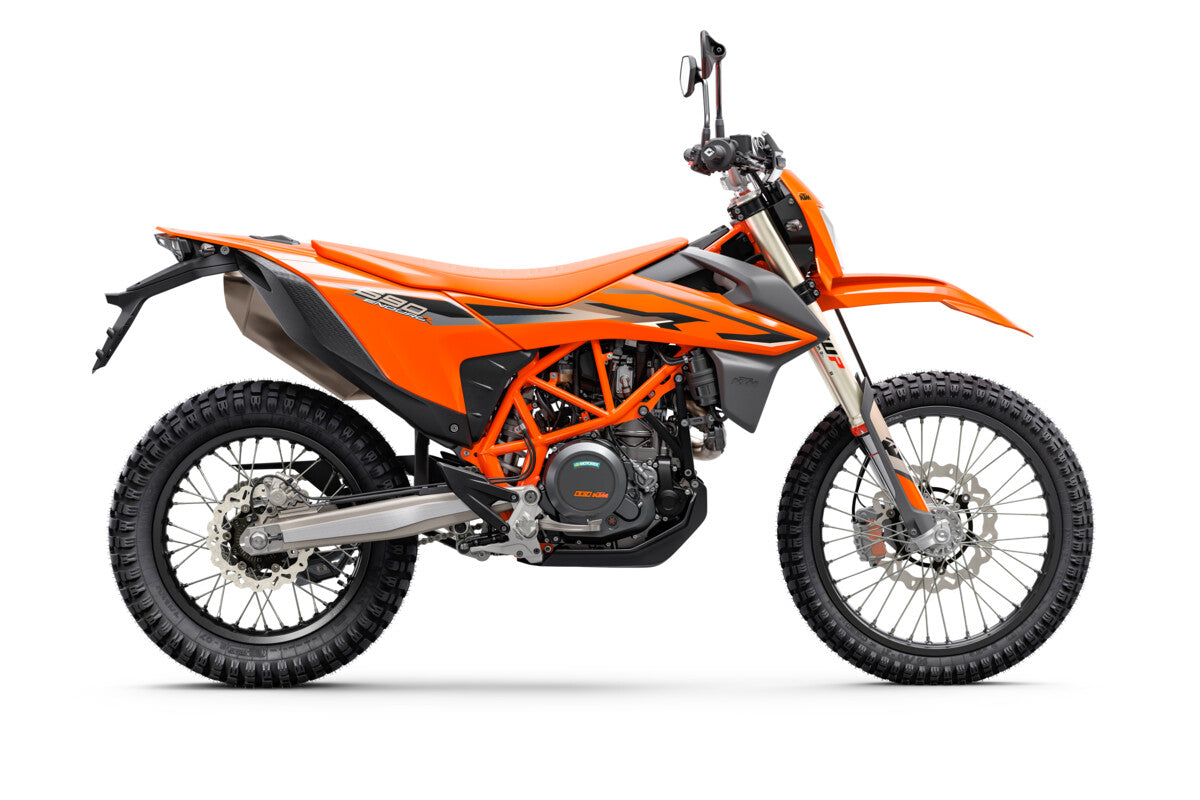

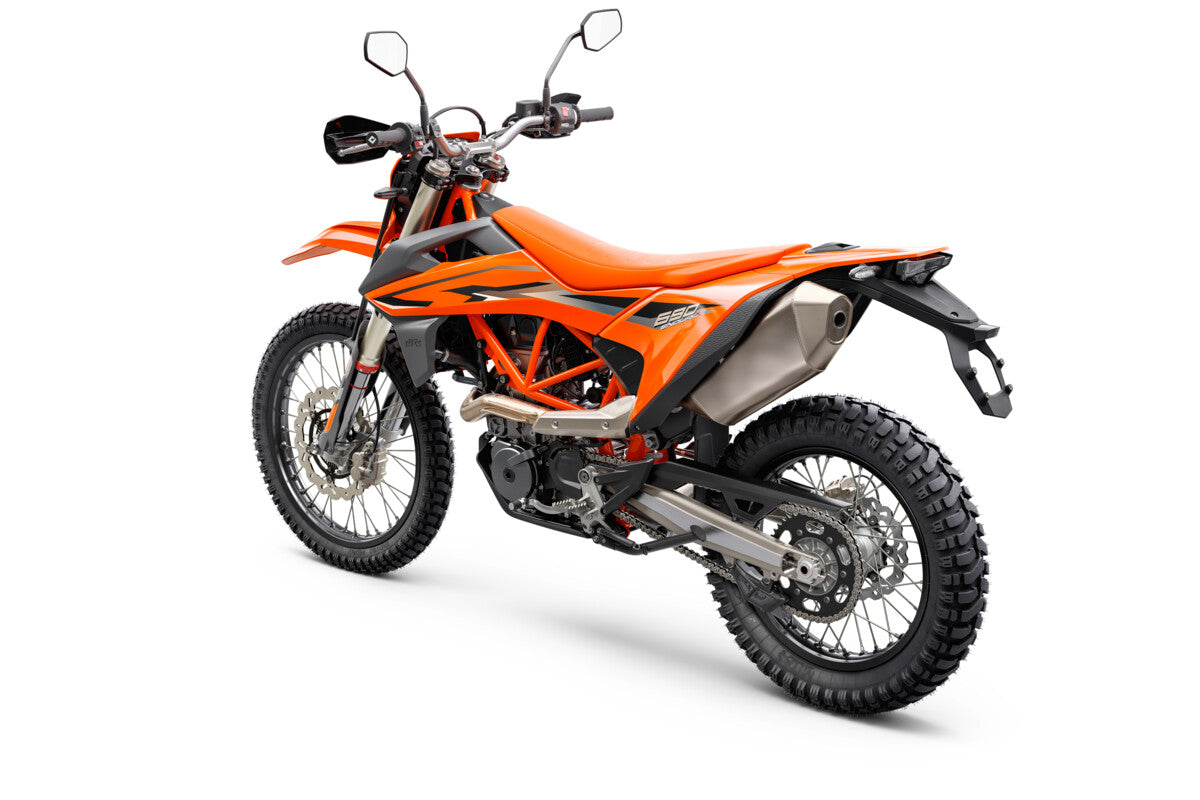

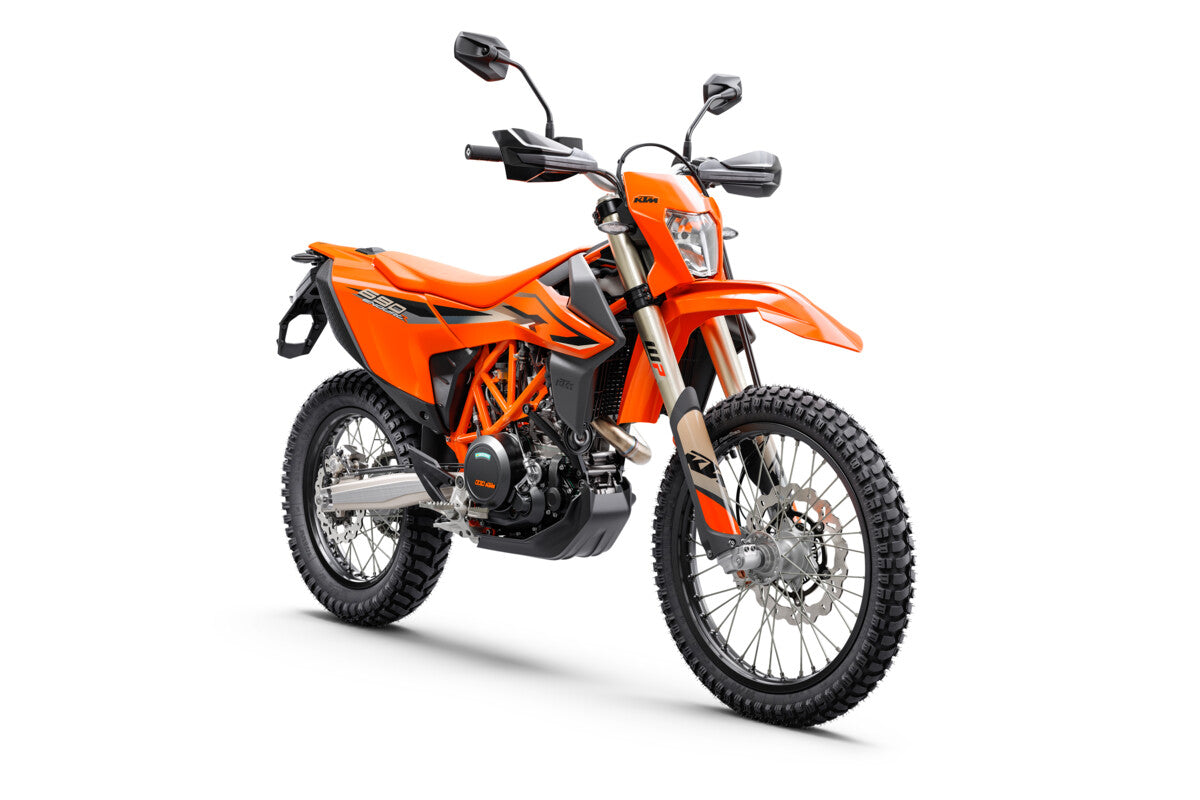

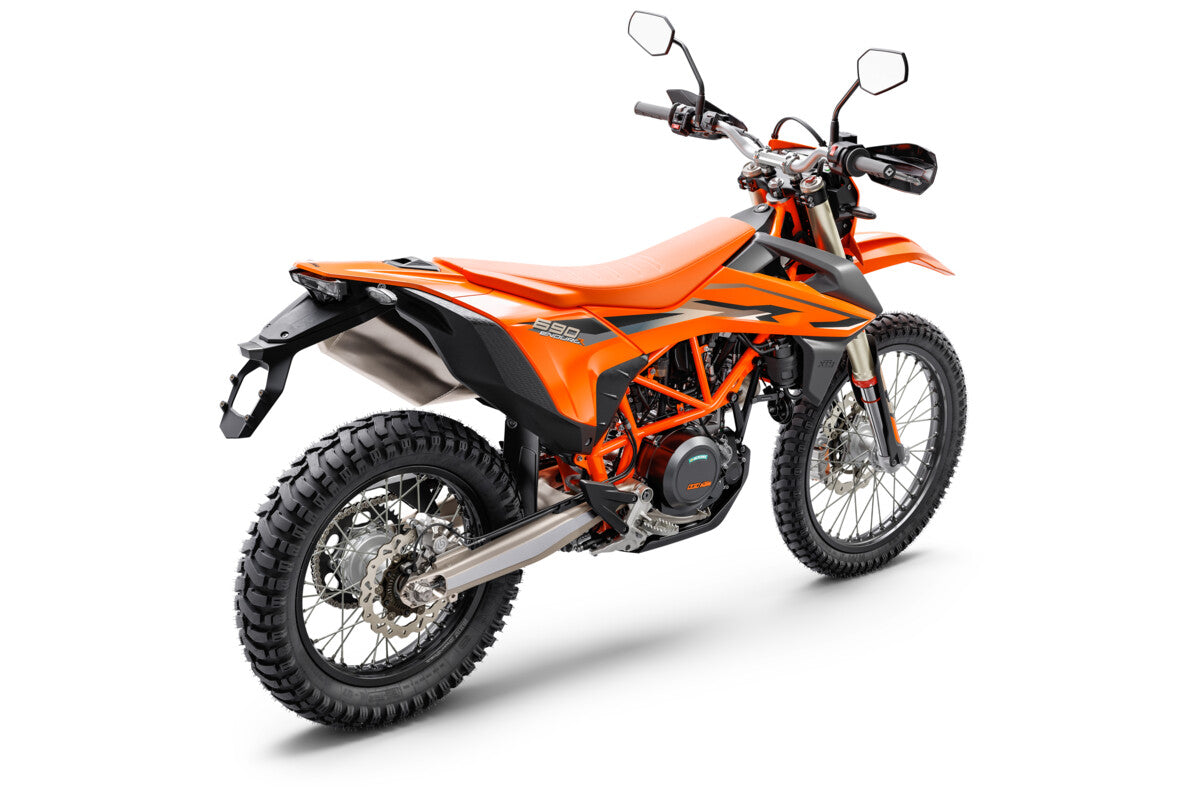

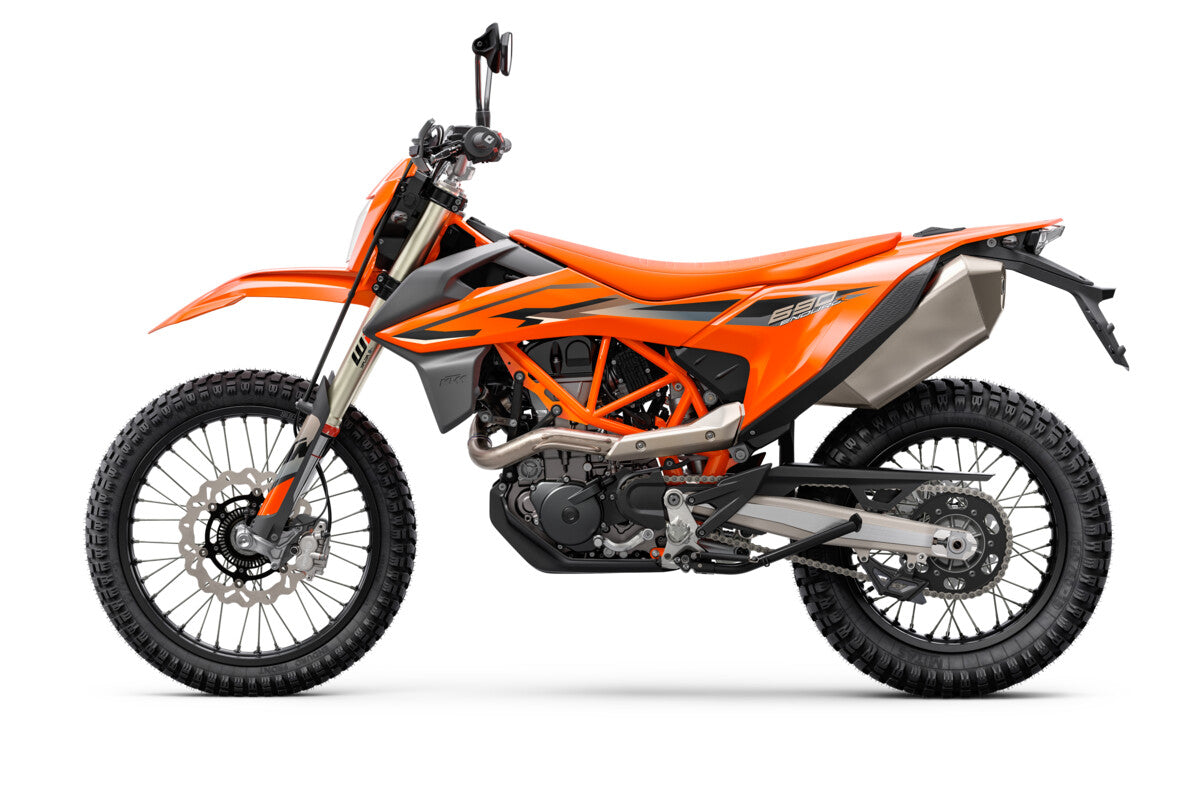

2024 KTM 690 Enduro R

2024 KTM 690 Enduro R

Conquer any terrain with the 2024 KTM 690 Enduro R, the ultimate dirt bike for riders who crave power, precision, and performance. With its lightweight chassis, race-proven WP XPLOR suspension, and legendary 690 LC4 engine, this bike blends off-road capability with street-legal versatility. Whether you're tearing through trails or cruising the backroads, the 690 Enduro R delivers unmatched agility and raw adventure.
Regular price $19,999.00 NZD
Regular price $22,299.00 NZD Sale price $19,999.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

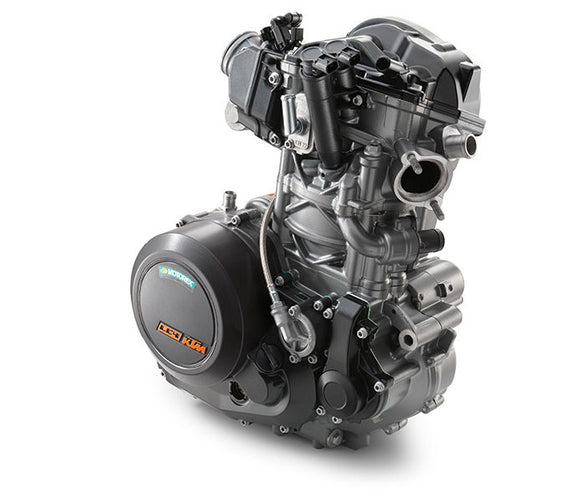

The 2024 690 Enduro R is driven by a 692.7 cc LC4 single-cylinder, 4-stroke engine that strikes a great balance between torque and rev-happy performance. It offers powerful low-end punch while still free revving when you open it up. The bike benefits from dual balancer shafts that reduce vibration, a lightweight forged piston and well-designed conrods to reduce reciprocating mass — all of which contribute to smoother running and sharper response. Ride-by-wire throttle, twin ignition (two spark plugs), and electronic fuel injection add to precise power delivery, reduced emissions, and better fuel economy. Service intervals are generous, helping lower running costs.

Feature Image 1
Feature Image 2

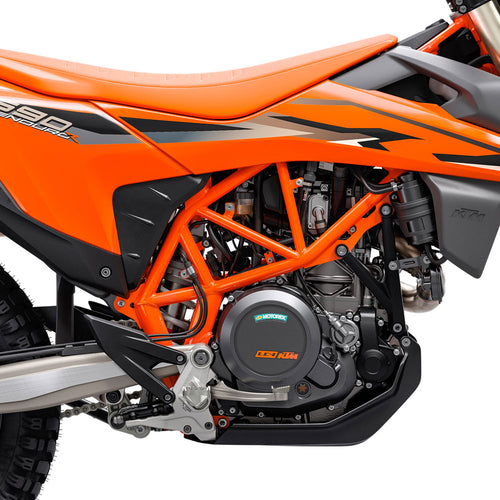

The 690 Enduro R features a rugged but agile chrome-moly tubular space frame, paired with a WP XPLOR 48 mm upside-down fork up front and a WP XPLOR rear shock via Pro-Lever linkage. Both ends offer long travel (~250 mm), giving it excellent bump absorption, ground clearance, and handling on rough terrain. Spoked wheels (21" front / 18" rear) with quality tires give both durability and grip across mixed surfaces. Brembo brakes (300 mm front / 240 mm rear discs) ensure strong stopping power. The chassis is tuned to balance off-road performance without losing control or feel on pavement.

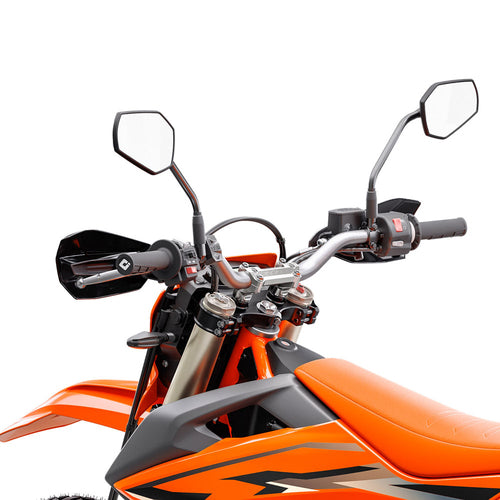

On the tech side, the 2024 690 Enduro R packs in ride-by-wire throttle control, selectable ride modes (Street and Off-road), ABS including Off-road ABS, and Motorcycle Traction Control (MTC) with lean-angle sensitivity. You can disable certain systems for more control when off-road. A slipper (Power Assist) clutch helps with smoother downshifts. Ergonomically, it offers a tall seat height (around 929 mm), “no-dirt” footpegs (designed not to accumulate debris), an under-seat airbox for easier access to the filter in the field, a slimline dashboard to keep visibility high, and tapered handlebars with some vibration isolation to reduce rider fatigue.

Feature Image 1
Technical Specifications - 2024 KTM 690 ENDURO R
Engine
Design 1-Cylinder, 4-Stroke Engine
Displacement 692.7 cm³
Torque 73.5 Nm
Transmission 6-Speed
CO₂ Emissions 99 g/km
Cooling Liquid-Cooled
EMS Keihin EMS with RBW, twin ignition
Engine Oil Motorex Power Synth SAE 10W-50
Engine Cylinder Single Cylinder
Drive Type Combustion
Chassis
Frame Design Chrome-moly tubular space frame, powder-coated
Rear Subframe / Tank Self-supporting plastic tank (integrated rear section)
Silencer Stainless steel primary and secondary silencer
Steering Head Angle 62.3°
Trail 120 mm
Chain 520 X-Ring
Suspension
Front Suspension WP XPLOR-USD, Ø 48 mm
Rear Suspension WP XPLOR with Pro-Lever Linkage
Suspension Travel (Front) 250 mm
Suspension Travel (Rear) 250 mm
Dimensions
Seat Height 929 mm
Tank Capacity (Approx.) 13.5 L
Ground Clearance 269 mm
Weight (Without Fuel) 149 kg
Wheelbase 1506 mm (±15 mm)
Wheels
Front Wheel 21" (1.85" width)
Rear Wheel 18" (2.50" width)
Wheel Type Spoked wheels with aluminum rims
