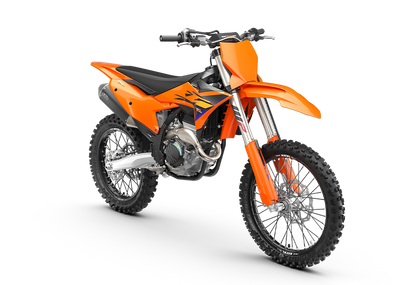

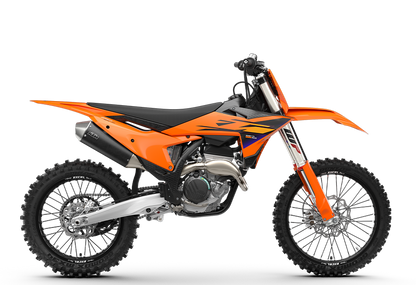

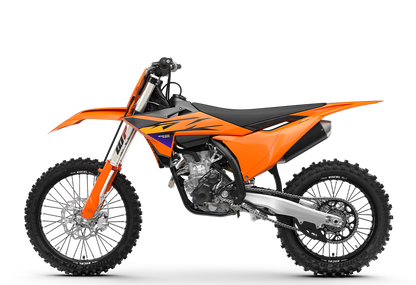

2026 KTM 250 SX-F

2026 KTM 250 SX-F

The 2026 KTM 250 SX-F is a lightweight, race-ready motocross bike built for precision and performance. Featuring a powerful 249.9 cc four-stroke engine, advanced WP XACT suspension, and a finely tuned steel chassis, it delivers sharp handling, strong acceleration, and confidence-inspiring control on every lap.
$16,499.00 NZD
$16,499.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Book a Test Ride Calculate Payments
View full details

The 2026 KTM 250 SX-F stands out for its precision-engineered 250 cc four-stroke engine, designed to deliver strong, usable power across the rev range without sacrificing control. The lightweight single-cylinder layout, advanced Keihin EFI with a 44 mm throttle body, and refined engine management system work together to provide crisp throttle response, efficient fuel delivery, and consistent performance in demanding race conditions. Paired with a smooth 5-speed transmission and Brembo hydraulic clutch, the bike offers confident acceleration and effortless power transfer out of corners.

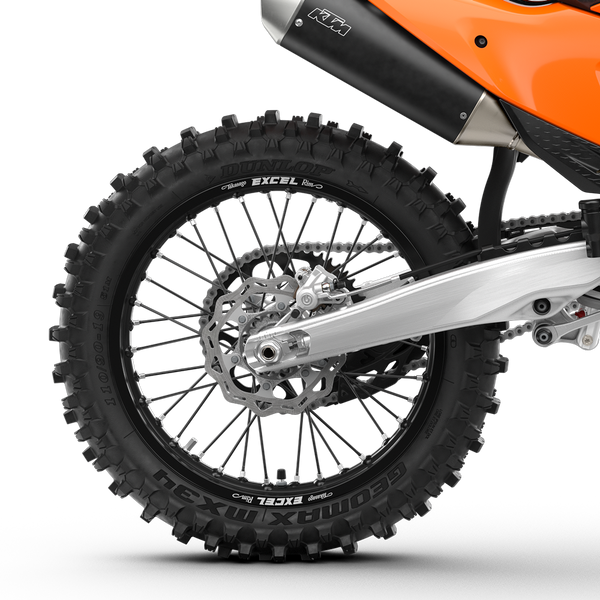

Feature Image 1
Feature Image 2

Chassis performance is another defining strength of the 250 SX-F. The central double-cradle 25CrMo4 steel frame is engineered for optimal flex characteristics, giving riders precise feedback and stability at speed. An aluminium-reinforced polyamide subframe keeps overall weight low while maintaining strength and durability. Combined with reliable disc brakes front and rear, the chassis delivers predictable handling, strong braking control, and the confidence needed to push hard on technical tracks.

Suspension is where the 250 SX-F truly shines in race environments. The WP XACT 48 mm AER front forks and WP XACT rear monoshock with linkage offer excellent bump absorption and balance, keeping the bike composed through ruts, jumps, and high-speed sections. With generous suspension travel and fully adjustable compression and rebound settings, riders can fine-tune the setup to suit track conditions and riding style. The result is a lightweight, agile motocross machine that feels planted, responsive, and ready to compete at a high level.

Feature Image 1


Specification Detail
Engine
Design 1-cylinder, 4-stroke engine
Displacement 249.9 cm³
Engine cylinder Single cylinder
Engine stroke 4-stroke
Transmission 5-speed
Fuel-mixture generation Keihin EFI, throttle body 44 mm
EMS Keihin EMS
Clutch Wet multi-disc clutch, Brembo hydraulics
Primary drive 24:72
Clutch primary drive teeth 72
Chassis
Frame design Central double-cradle-type 25CrMo4 steel
Rear subframe design Aluminum-reinforced polyamide
Front brake Disc brake
Rear brake Disc brake
Chain 520, non-sealed
Suspension
Front suspension WP XACT-USD (AER), 48 mm
Rear suspension WP XACT monoshock with linkage
Suspension travel (front) 310 mm
Suspension travel (rear) 300 mm
Front suspension adjustment Compression (high & low speed), rebound
Rear suspension setting Compression and rebound adjustable
Dimensions
Seat height 958 mm
Ground clearance 343 mm
Tank capacity (approx.) 7.2 L
Weight (without fuel) 101 kg
