2026 KTM 250 XC-W

2026 KTM 250 XC-W

The 2026 KTM 250 XC-W is built for riders who love exploring trails and off-road adventure. It’s a lightweight, fuel-injected 2-stroke bike that delivers smooth, reliable power and is easy to handle over rough ground. With high-quality WP suspension and a strong steel frame, it’s designed to take on everything from farm tracks to forest trails with confidence and control.
$16,499.00 NZD
$16,499.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Book a Test Ride Calculate Payments
View full details

Powered by a 249 cc single-cylinder 2-stroke engine with Keihin EFI and a 6-speed gearbox, the 250 XC-W delivers strong, responsive power with exceptional reliability. The Vitesco EMS system ensures smooth throttle control and efficient performance on any trail.

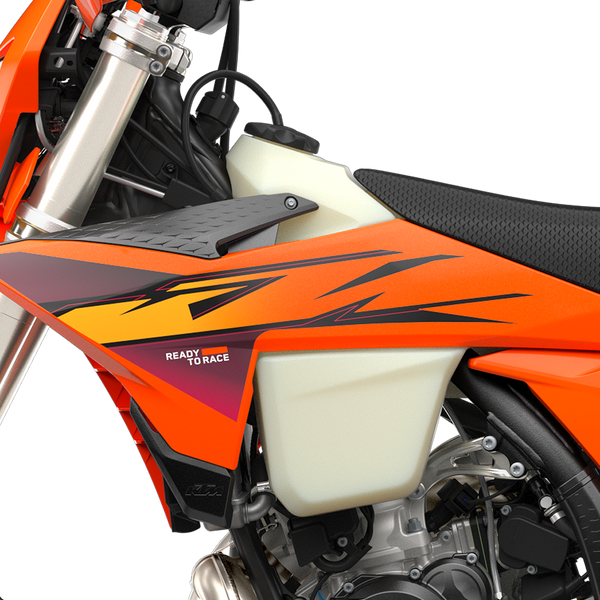

Feature Image 1

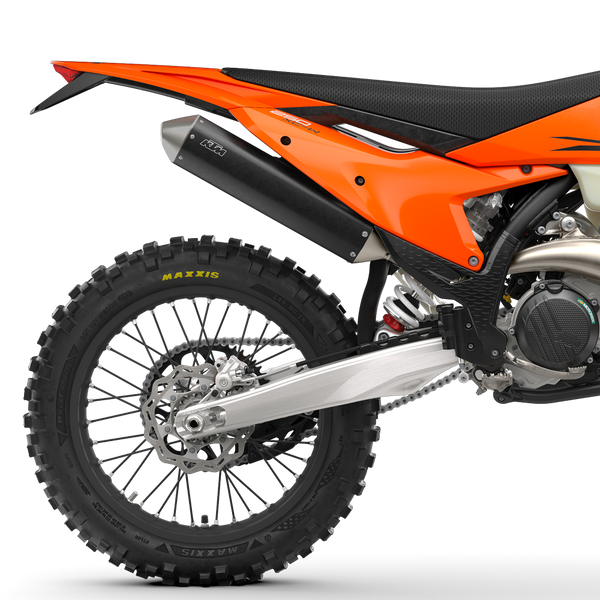

Feature Image 2

A 25CrMo4 steel double-cradle frame and WP XACT 48 mm front forks combine with a WP XPLOR rear shock for unmatched stability and comfort. With 300 mm front and 310 mm rear suspension travel, fully adjustable compression and rebound settings, and a preload adjuster, it’s built to handle any obstacle.

At just 104.4 kg and equipped with a 9 L tank, the 250 XC-W balances agility with endurance. Its polyamide-reinforced subframe, X-ring chain, and Brembo hydraulic clutch provide durability and smooth operation across long rides.

Feature Image 1
KTM 250 XC-W (2026) — Specifications
Specification Detail
Engine
Design 1-cylinder, 2-stroke engine
Displacement 249 cm³
Transmission 6-speed
Fuel System Keihin EFI, 39 mm throttle body
EMS Vitesco Technologies EMS
Clutch Primary Drive Teeth 72
Primary Drive 26:72
Clutch Wet DDS multi-disc clutch, Brembo hydraulics
Engine Cylinder Single cylinder
Engine Stroke 2-stroke
Chassis
Frame Design Central double-cradle-type 25CrMo4 steel
Front Brake Disc brake
Rear Brake Disc brake
Rear Subframe Design Aluminum-reinforced polyamide
Chain 520 X-ring
Suspension
Front Suspension WP XACT-USD, Ø 48 mm
Rear Suspension WP XPLOR shock absorber with PDS
Suspension Travel (Front) 300 mm
Suspension Travel (Rear) 310 mm
Front Suspension Adjustment Compression and rebound adjustable
Rear Suspension Setting Compression and rebound adjustable
Rear Suspension Addition Preload adjuster
Dimensions
Seat Height 963 mm
Ground Clearance 347 mm
Tank Capacity (Approx.) 9 L
Weight (Without Fuel) 104.4 kg
