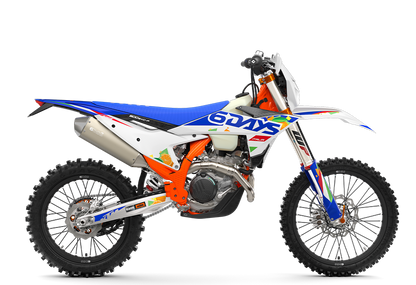

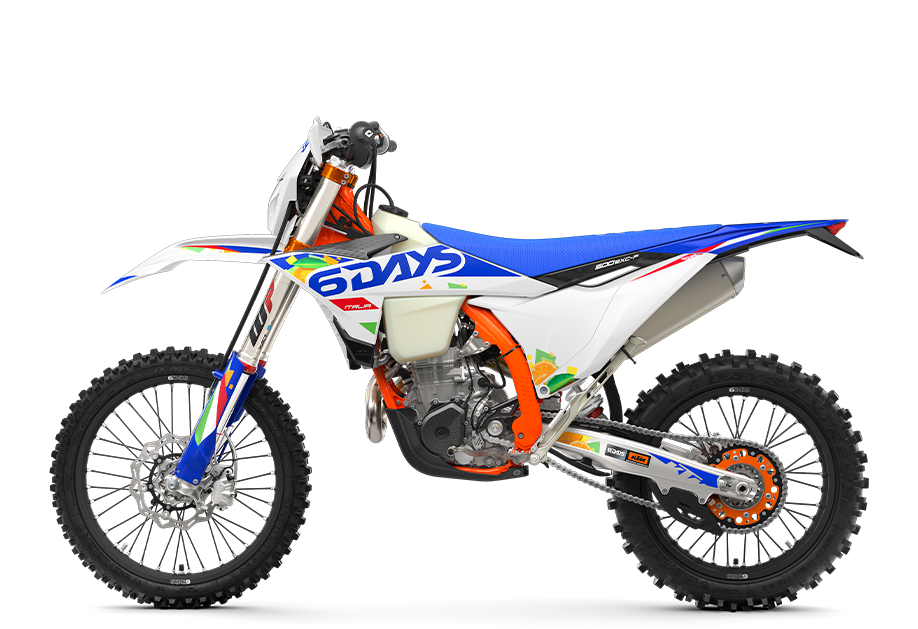

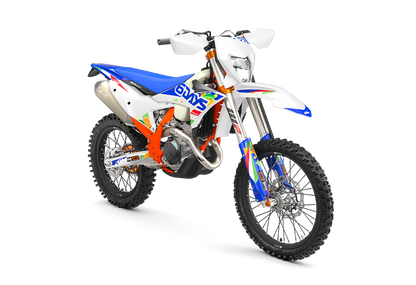

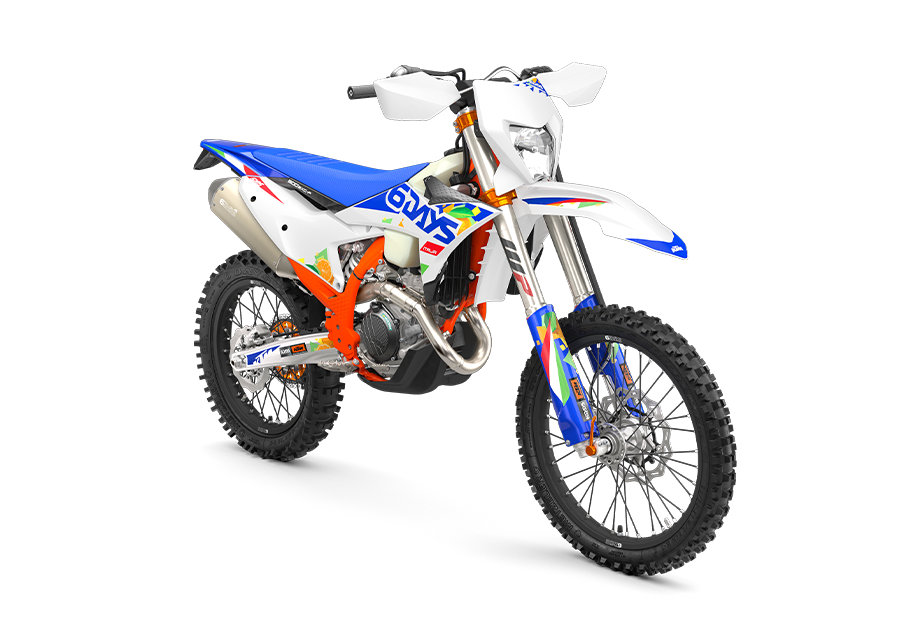

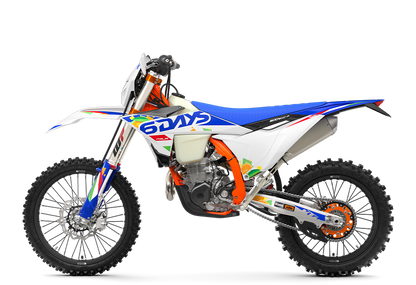

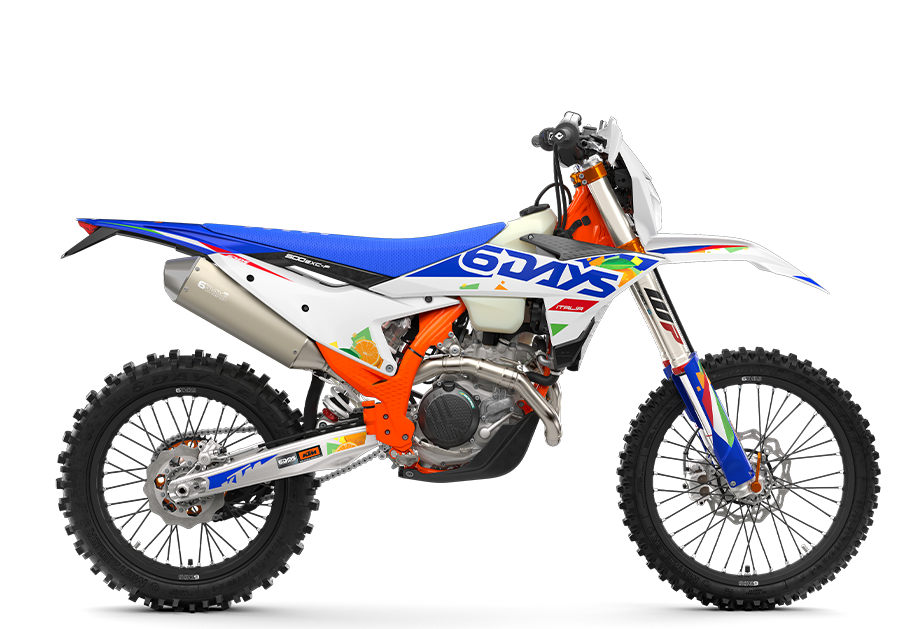

| 2026 KTM 500 EXC-F SIX DAYS Specifications | |
|---|---|
| Specification | Detail |

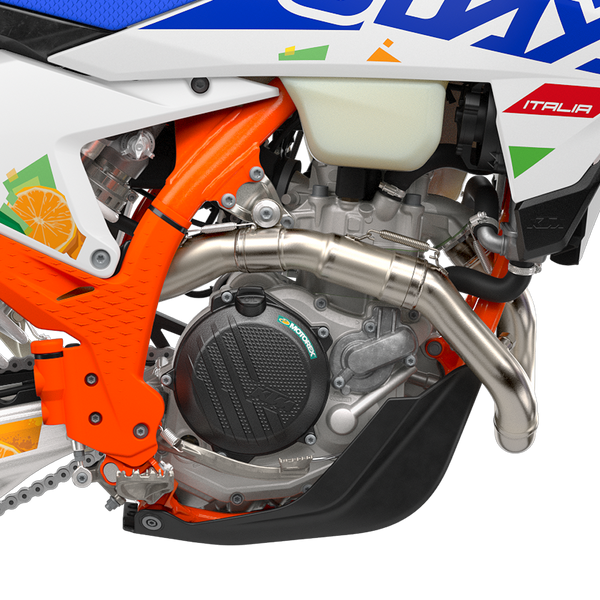

| Engine | |
| Engine Type | 1-cylinder, 4-stroke |
| Displacement | 510.9 cc |
| Transmission | 6-speed |
| Fuel System | Keihin EFI (42 mm throttle body) |
| Engine Management | Keihin EMS |
| Clutch | Wet DDS multi-disc, Brembo hydraulics |
| Primary Drive | 29:72 |
| Chassis | |
| Frame | Central double-cradle 25CrMo4 steel |
| Subframe | Aluminium-reinforced polyamide |
| Chain | 520 X-ring |
| Front Brake | Disc brake |
| Rear Brake | Disc brake |
| Suspension | |
| Front Suspension | WP XACT USD Ø48 mm |

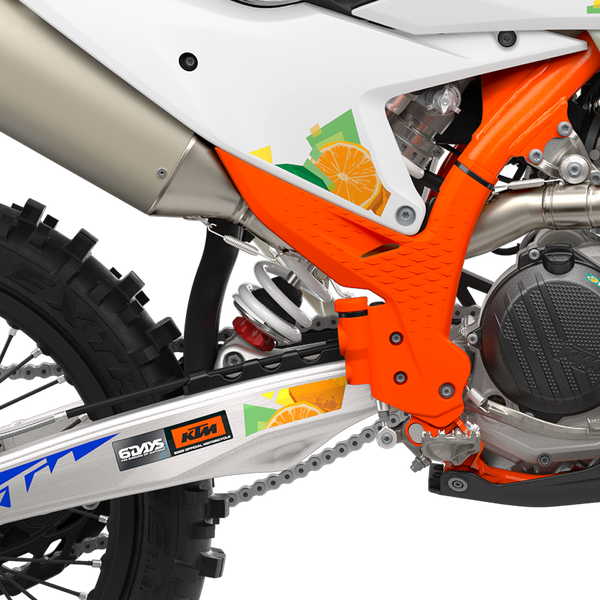

| Rear Suspension | WP XPLOR PDS shock |
| Front Travel | 300 mm |
| Rear Travel | 310 mm |
| Adjustability | Compression & rebound adjustable (front & rear) |
| Dimensions | |
| Seat Height | 963 mm |
| Ground Clearance | 347 mm |

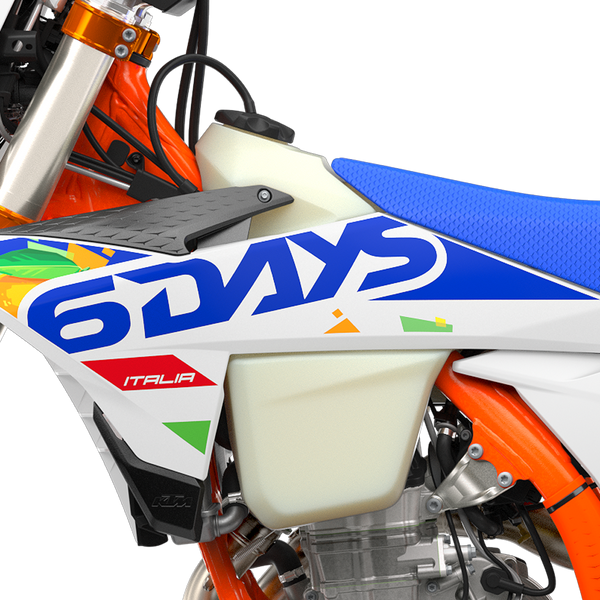

| Fuel Tank Capacity | 8.5 L (approx.) |
| Weight (without fuel) | 108.7 kg |
