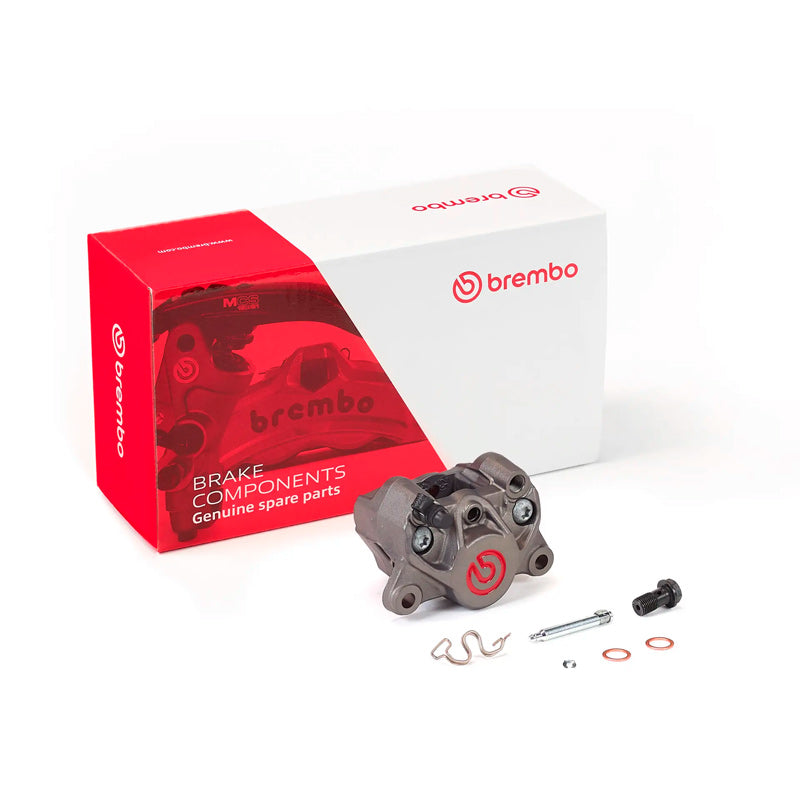

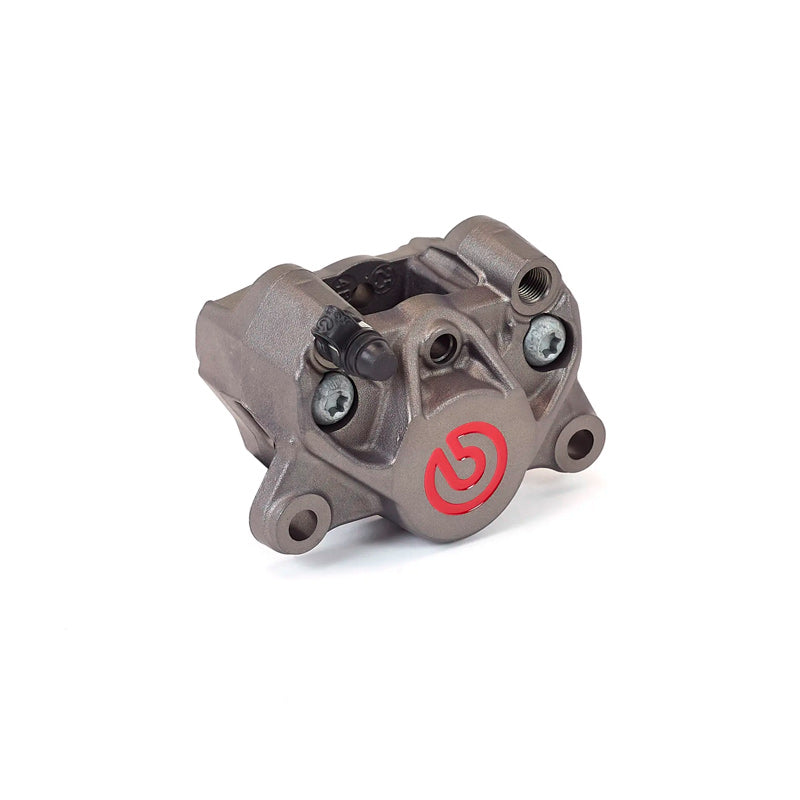

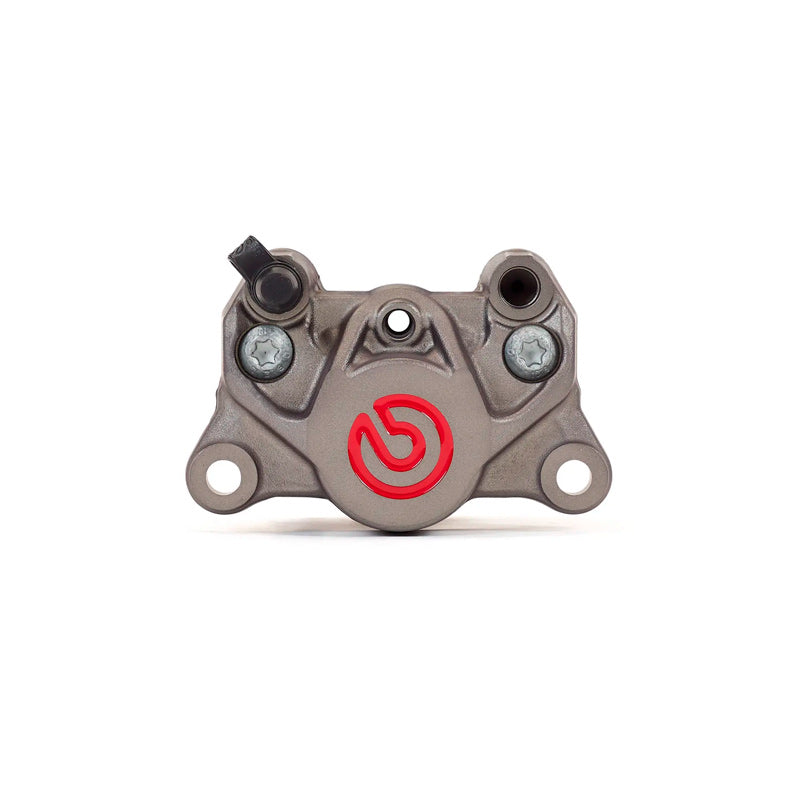

Rear brake caliper - 920F08103 (P2.34) Left

The Brembo P2.34 is a compact two piston caliper designed to provide smooth, precise and easily controlled braking. Its twin 34 mm aluminium pistons deliver excellent braking modulation, while the compact cast aluminium body allows it to be used across a variety of compatible motorcycle braking applications.

Part of Brembo’s Xtra range, the P2.34 combines the quality, reliability and performance expected from Brembo with distinctive finishes and styling for riders looking to personalise their braking system. This version features a durable titanium anodised finish with a contrasting red Brembo logo.

The 920F08103 is the left hand version, with an 84 mm mounting centre and a weight of 730 g without pads. The corresponding right hand caliper is 920F08104.

See here for assembly instructions: bremboparts.com/fitting-instructions

Technical specifications:

• Interaxle Spacing: 84mm
• Number of pistons: 2 pistons
• Surface width: 35mm
• Piston diameter: 34mm
• Pads included: No
• Material: Aluminium
• Finish: Titanium
• Piston material: Aluminium
• Weight: 730g
• Machining: Cast
