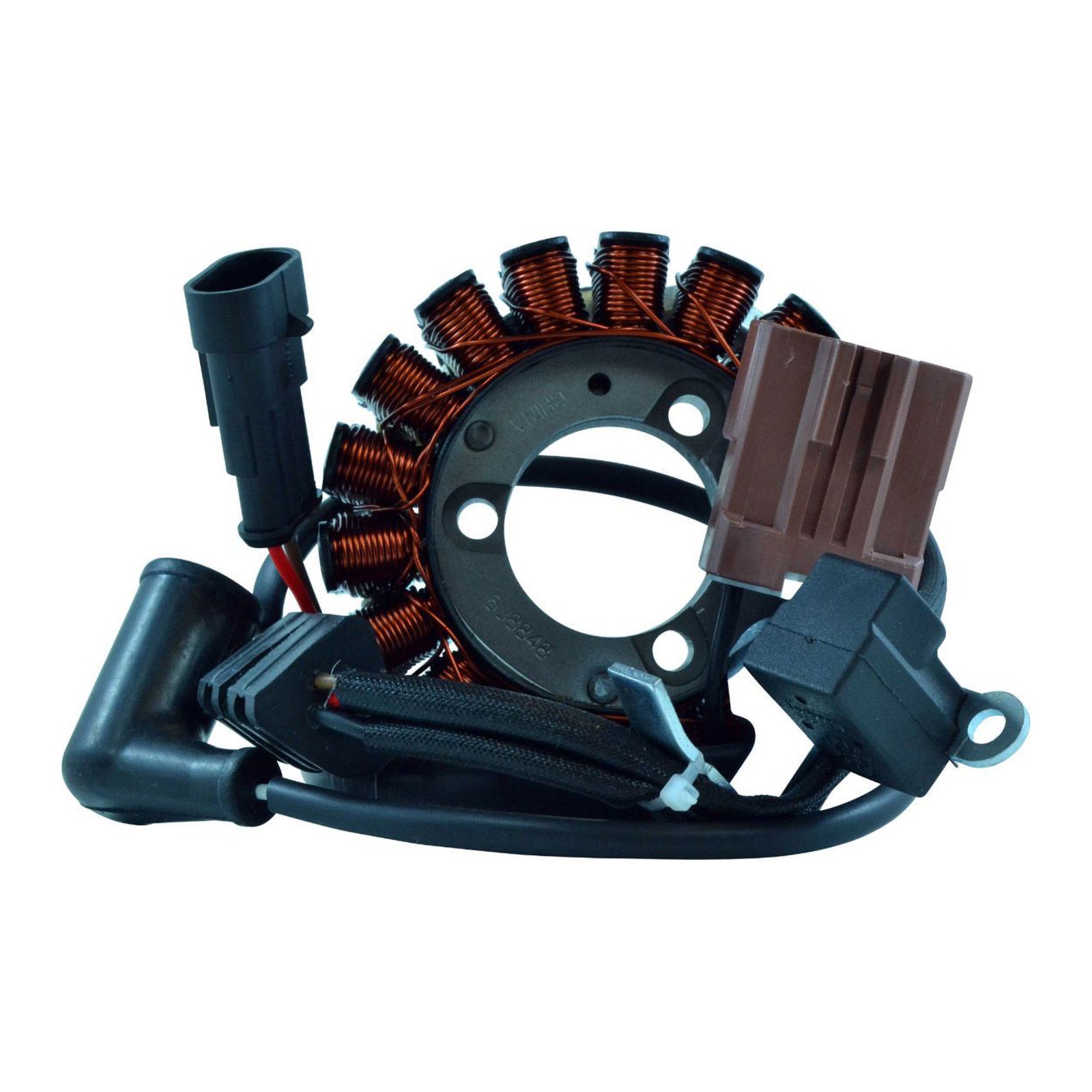

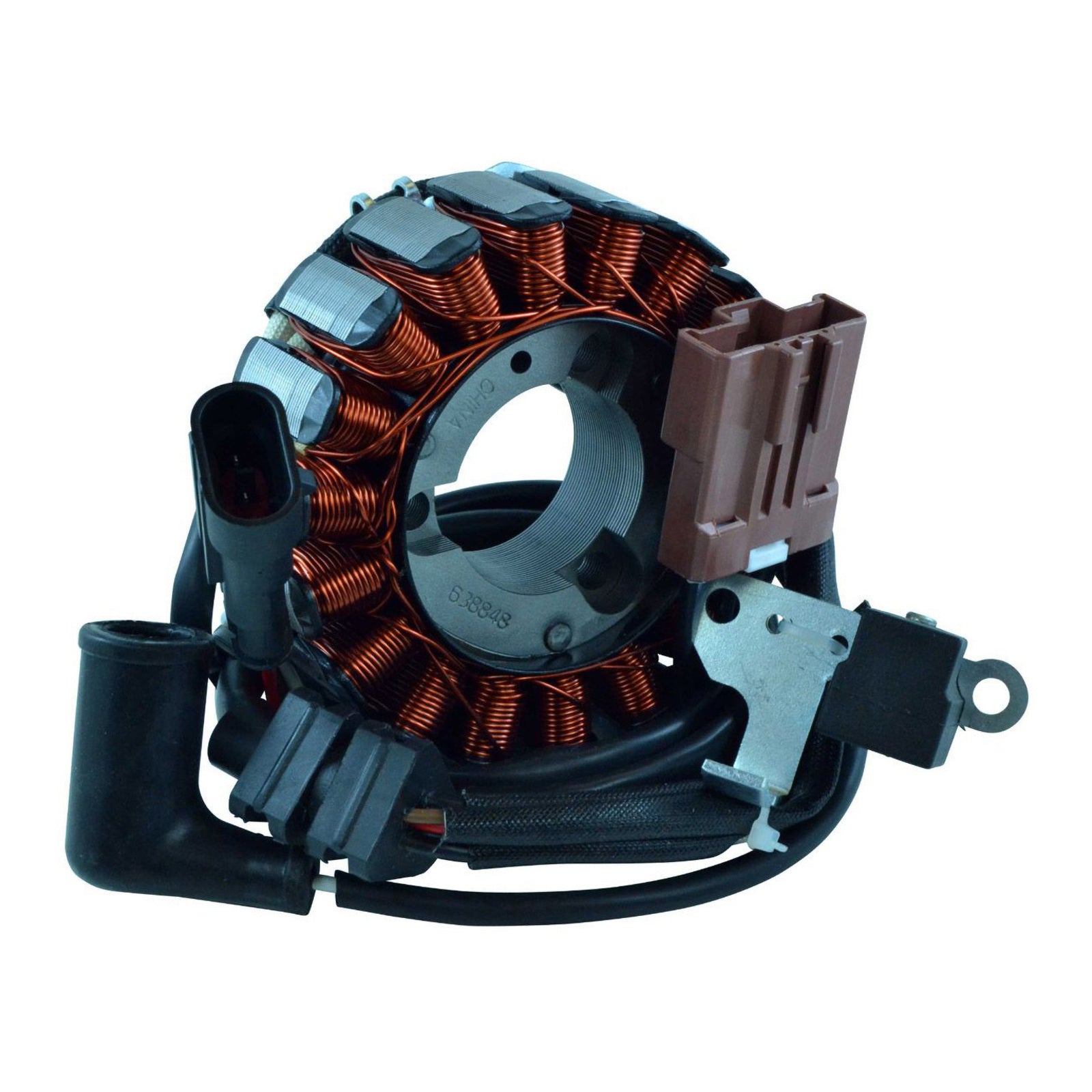

Stator Assorted Scooters '03-'17 (RMS010-104193)

Brand new aftermarket generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick-up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

Dimensions:

• Interior diameter: 36 mm
• Exterior diameter: 95 mm
• Thickness: 32 mm
• Length of wires stator to grommet: 165 mm
• Length of wires grommet to plug: 585 mm / 780 mm
• Length of pickup coil's wire to grommet: 88 mm

Other specifications:

• Number of wires: 6
• Number of plugs : 3
• Number of pins: 6
• Number of poles: 18

Wire to wire resistance:

• Alternator: Yellow between each Yellow = 0.4 ohms +-20%
• Pickup: Green/White to Yellow/White = 125 ohms +-20%
• Source: Black/Red to Ground = 210 ohms +-20%
