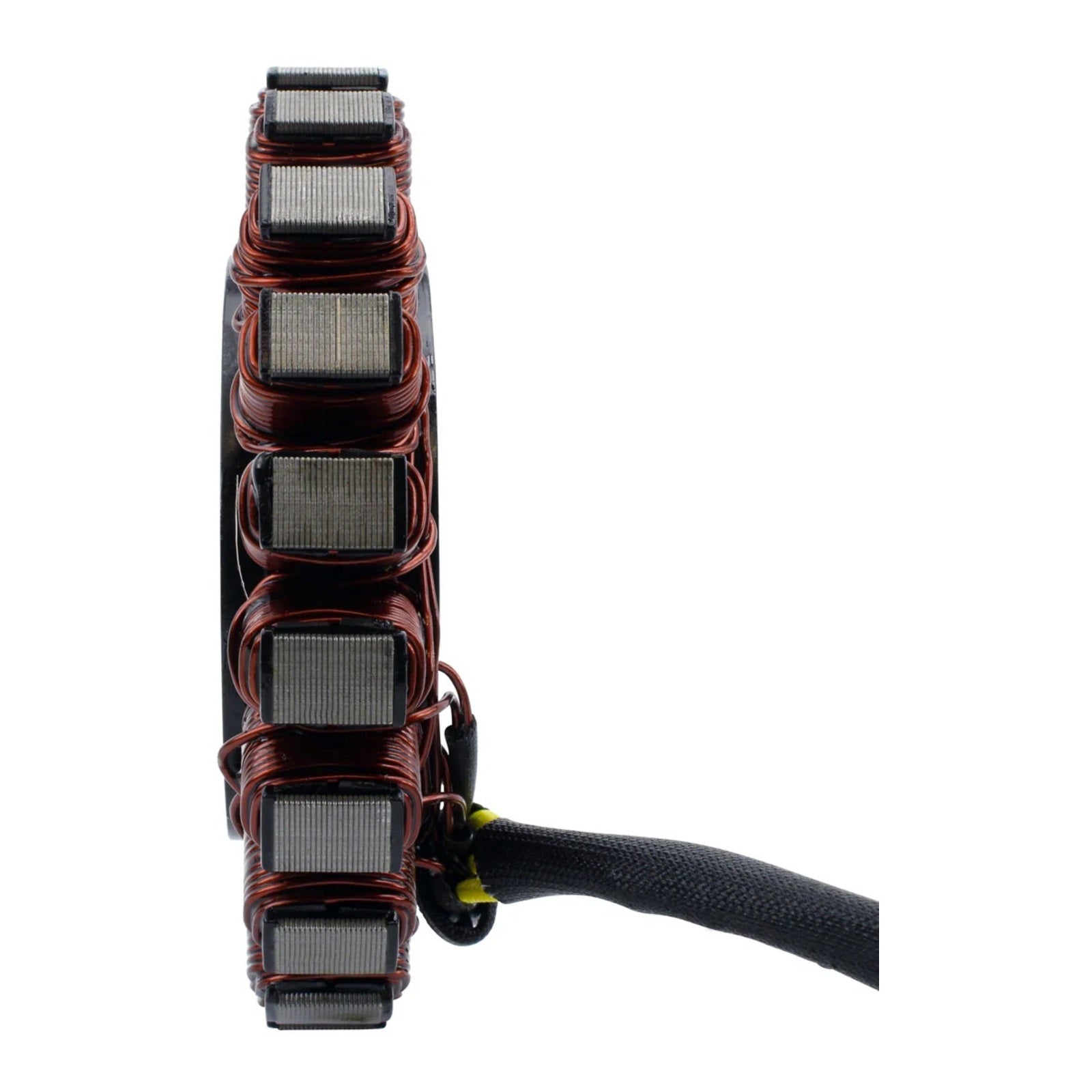

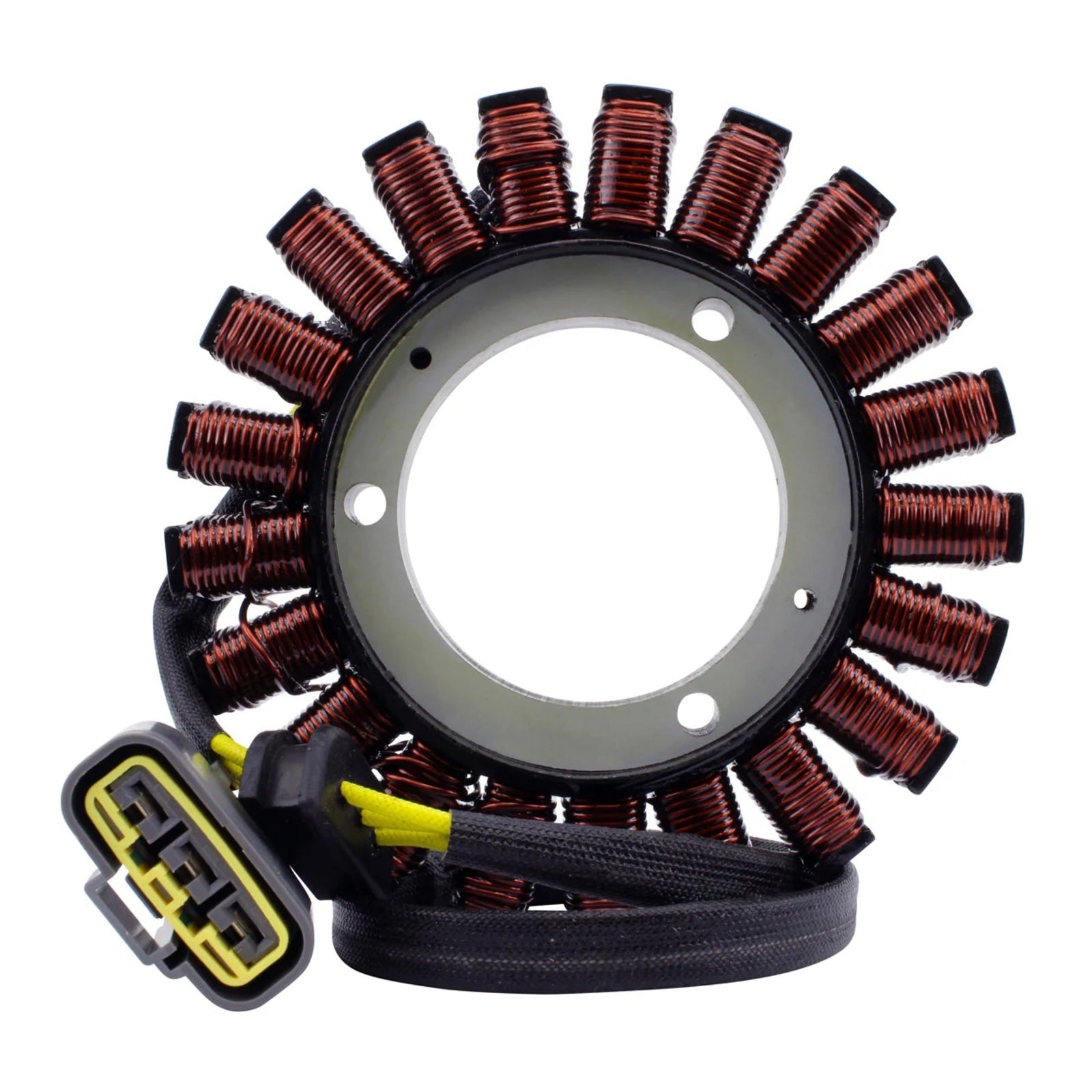

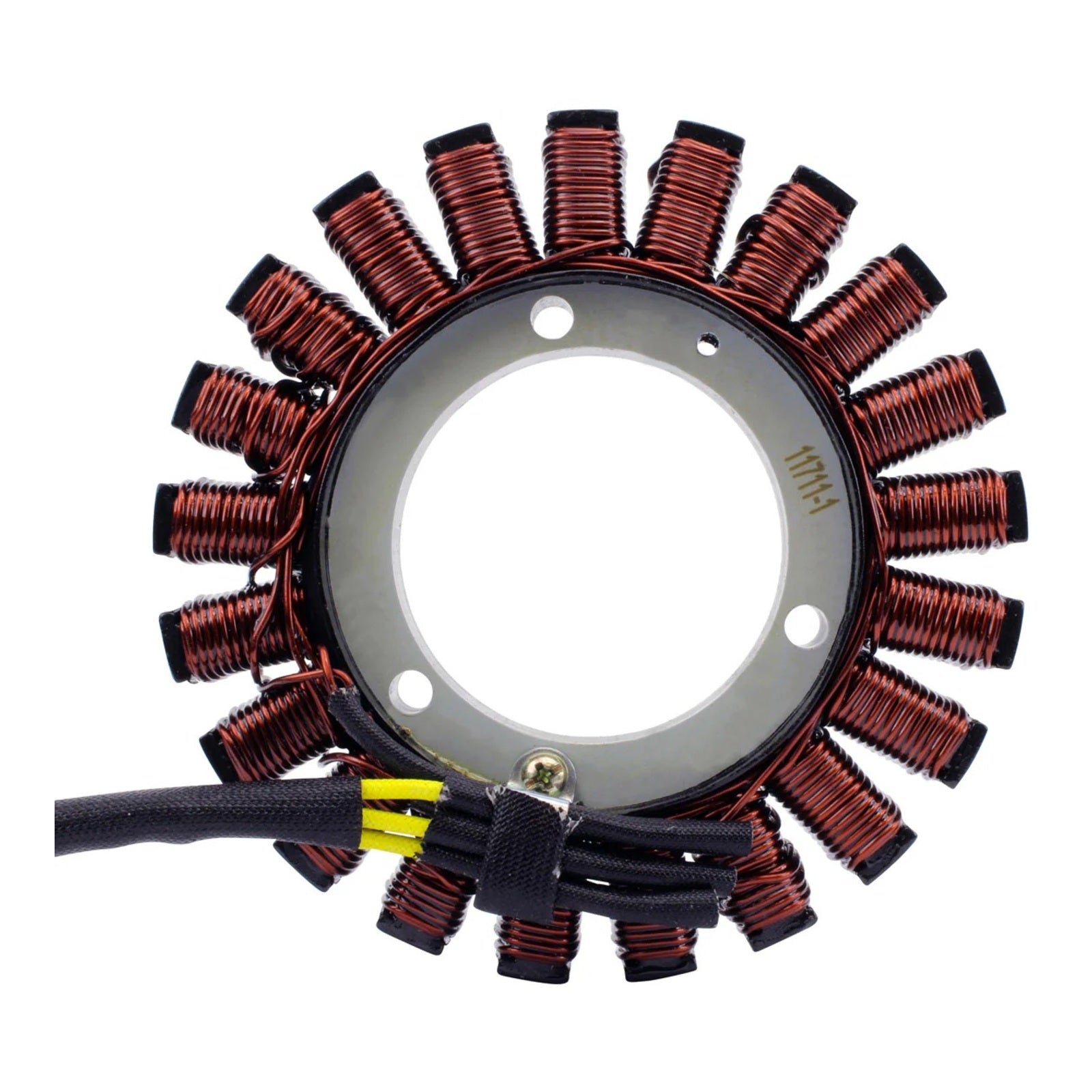

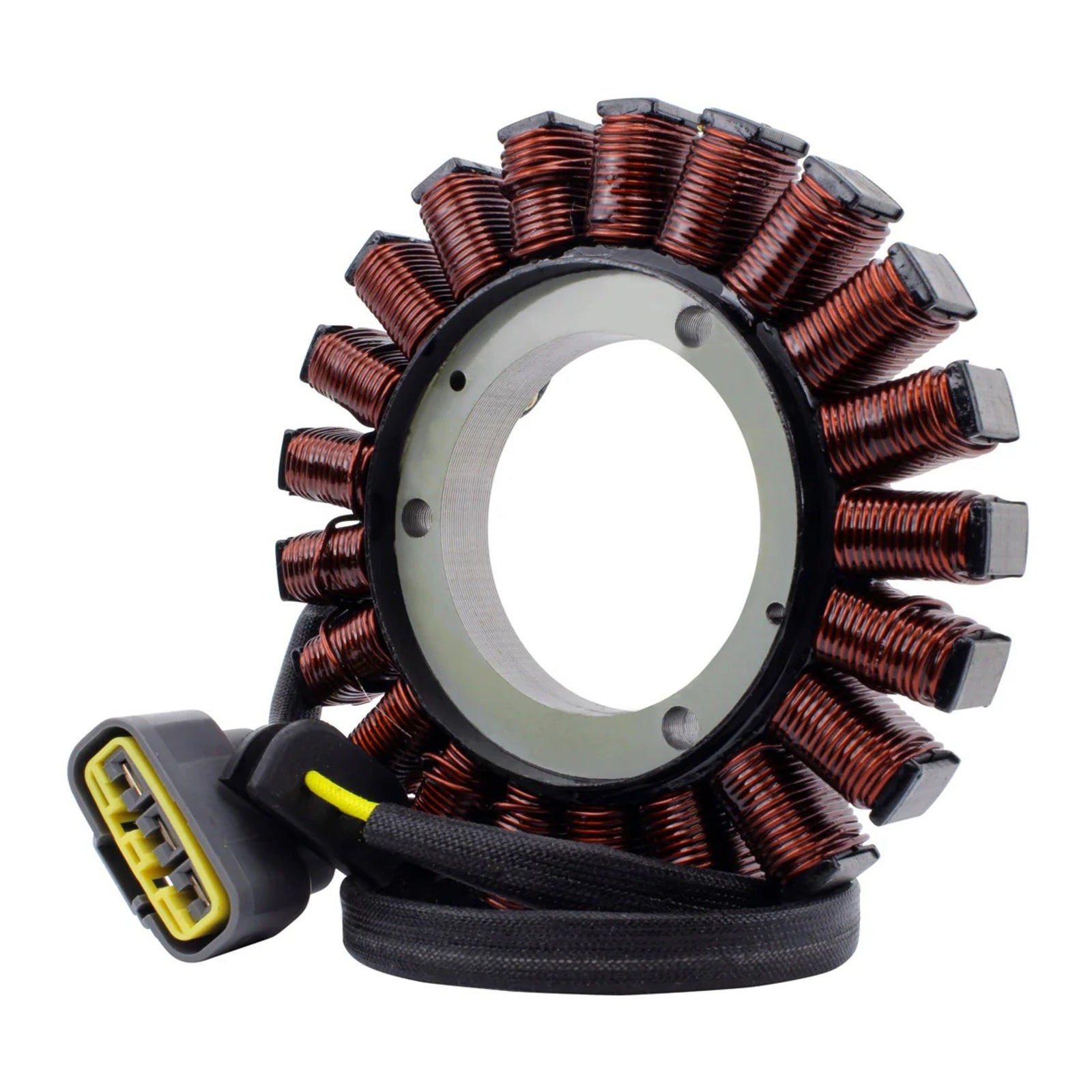

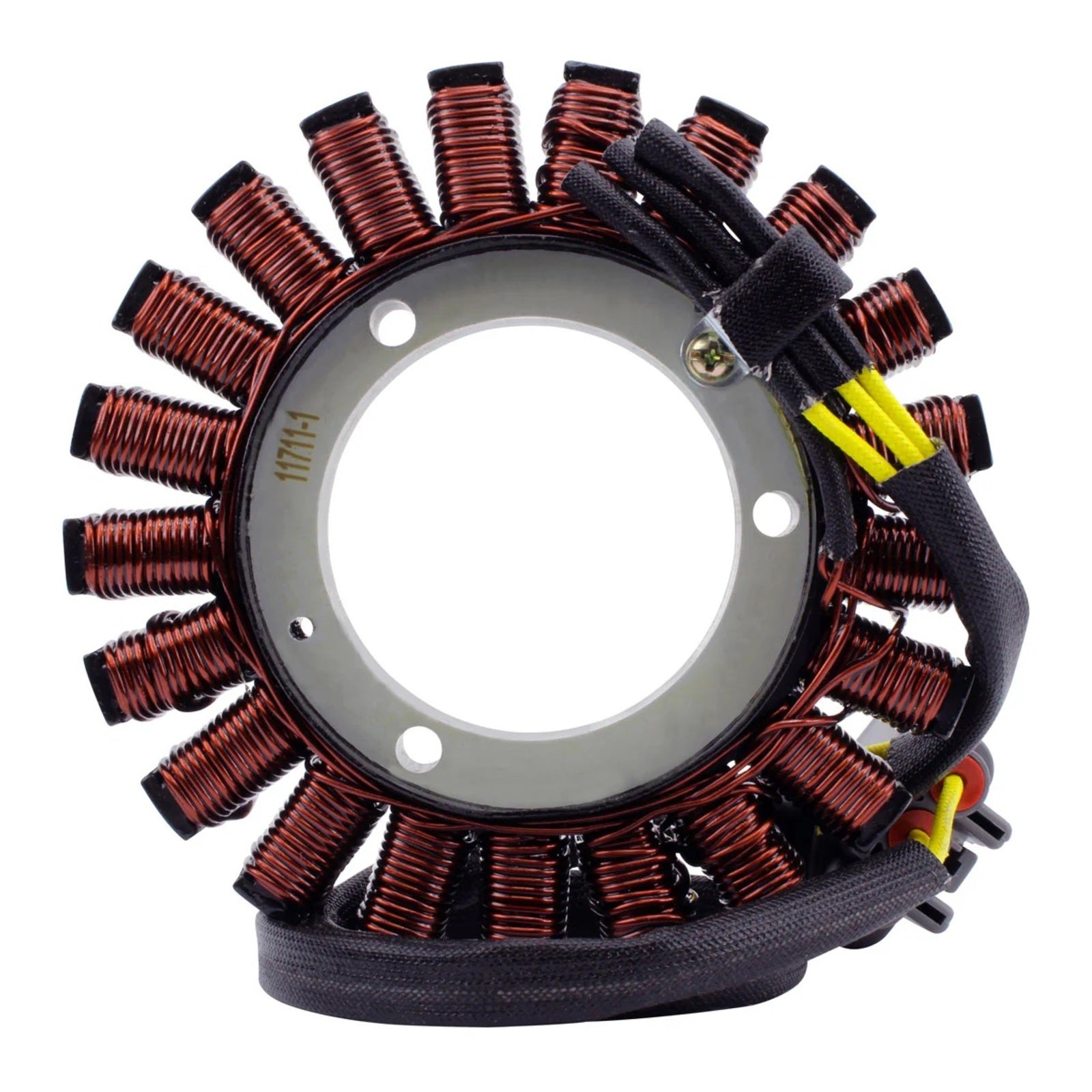

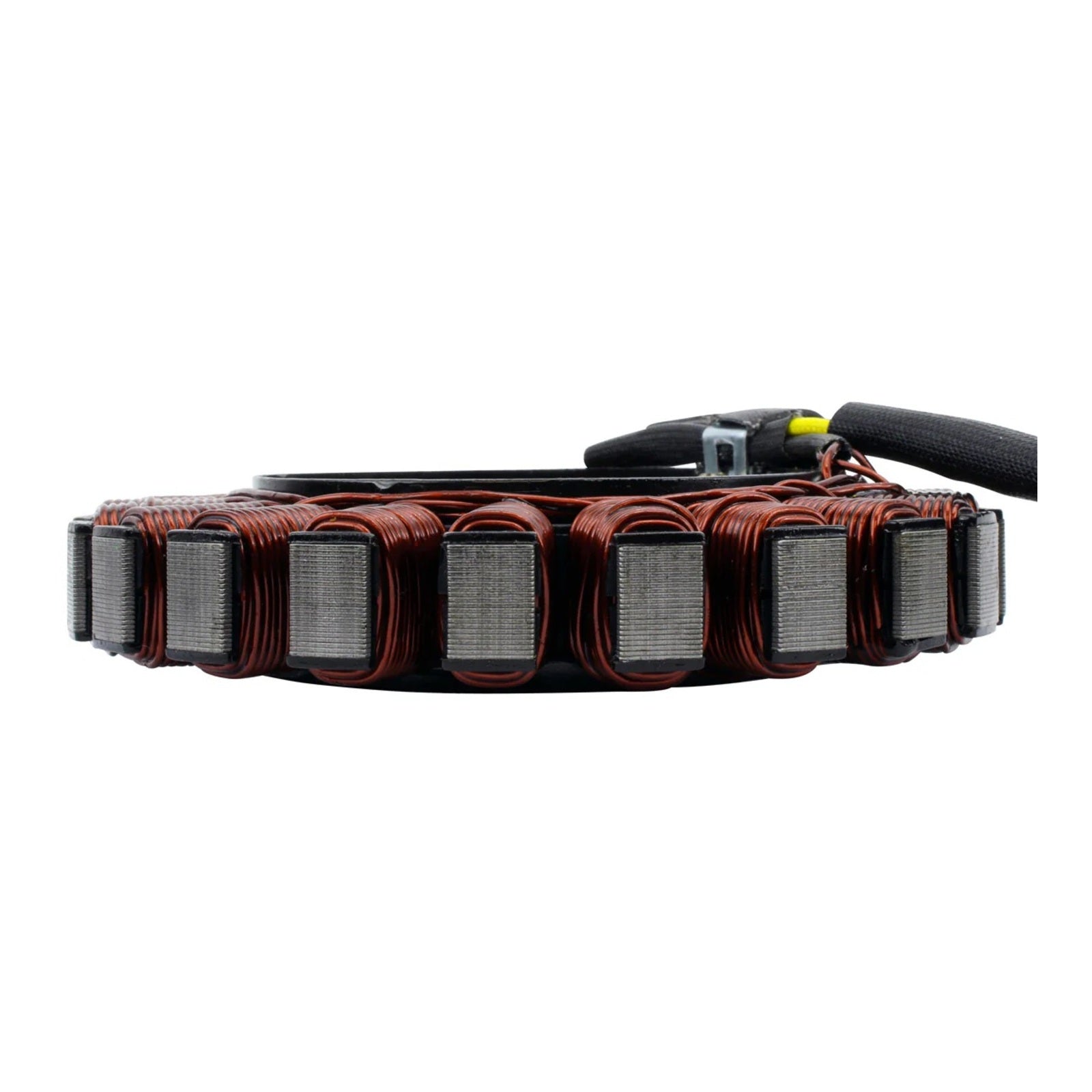

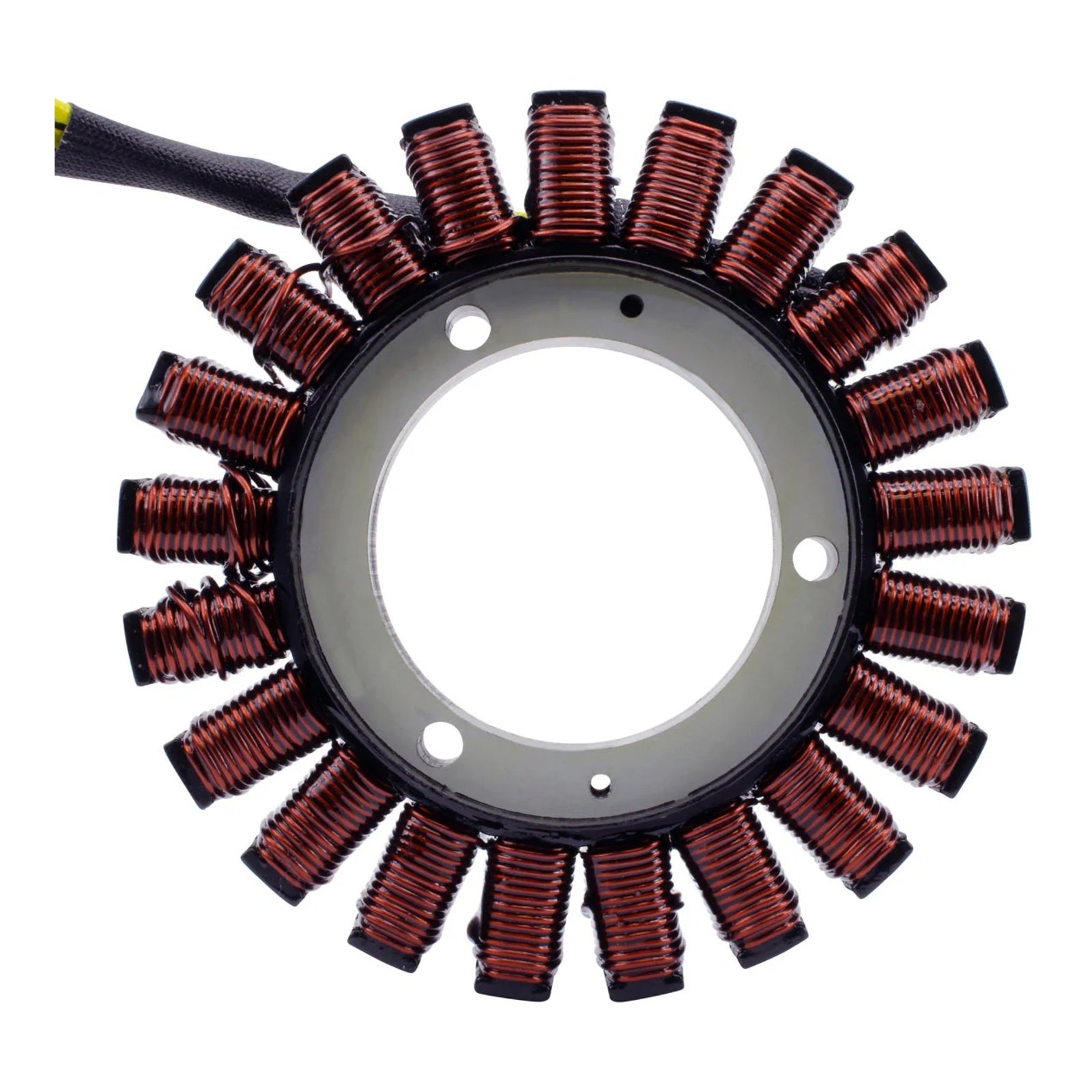

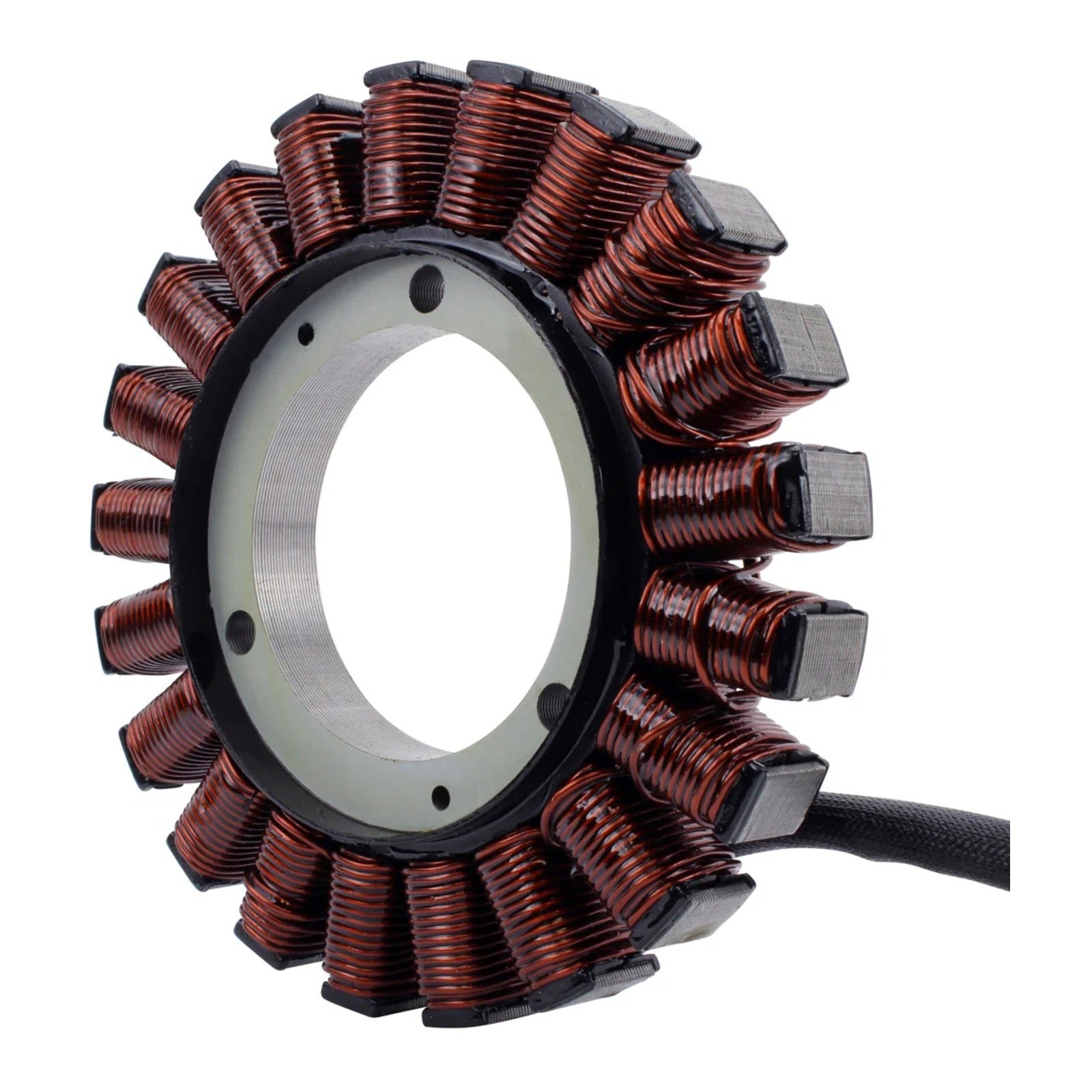

Stator BMW R1200 Models '12-'18 (RMS010-105024)
Stator BMW R1200 Models '12-'18 (RMS010-105024)
RMSTATOR
Brand new aftermarket stator.
- Direct replacement to the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.

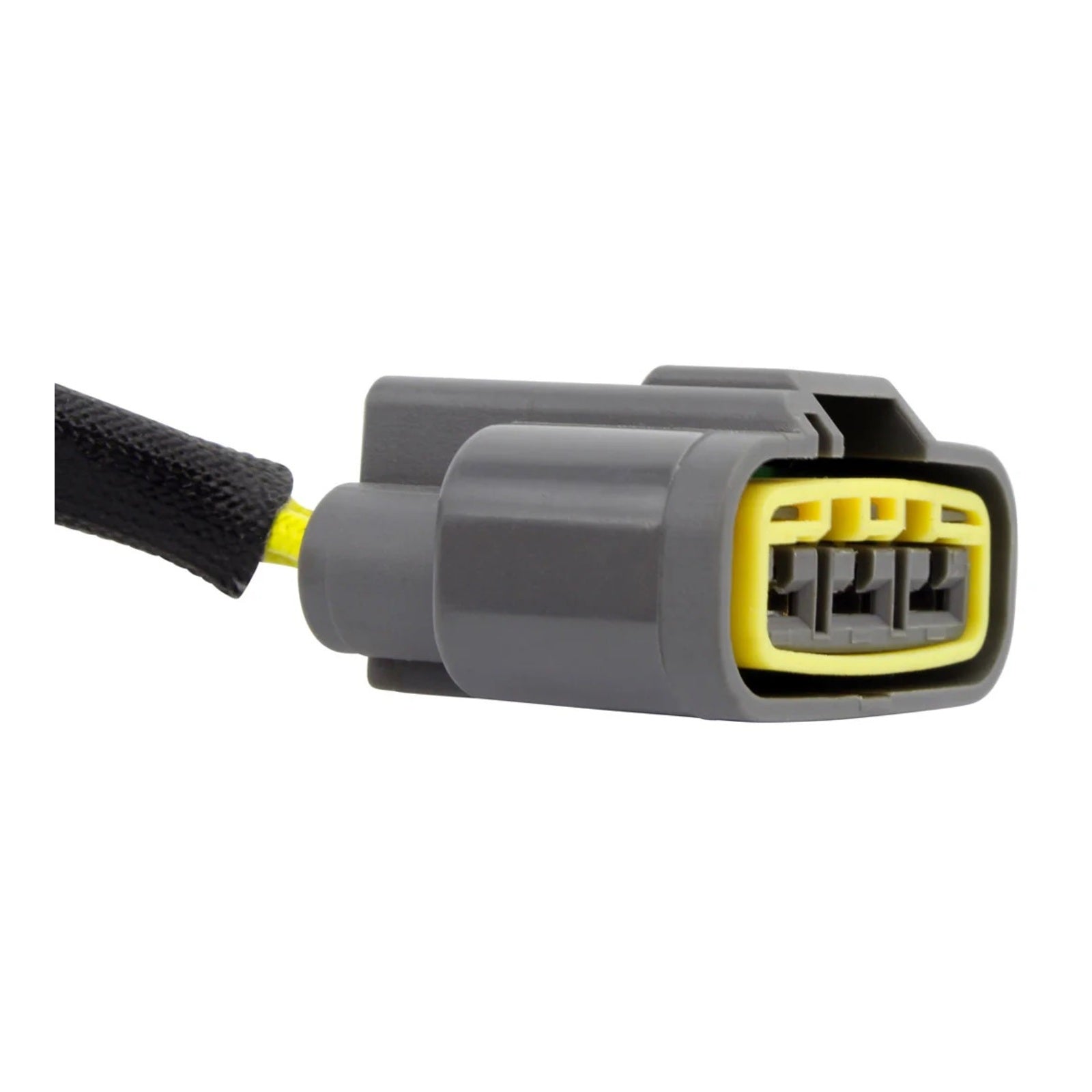

- Connectors included

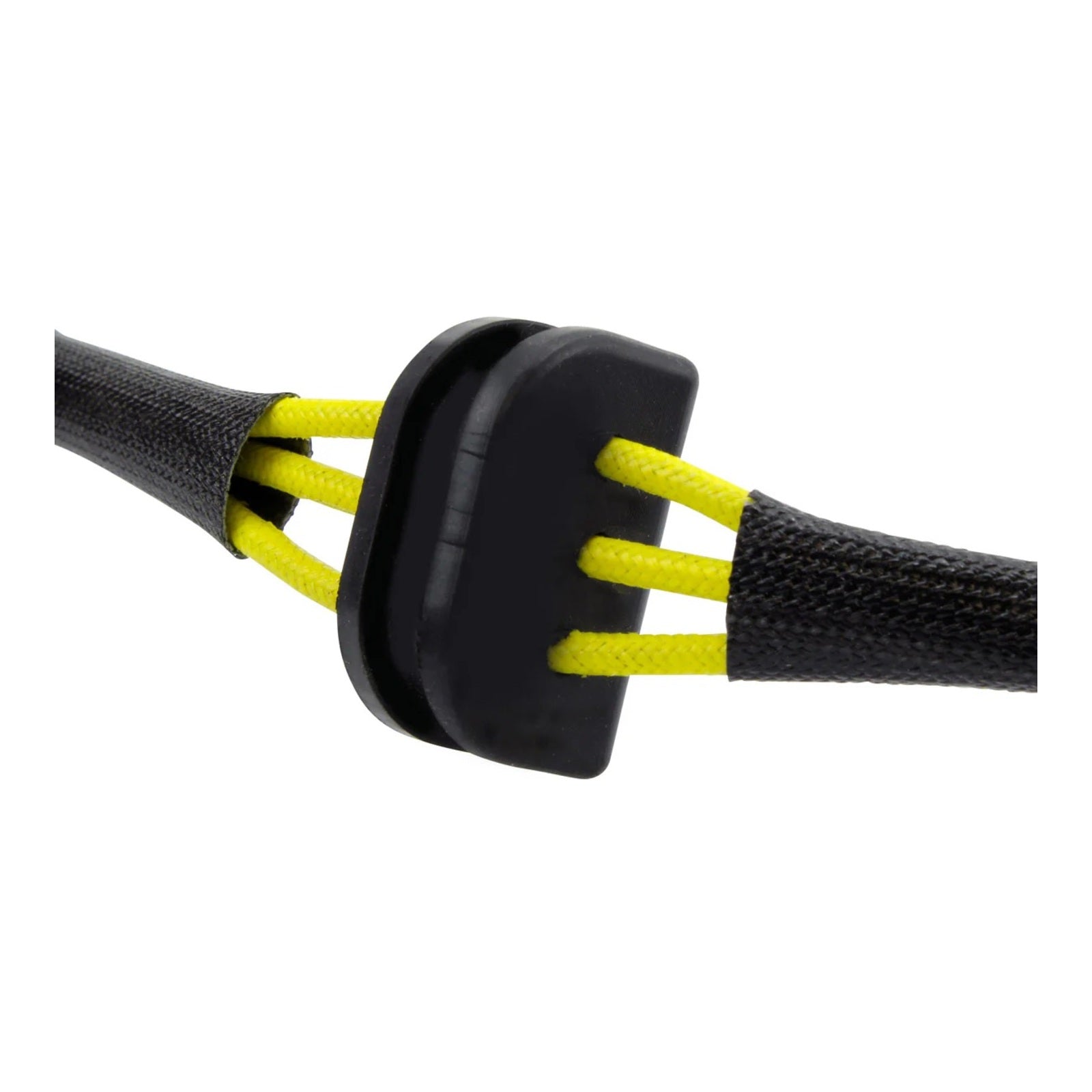

- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.
Before Installing the New Stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
The stator may use a different wire colThe code than the original. All the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Interior diameter: 60 mm
- Exterior diameter: 133 mm
- Thickness: 18 mm
- Length of wires stator to grommet: 68 mm
- Length of wires grommet to plug: 470 mm
Other Specifications:
- Number of wires: 3

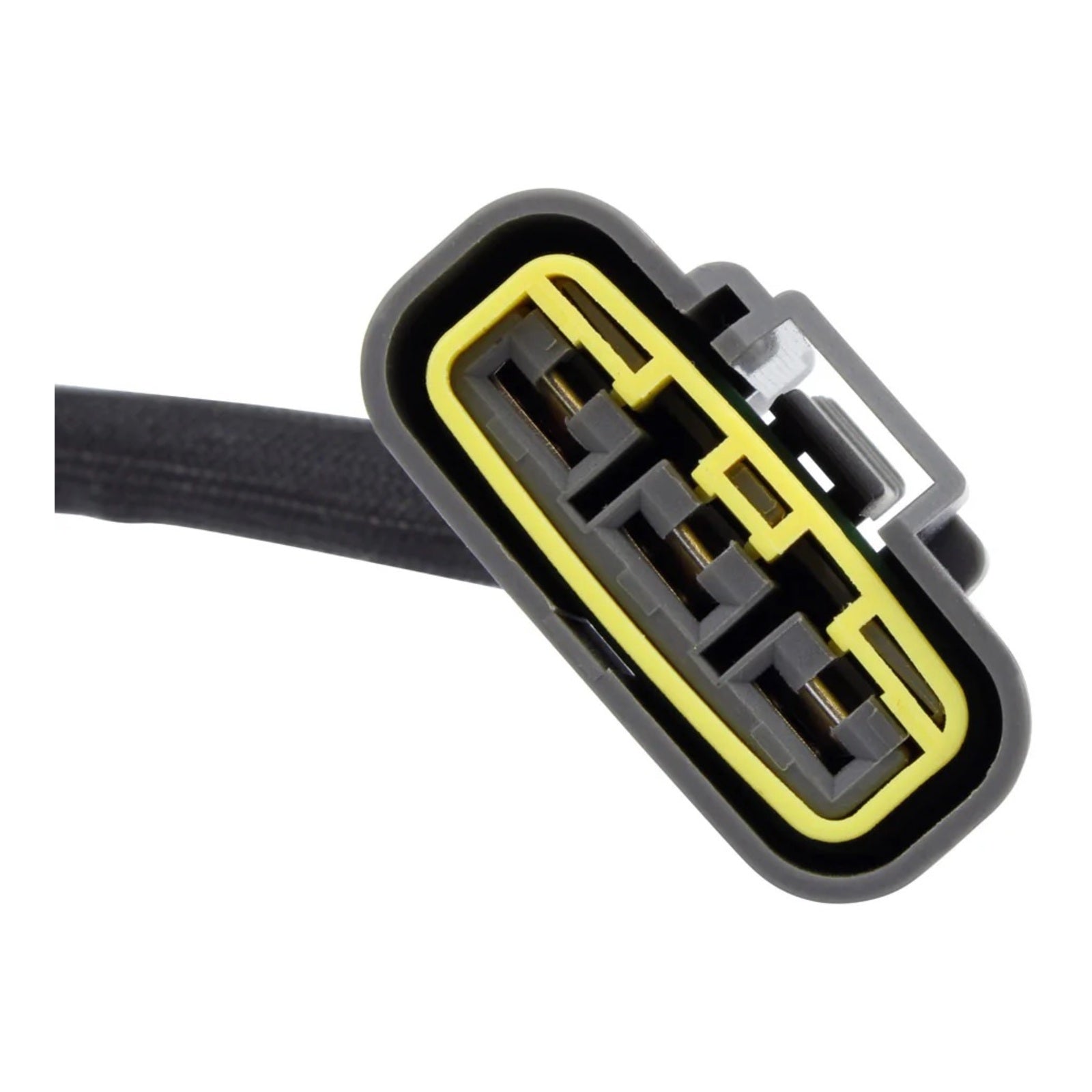

- Number of plugs: 1
- Number of pins: 3
- Number of poles: 21
- Wire to wire resistance:
- Alternator 3P: Between each Yellow = 0.4 ohms ±20%
