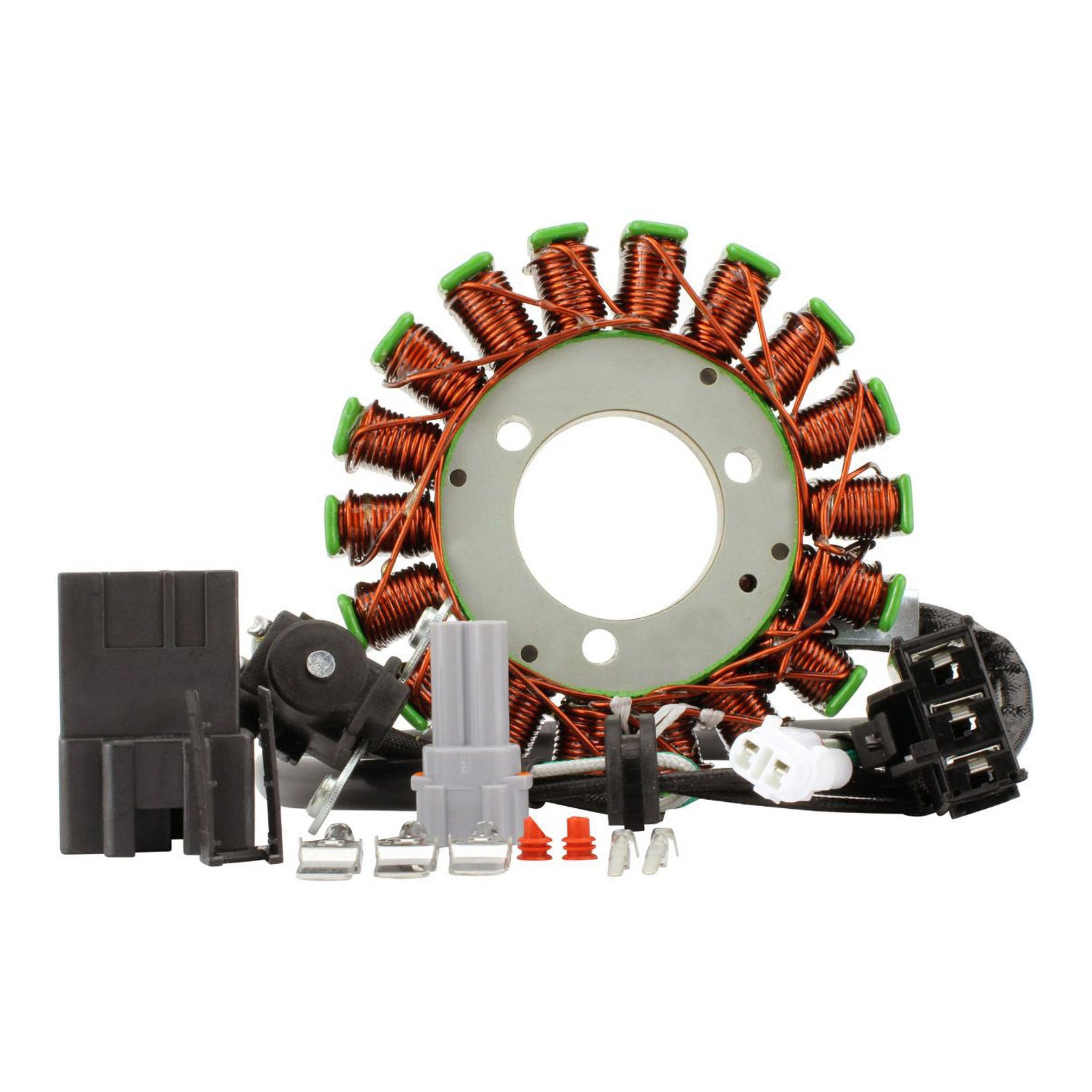

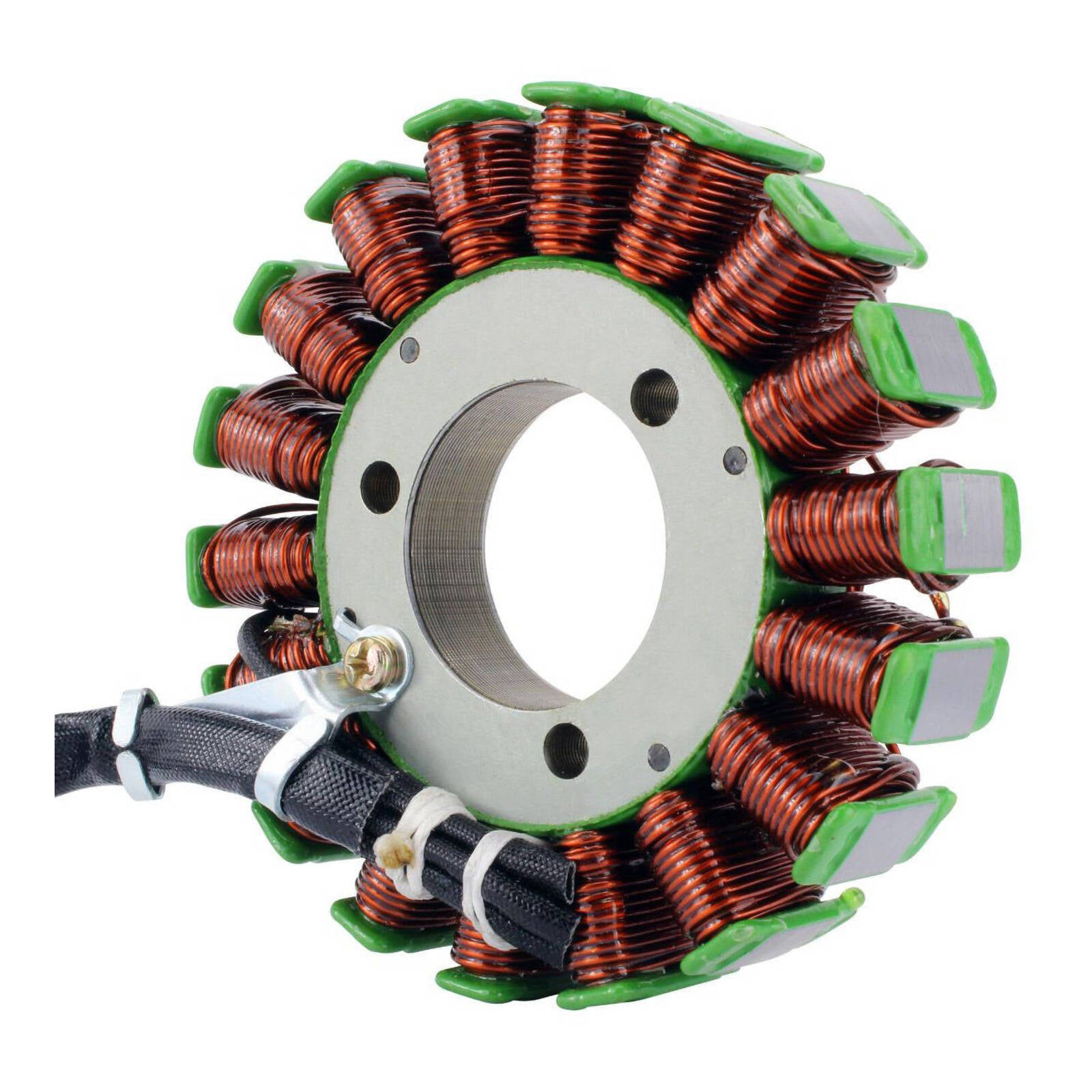

Generator Stator Kawasaki Ninja 400 '18-'20 (RMS010-107074)

Brand new aftermarket generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick-up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

Dimensions:

• Interior diameter: 38 mm
• Exterior diameter: 107 mm
• Thickness: 16 mm
• Length of wires stator to grommet: 95 mm
• Length of wires grommet to plug: 380 mm
• Length of pickup coil's wire to grommet: 75 mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of holes: 3
• Number of poles: 18

Wire to wire resistance:

• Alternator : Black to Black = 0.6 ohms +-20%
• Pickup: White to Green/White = 232 ohms +-20%
