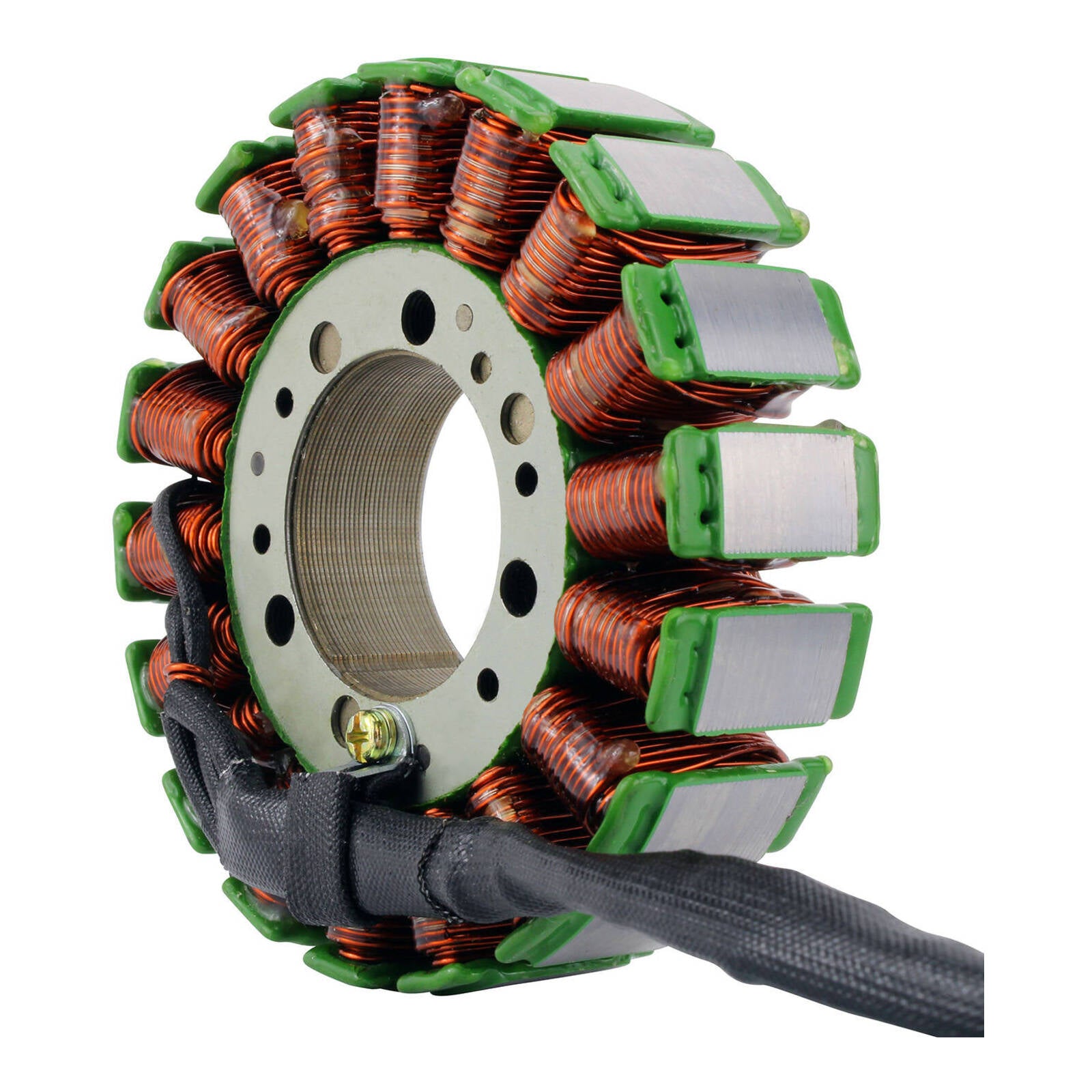

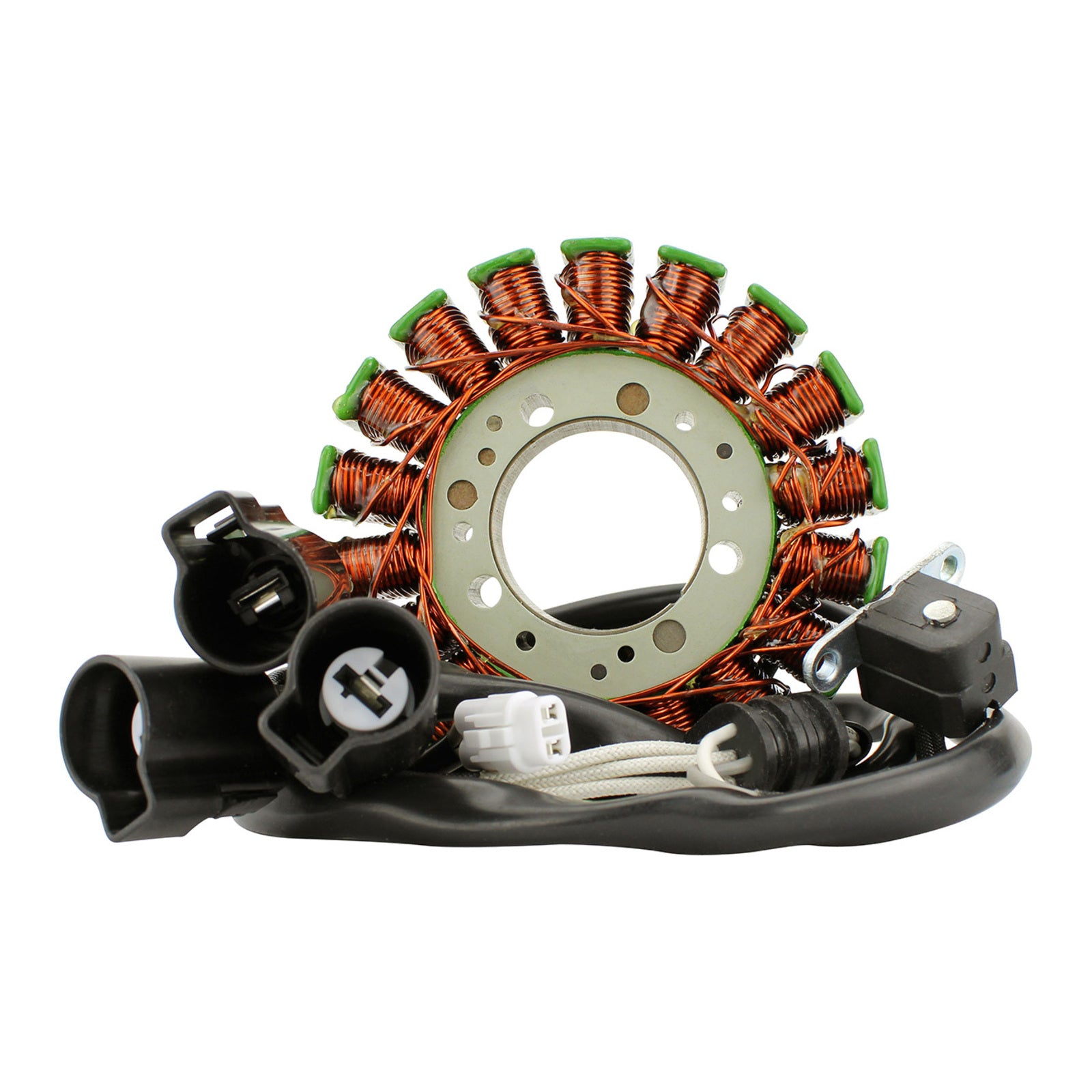

Generator Stator Yamaha YXZ1000R '19-'21 (RMS010-107076)

Brand new aftermarket generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick-up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

Dimensions:

• Interior diameter: 42 mm
• Exterior diameter: 115 mm
• Thickness: 23 mm
• Length of wires stator to grommet: 200 mm
• Length of wires grommet to plug: 1020 mm
• Length of pickup coil's wire to grommet: 110 mm

Other specifications:

• Number of wires: 5
• Number of plugs: 4
• Number of holes: 5
• Number of poles: 18

Wire to wire resistance:

• Alternator: White to White = 0.5 ohms +-20%
• Pickup: Black to Grey = 512 ohms +-20%
