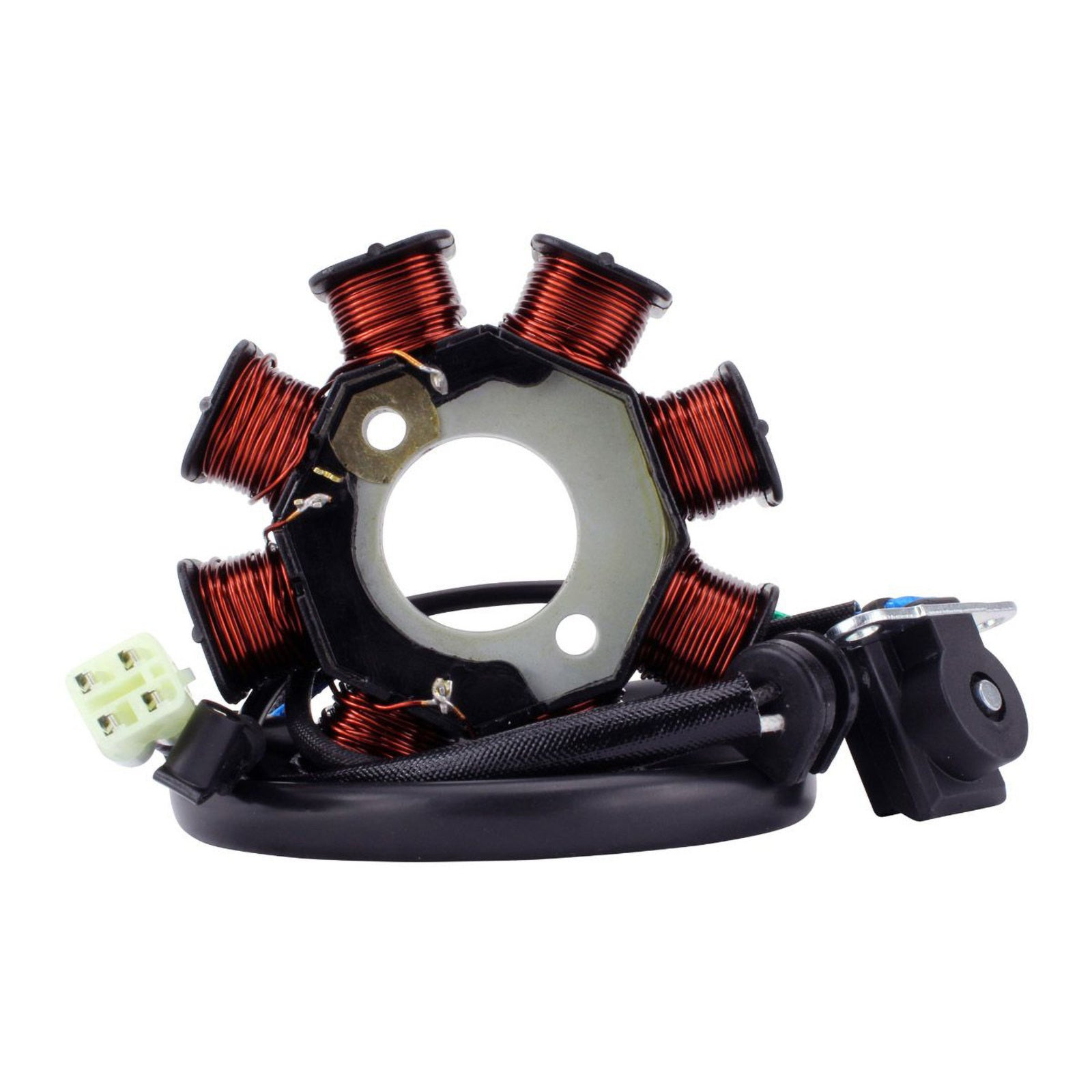

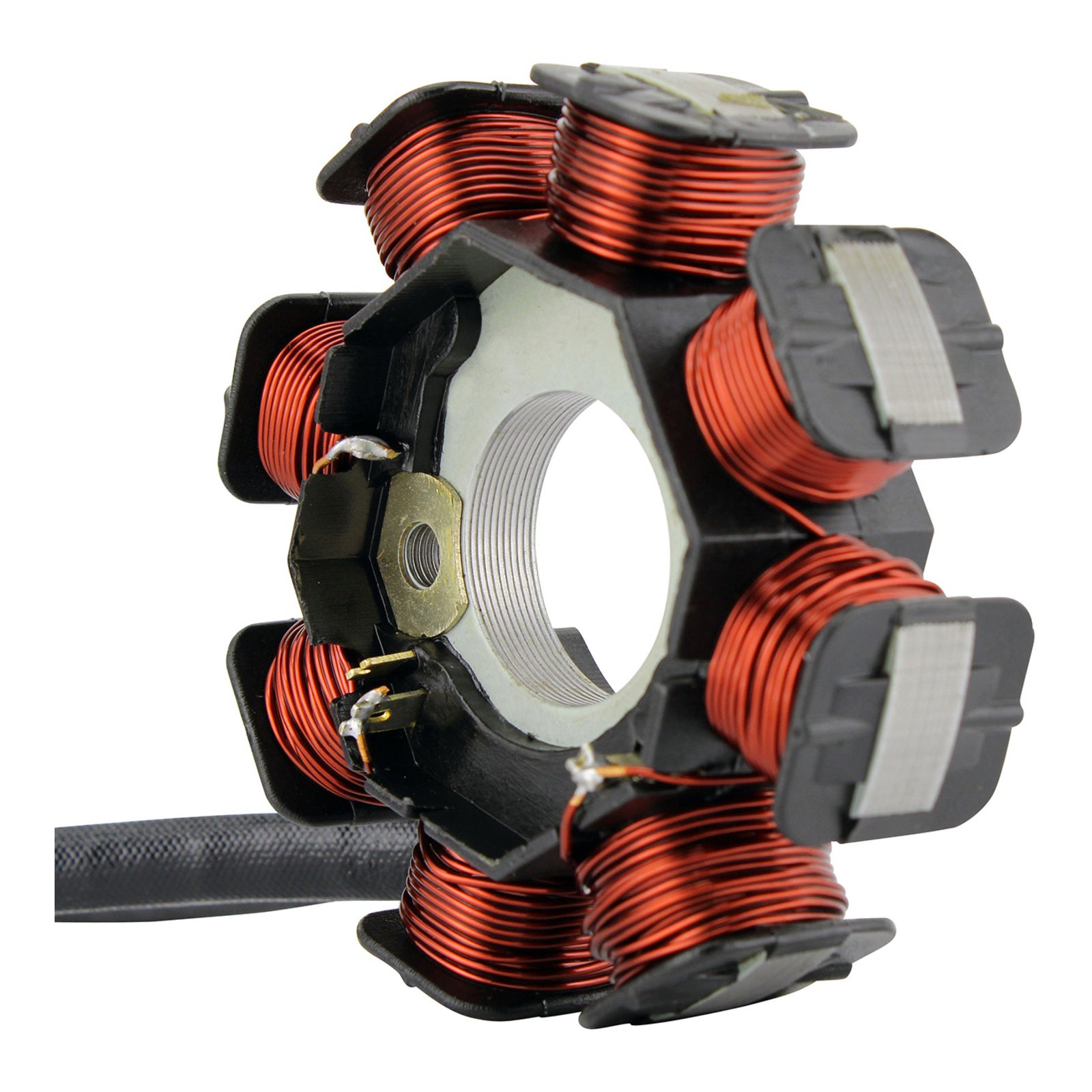

Generator Stator Kawasaki KLX140 '08-'21 (RMS010-107080)

Brand new aftermarket generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick-up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

Dimensions:

• Interior diameter: 29 mm
• Exterior diameter: 88 mm
• Thickness: 10 mm
• Length of wires stator to grommet: 110 mm
• Length of wires grommet to plug: 475, 100 mm
• Length of pickup coil's wire to grommet: 145 mm

Other specifications:

• Number of wires: 4
• Number of plugs: 2
• Number of holes: 2
• Number of poles: 8

Wire to wire resistance:

• Alternator: White to Ground = 1.1 ohms +-20%
• Pickup: Blue/yellow to Ground = 119 ohms +-20%
