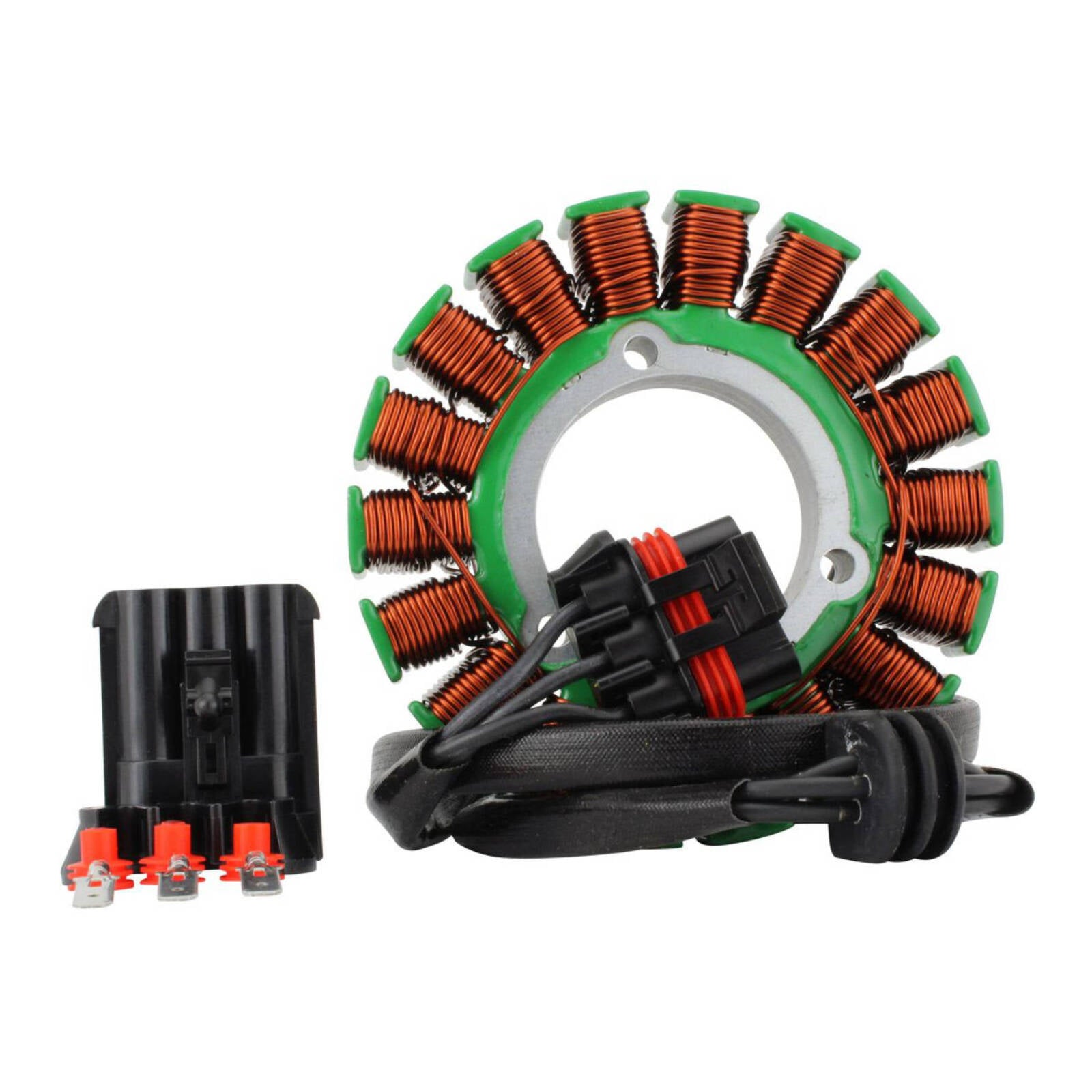

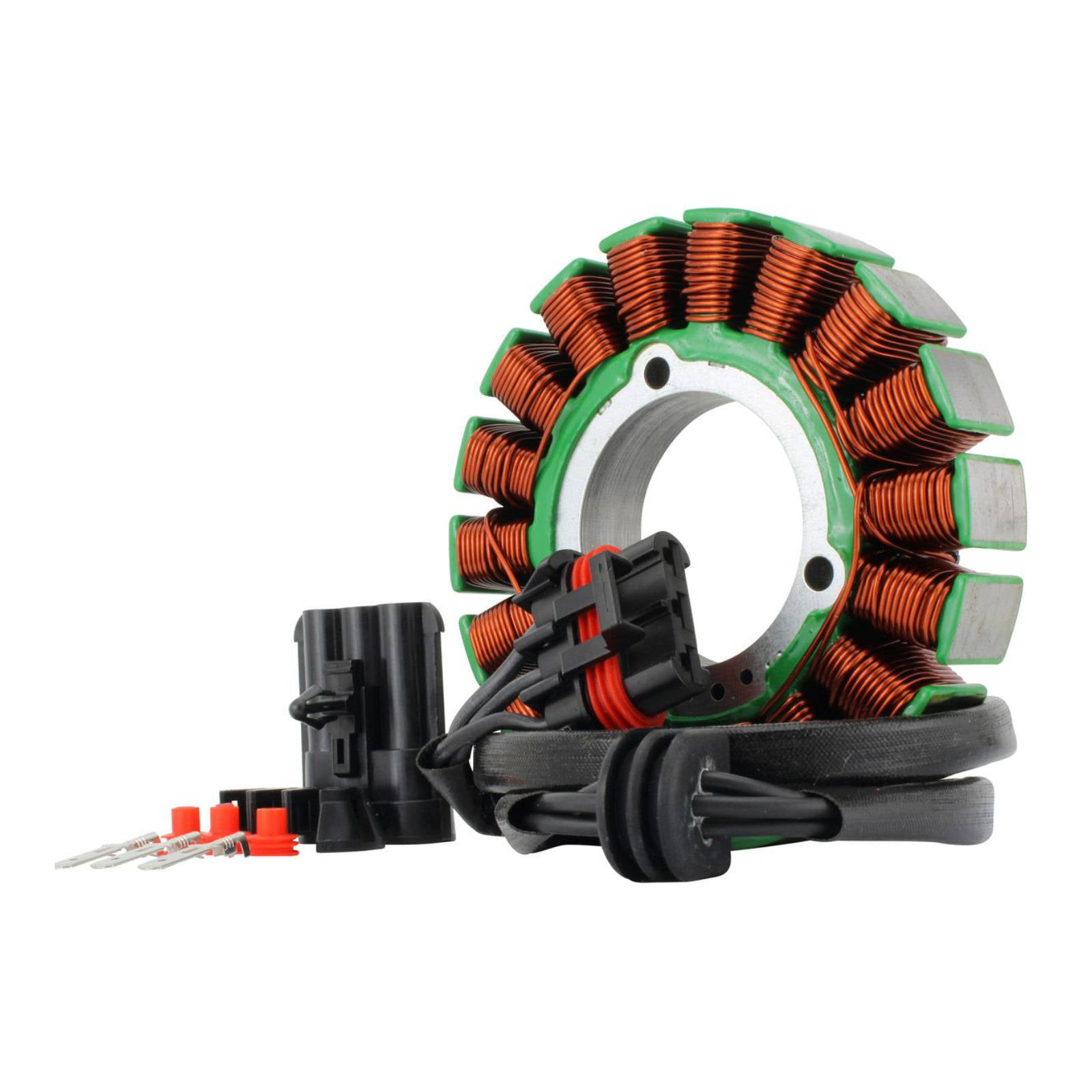

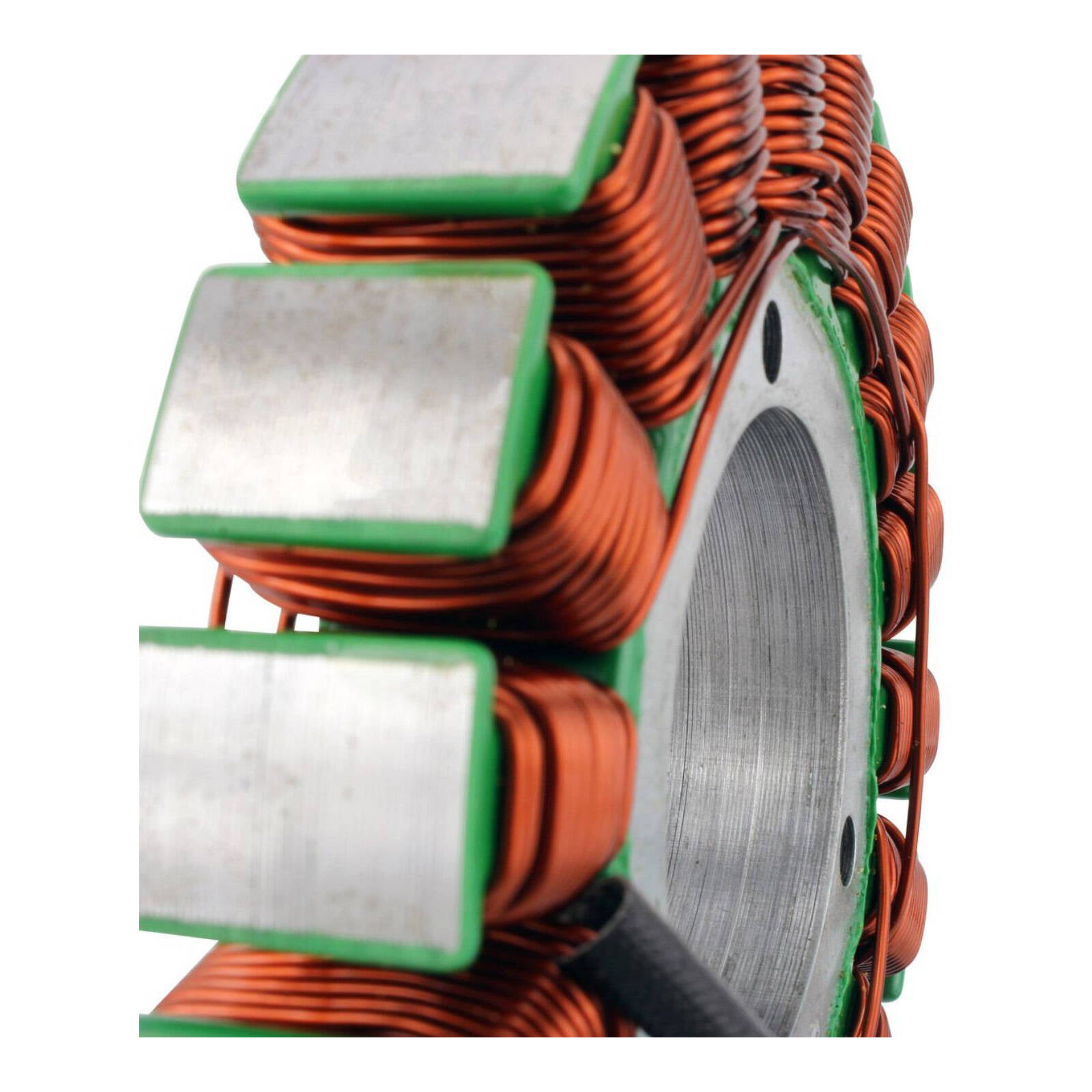

Generator Stator Polaris Ranger 1000 '18-'21 (RMS010-107104)

Plug-and-play replacement stator from RM Stator.

Dimensions:

• Interior diameter: 54 mm
• Exterior diameter: 126 mm
• Thickness: 21 mm
• Length of wires stator to grommet: 120 mm
• Length of wires grommet to plug: 680 mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins:3
• Number of poles: 18
• Wire to wire resistance:
  • Alternator: Between each Yellow = 0.6 ohms +-20%
  • Alternator: to ground = O.L

Details:

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested
