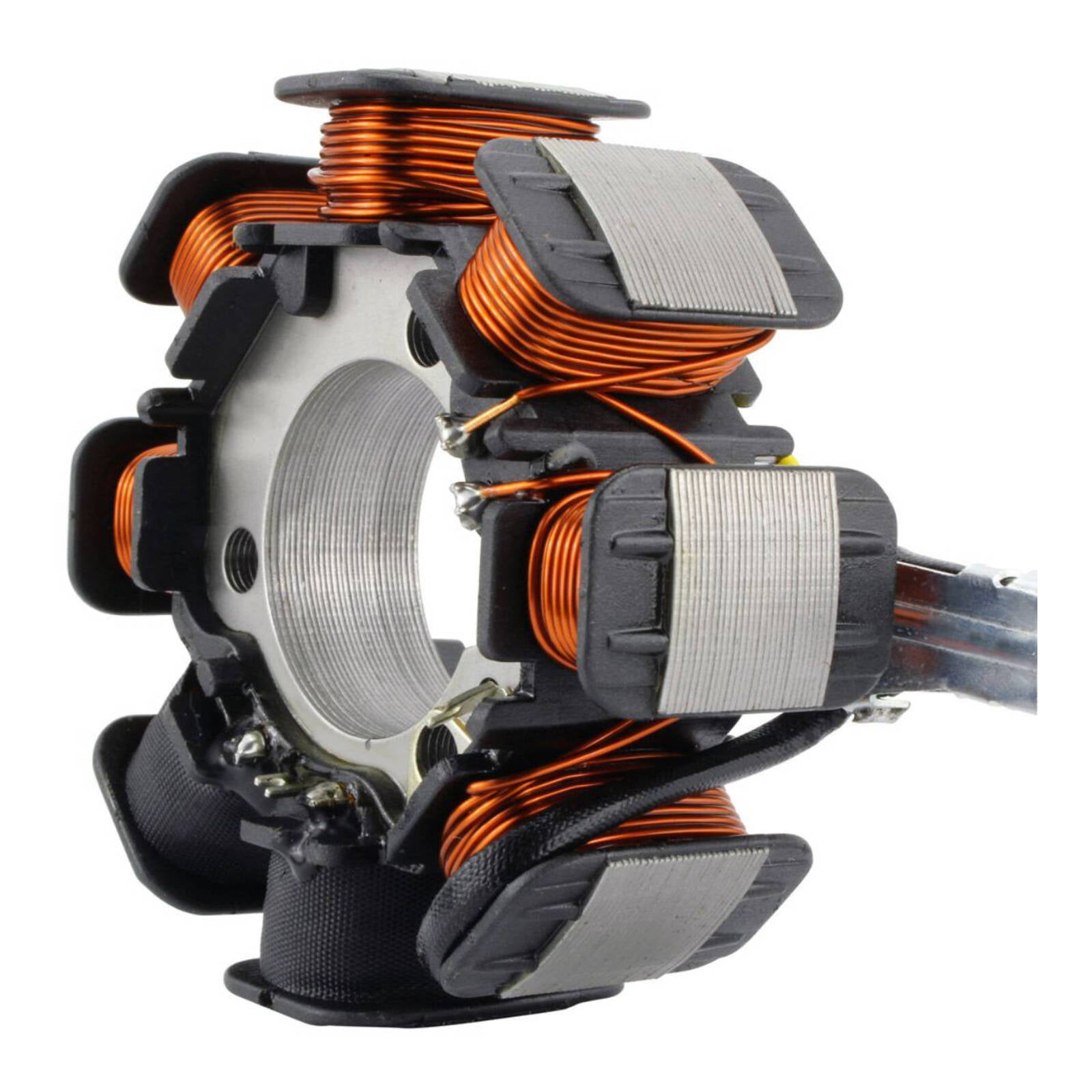

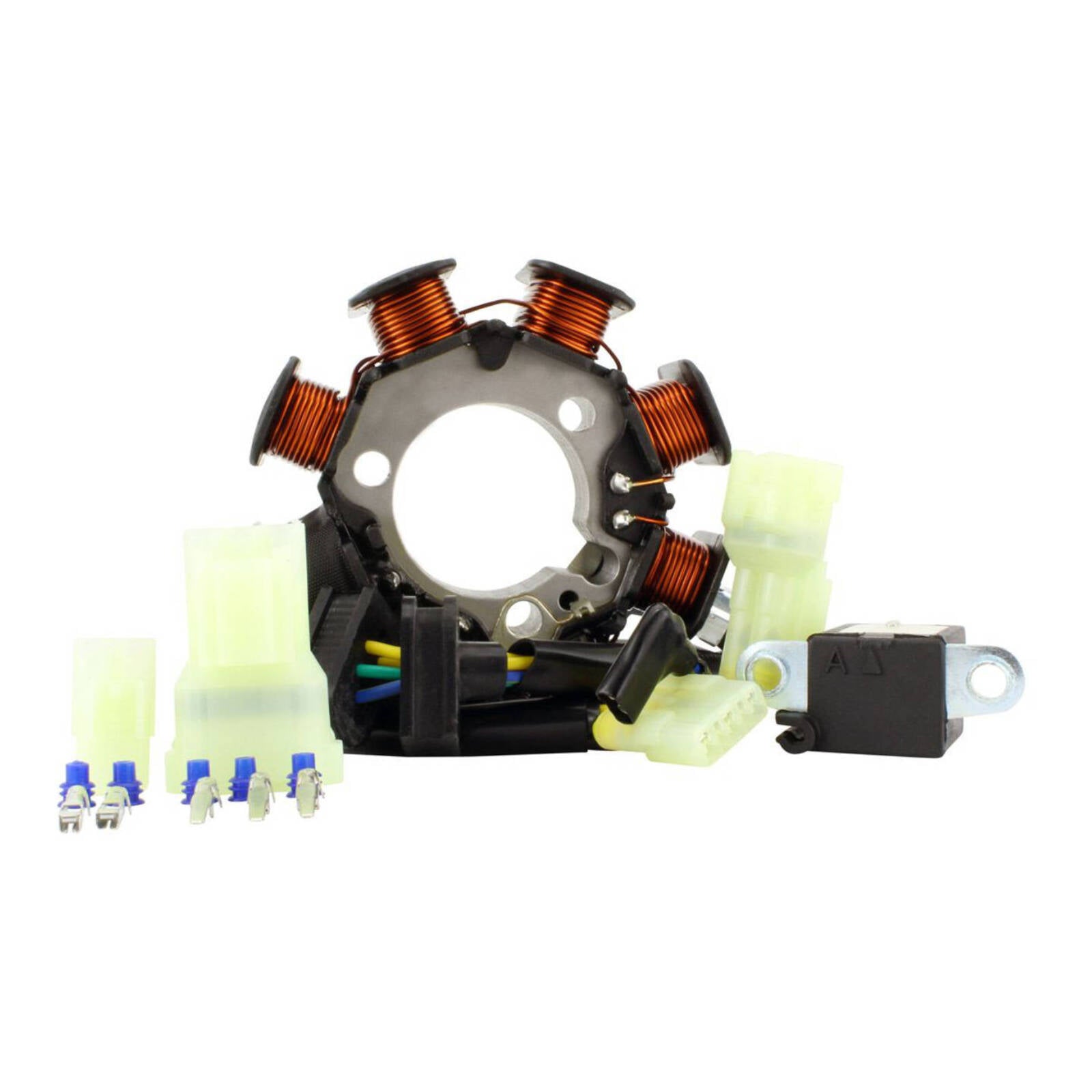

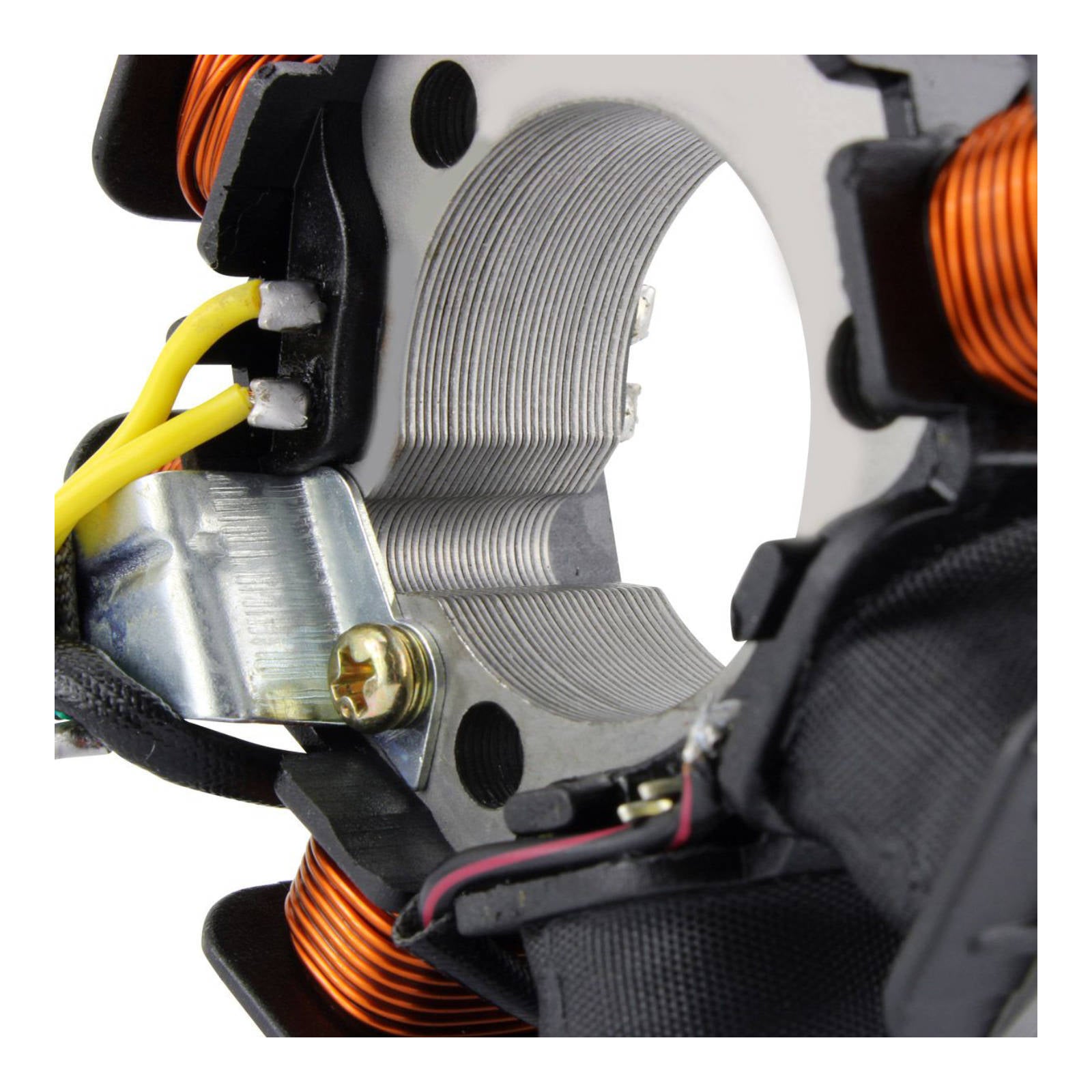

Generator Stator Honda TRX250X '09-'21 (RMS010-107110)

Plug-and-play replacement generator stator from RM Stator.

Dimensions:

• Interior diameter: 35mm
• Exterior diameter: 88mm
• Thickness: 18mm
• Length of wires stator to grommet: 90mm
• Length of wires grommet to plug: 140mm
• Length of pickup coil's wire to grommet #1: 330mm
• Length of pickup coil's wire to grommet #2: 370mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 8
• Wire to wire resistance:
  • Alternator: Between each Yellow = 0.7 ohms +-20%
  • Pickup: Blue/Yellow to Ground = 336 ohms +-20%
  • Pickup: Black/Red to Ground = 185 ohms +-20%

Details:

< li>Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested
