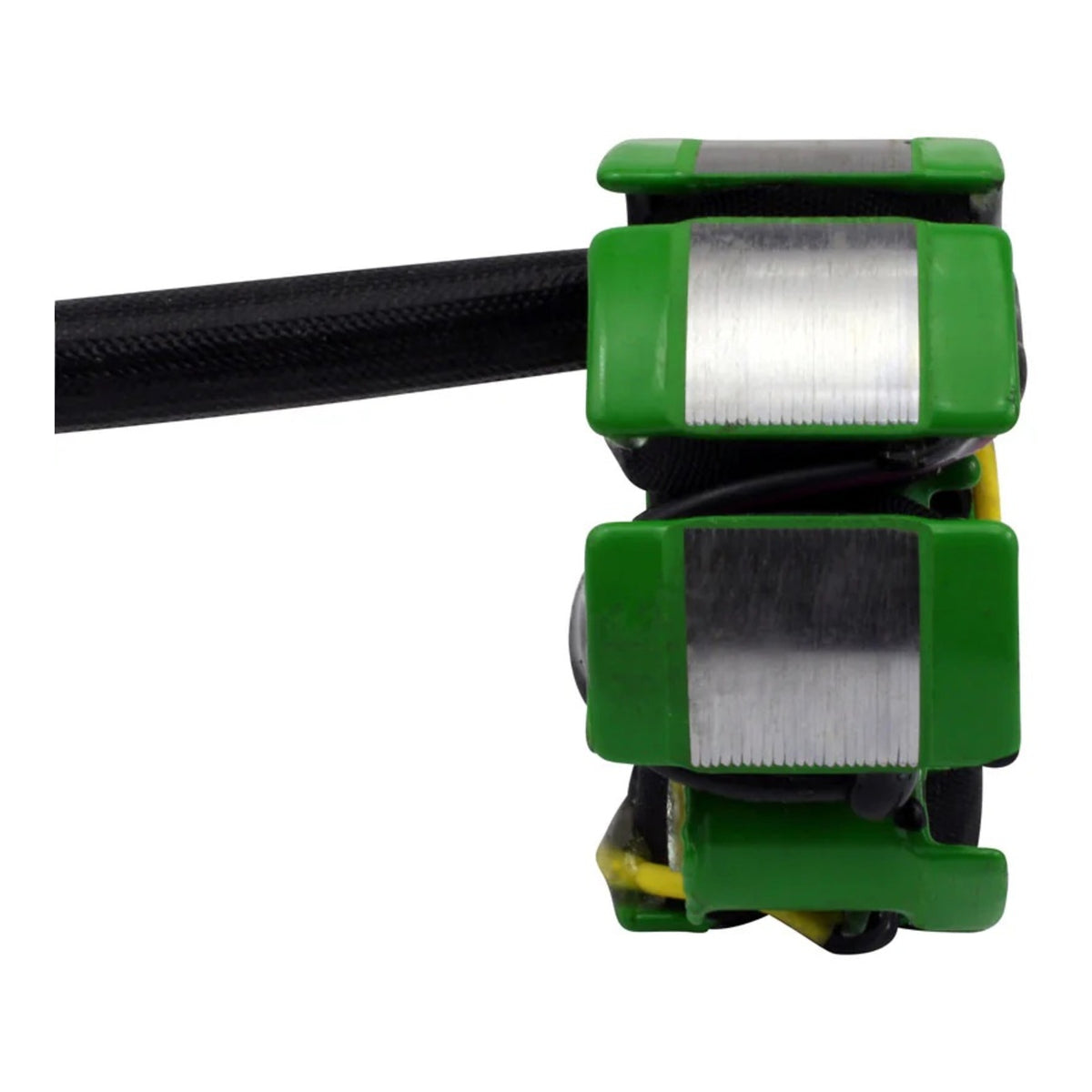

50W Lighting Stator Assorted KTM Husqvarna GasGas ‘16-’24

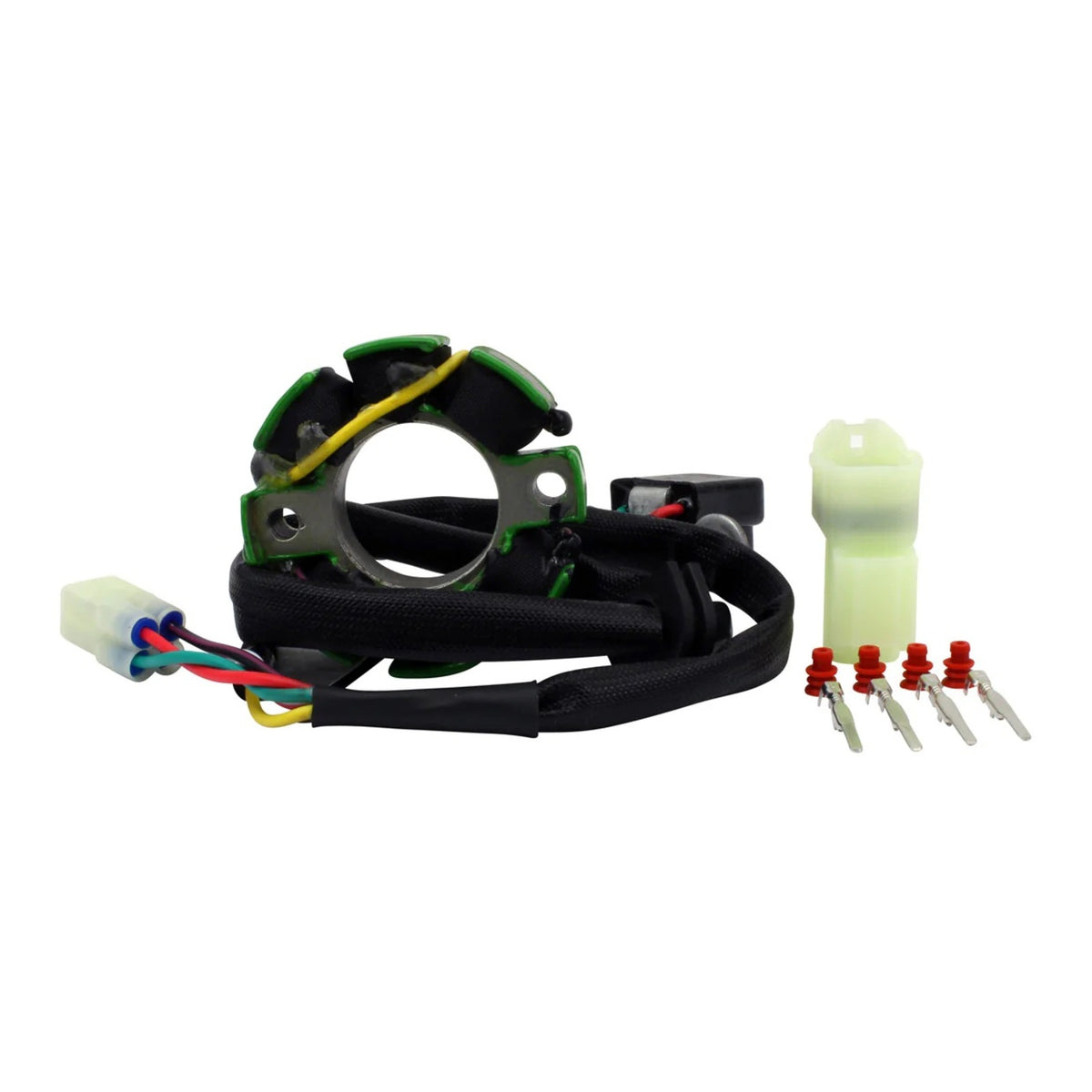

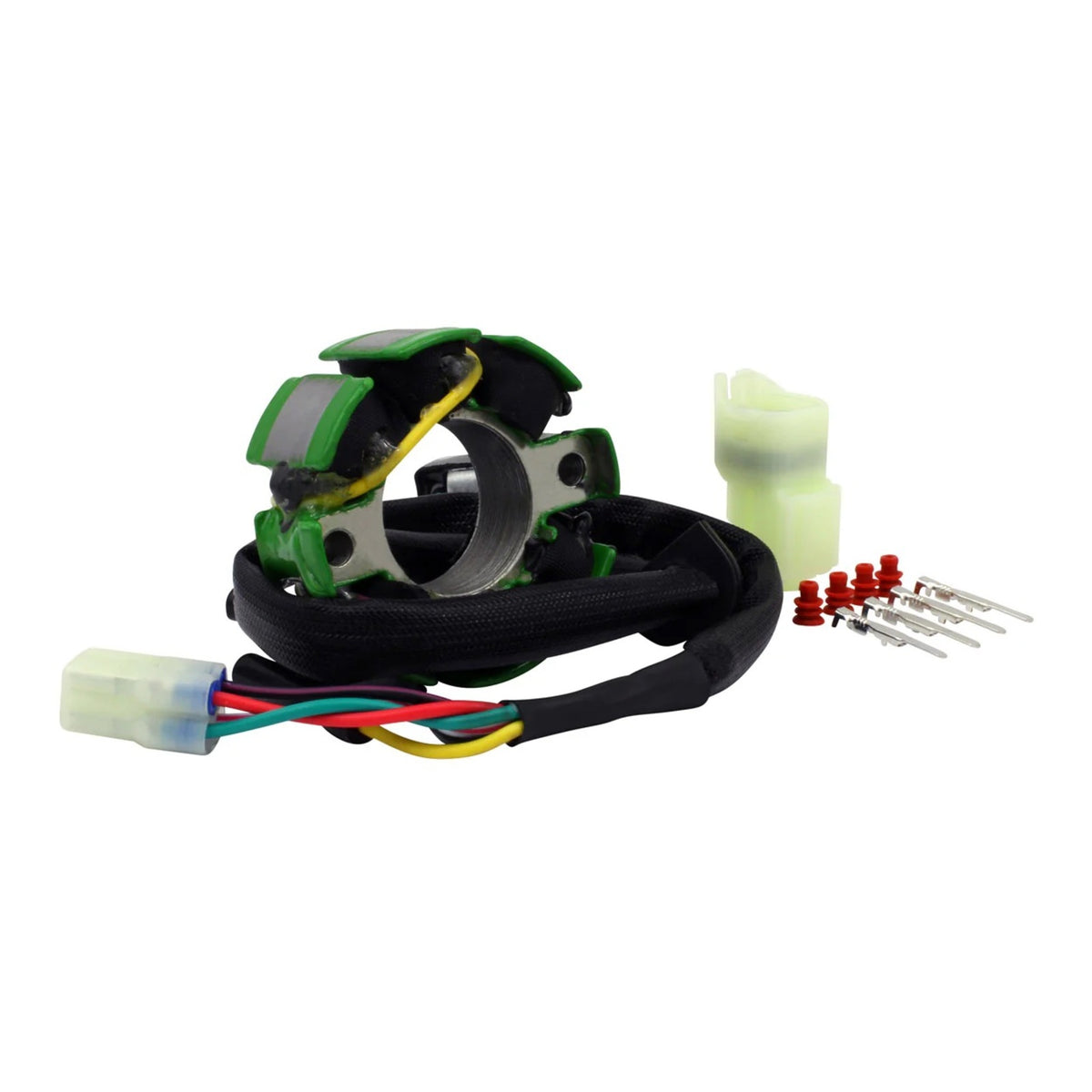

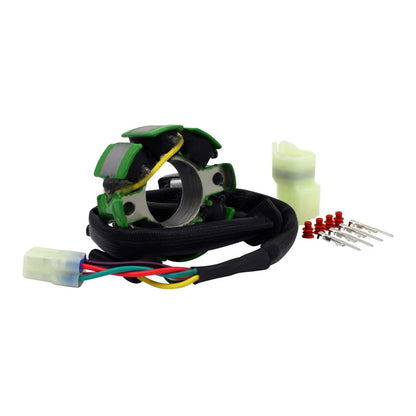

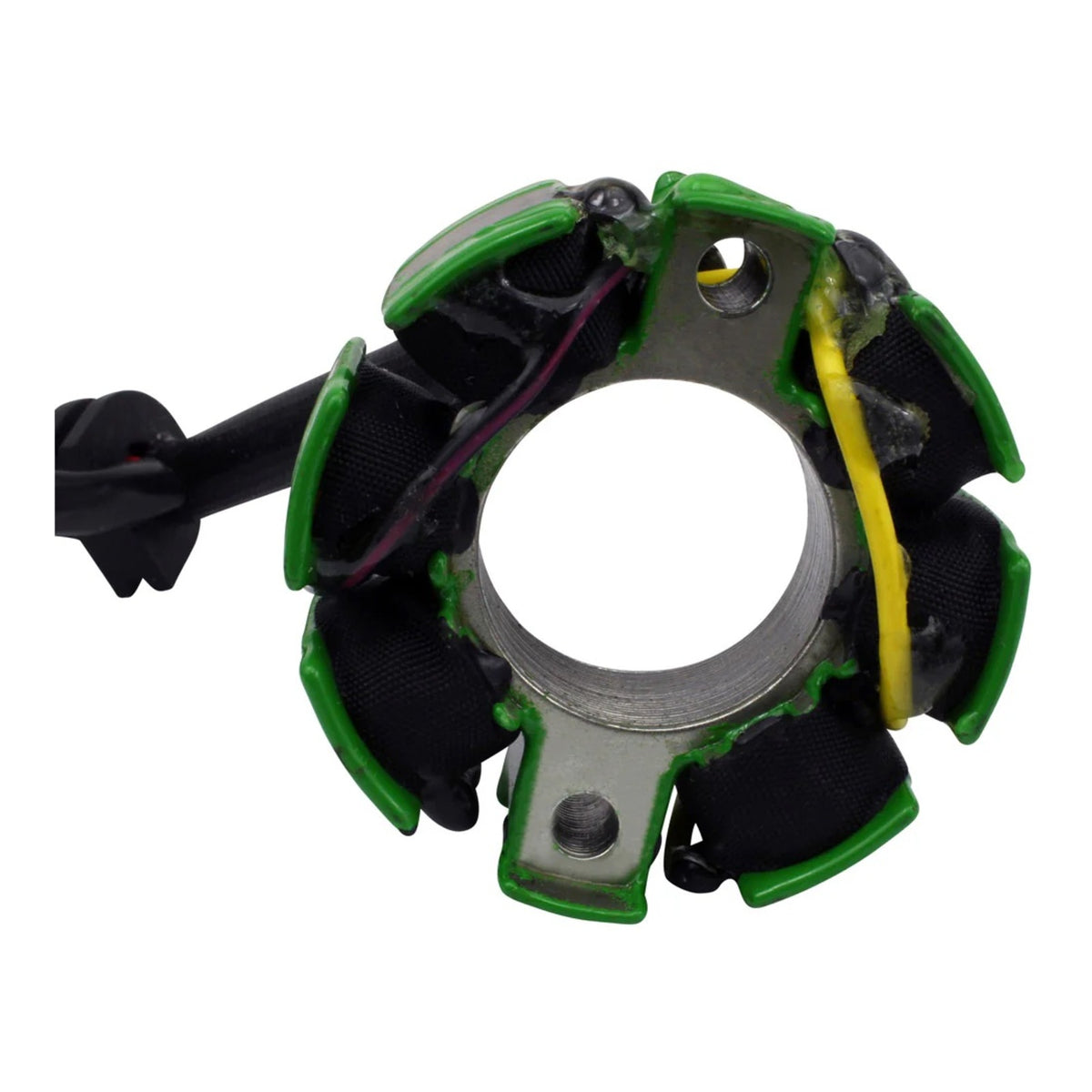

Brand new aftermarket lighting stator.

• Direct replacement to the original unit
• Plug-and-play, direct fit, easy installation

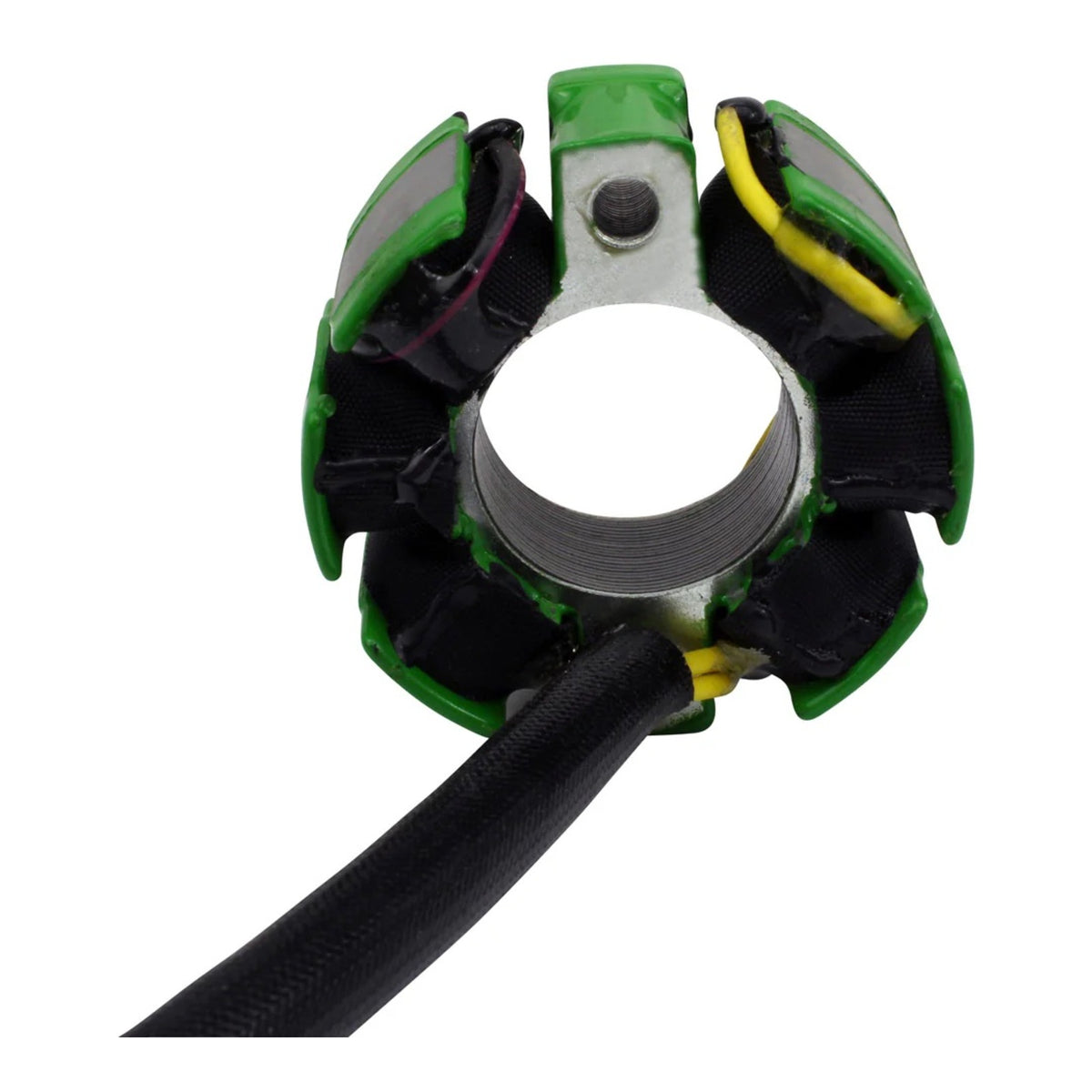

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

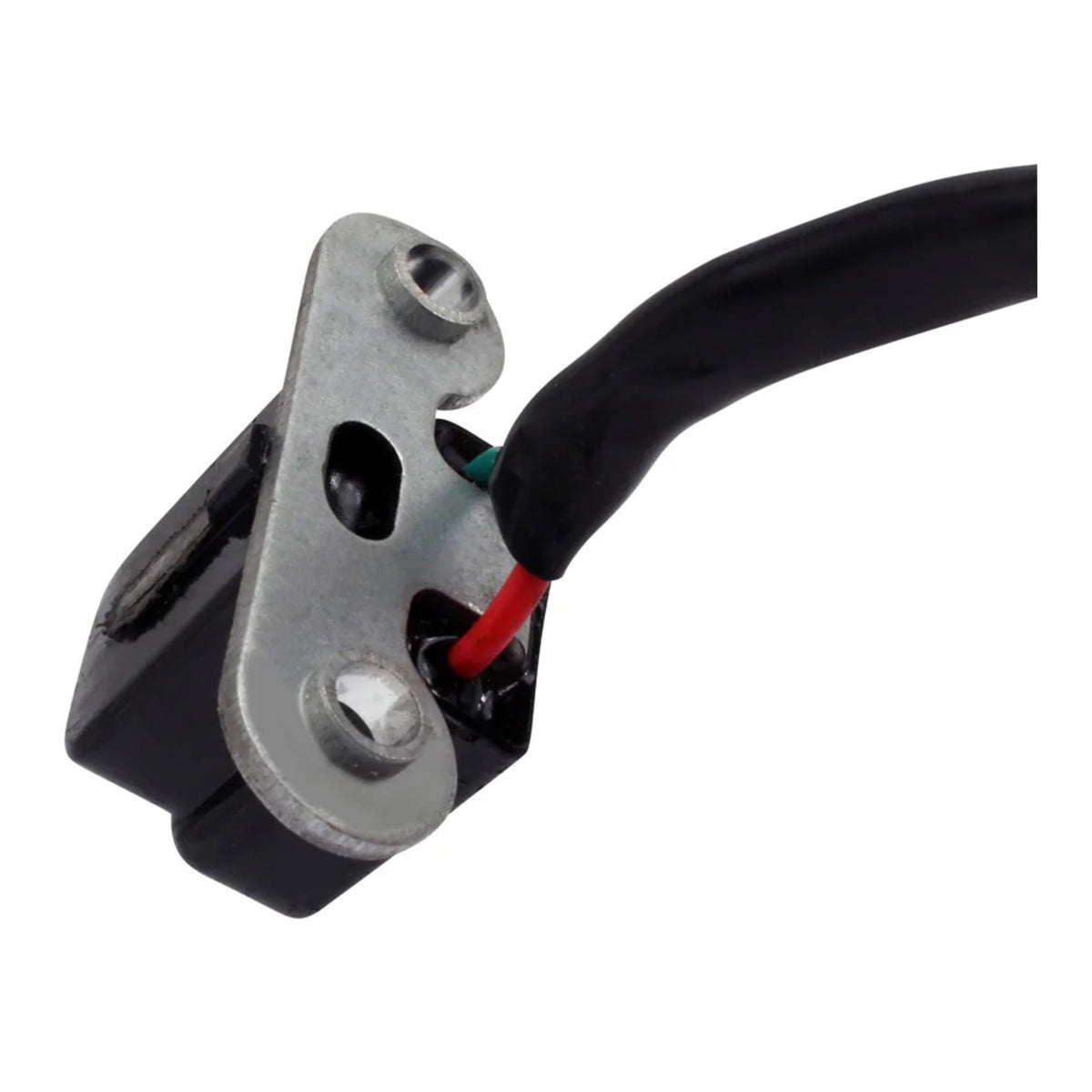

• Pick up pulsar coil included

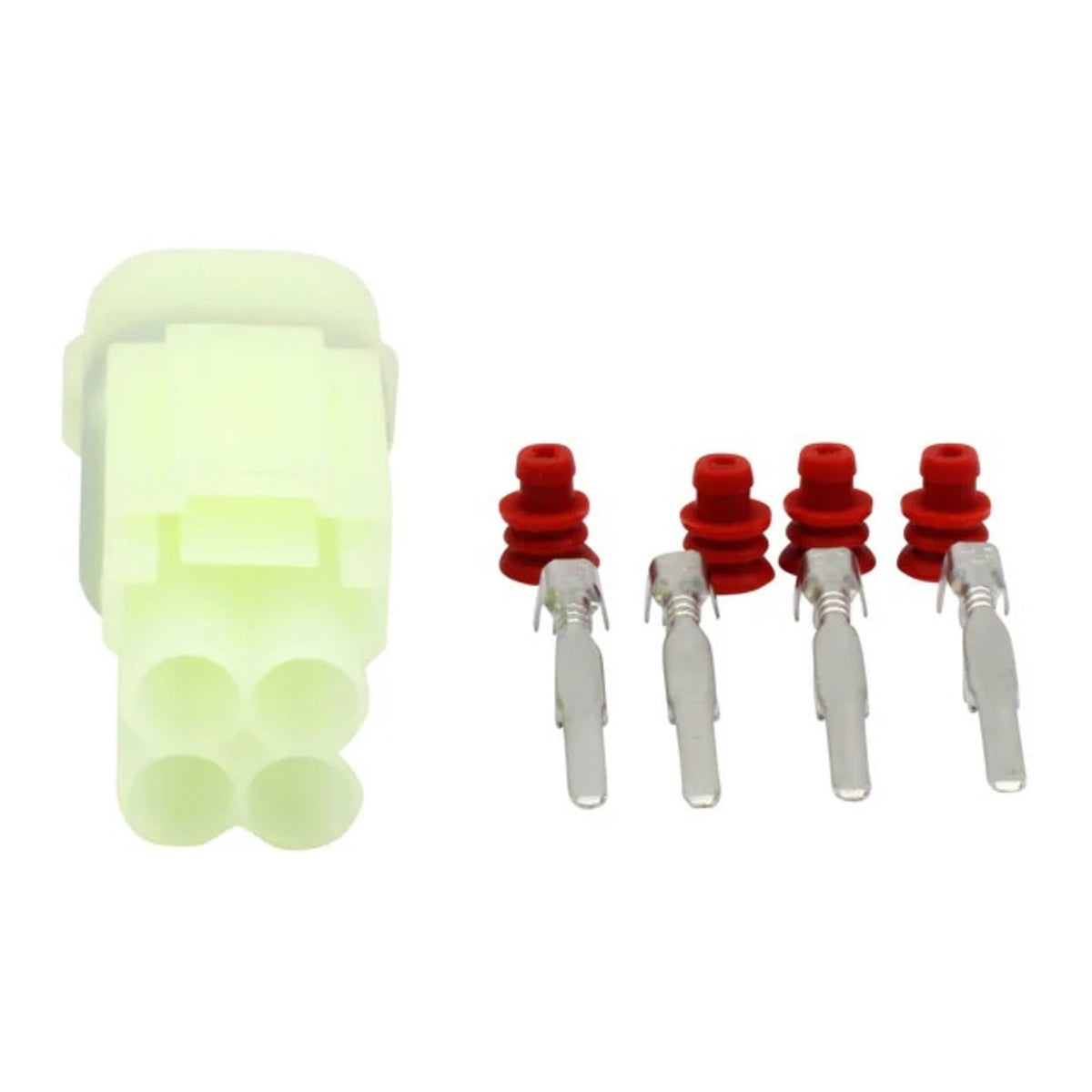

• Connectors included

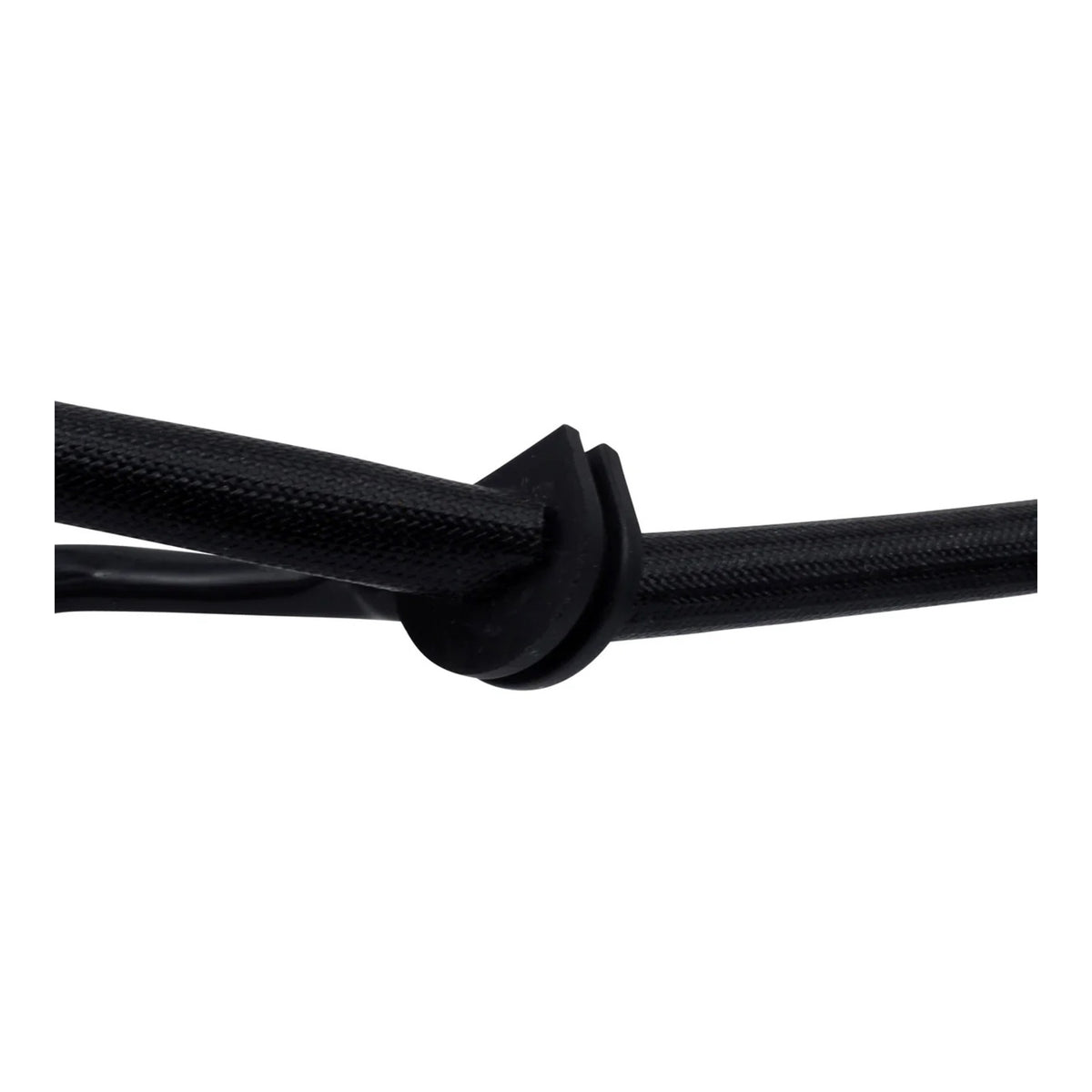

• Rubber grommet included
• All products shipped are tested

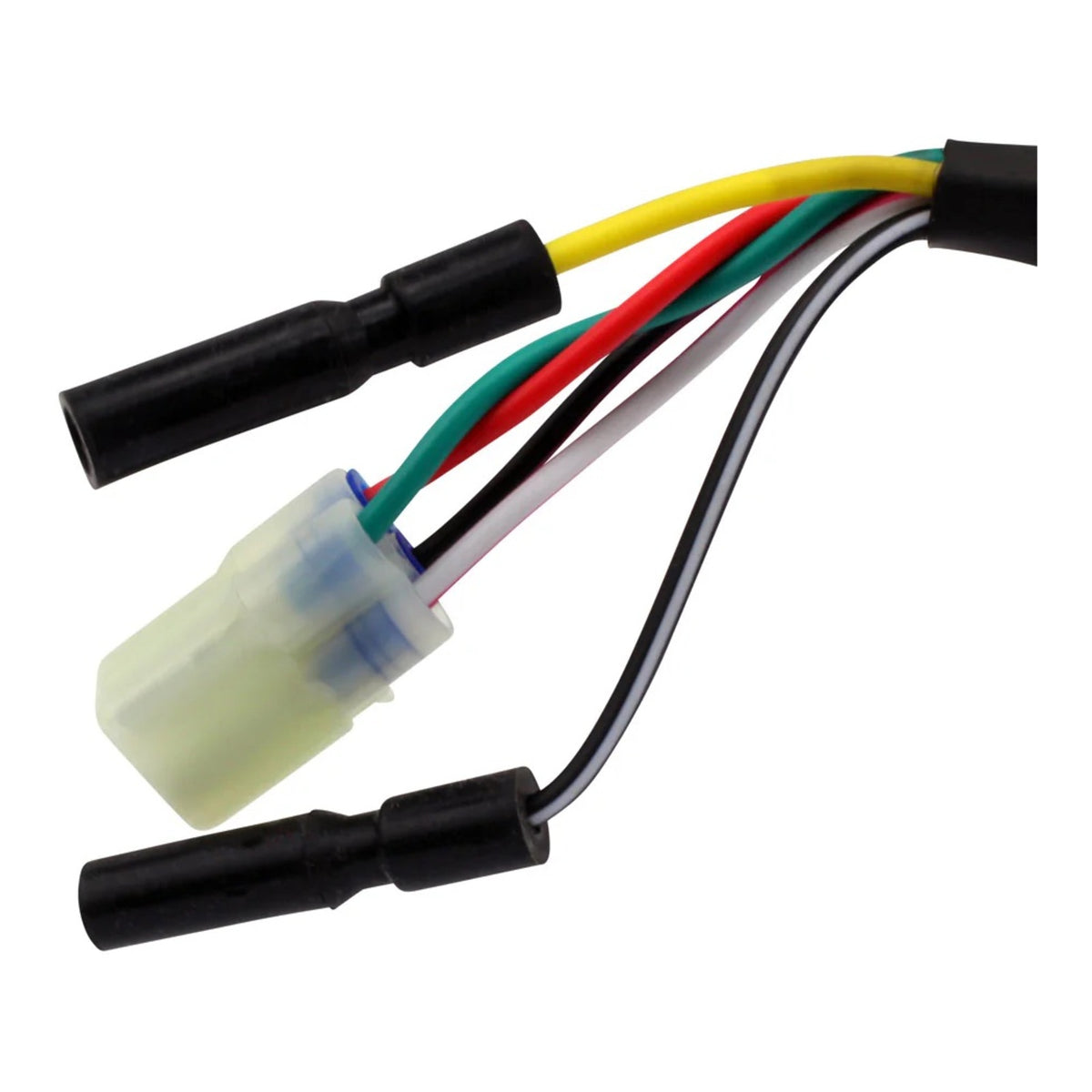

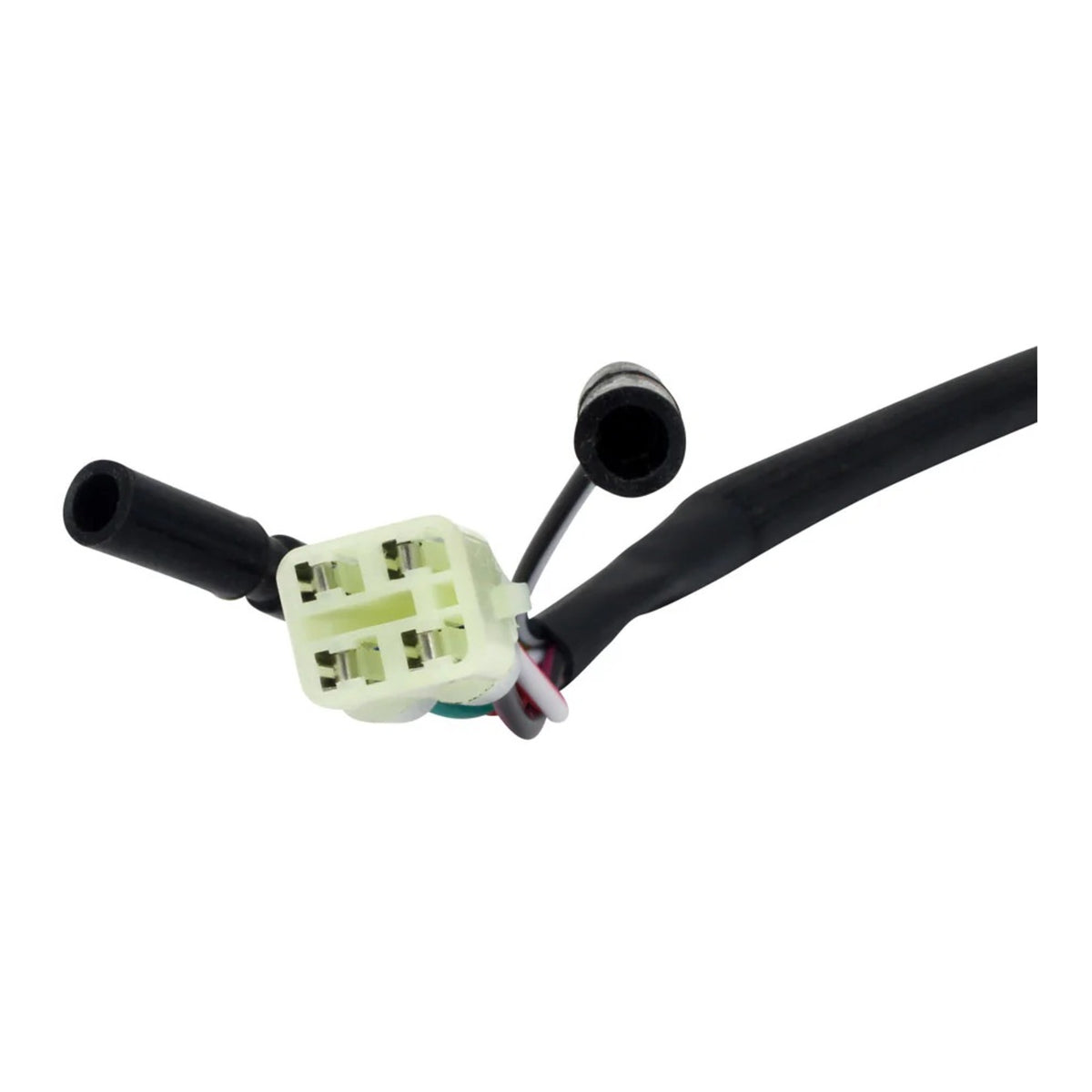

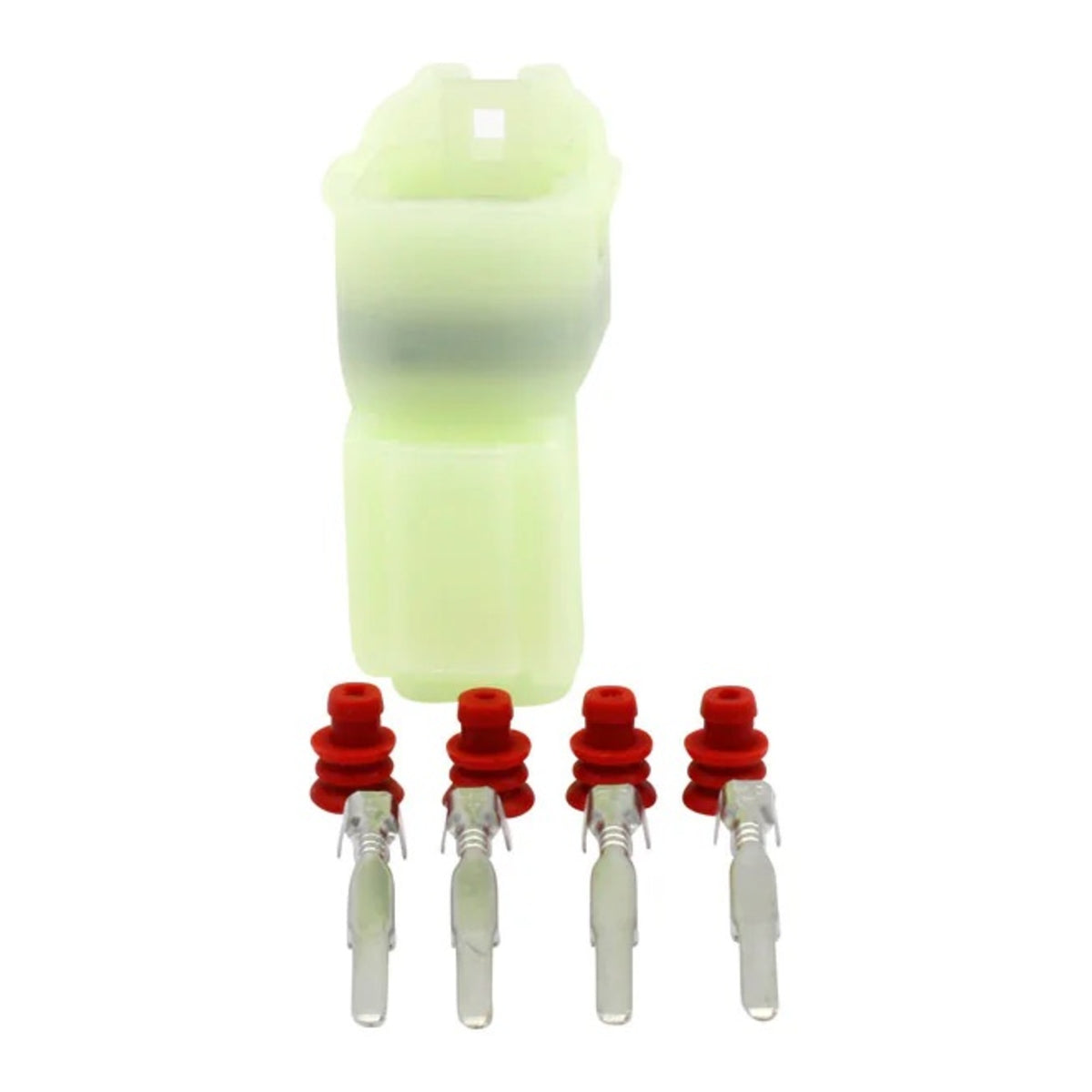

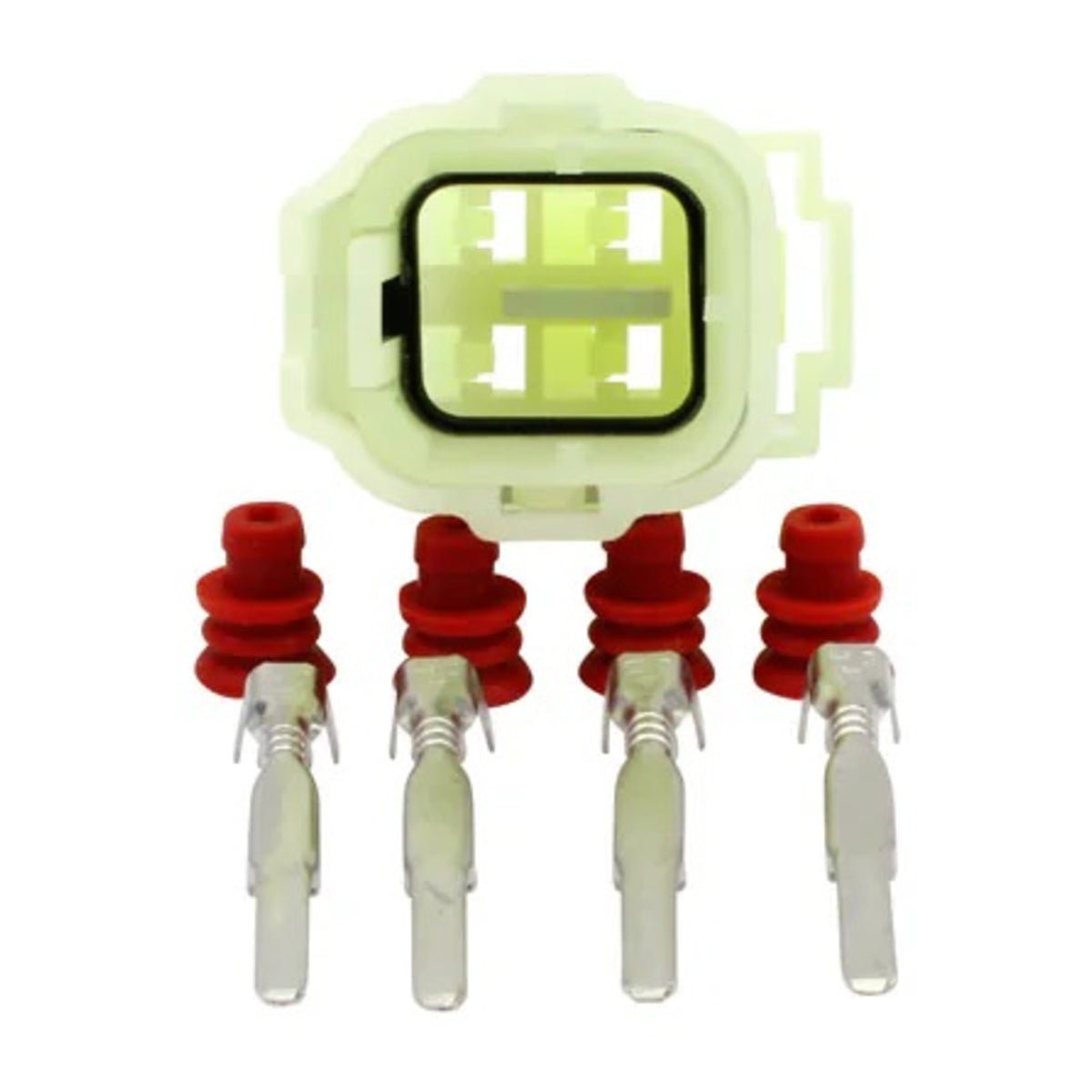

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.

Before installing the new lighting stator:

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

The stator might have a different wire colThe code than the original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Interior diameter: 28 mm
• Exterior diameter: 59 mm
• Thickness: 16 mm
• Length of wires stator to grommet: 100 mm
• Length of wires grommet to plug: 400 mm
• Length of pickup coil's wire to grommet: 60 mm

Other specifications:

• Number of wires: 4
• Number of plugs: 1
• Number of pins: 4
• Number of poles: 6
• Wire to wire resistance:
• Pickup: Red to Green = 100 ohms +/-20%
• Source: Black/Red to Red/White = 35 ohms +/-20%
