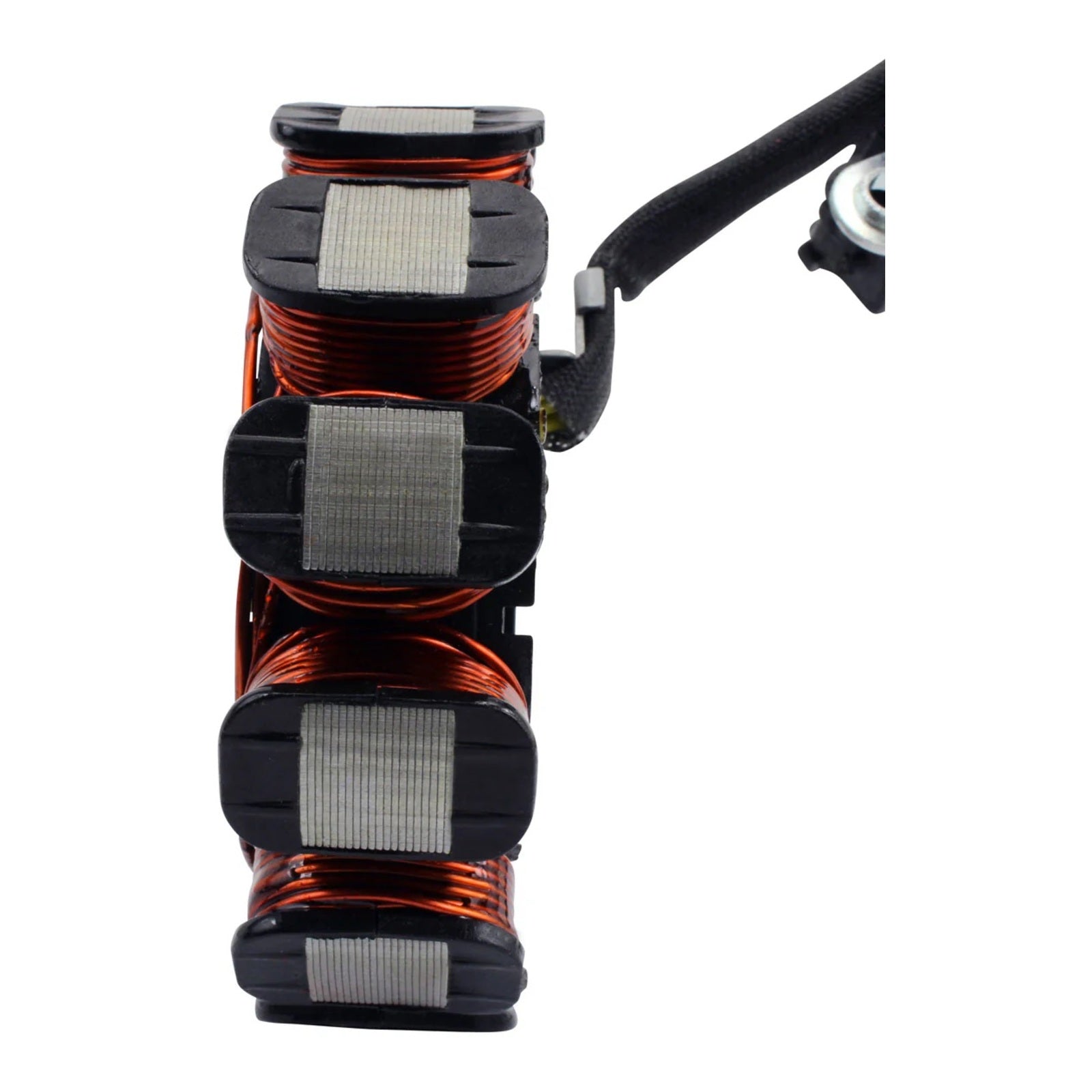

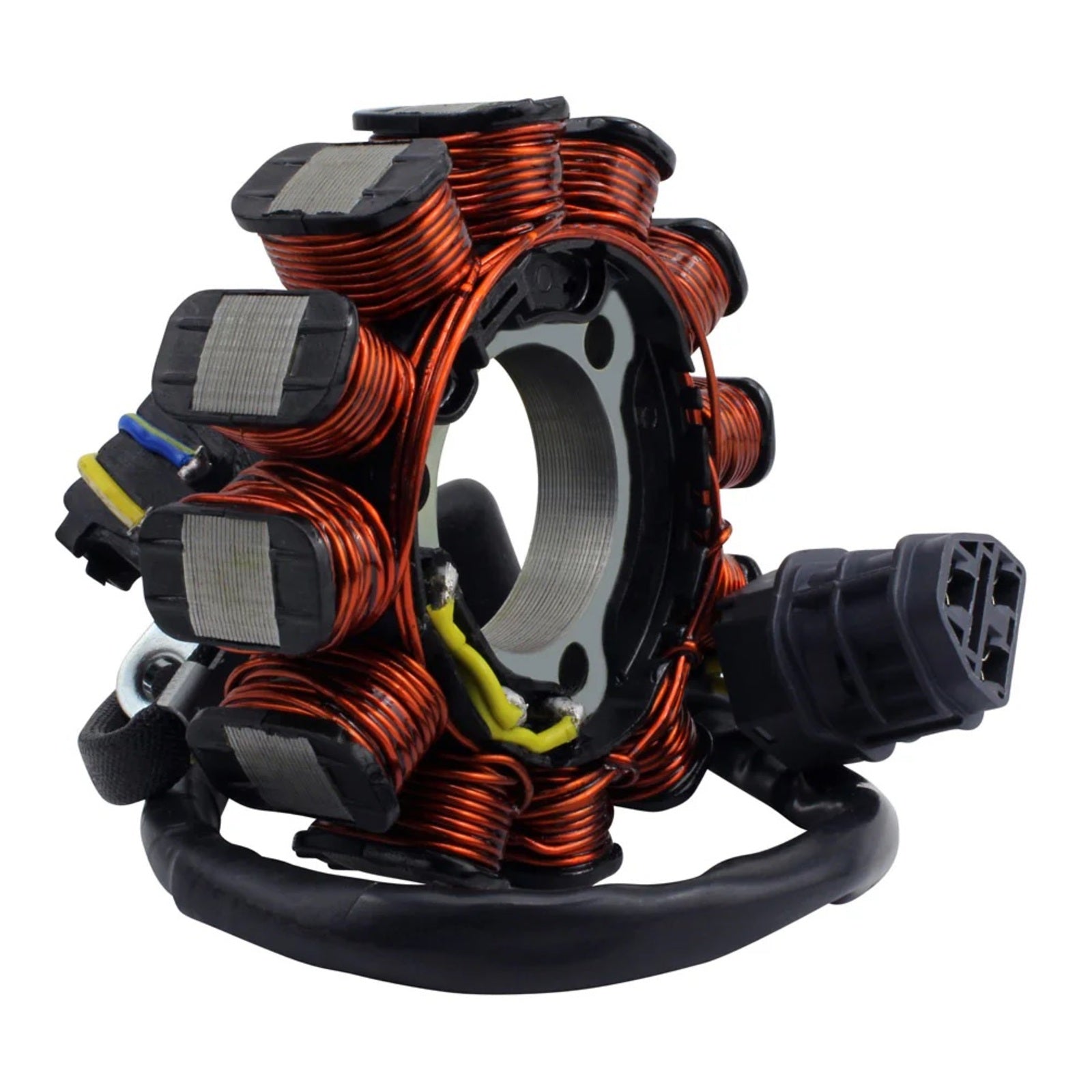

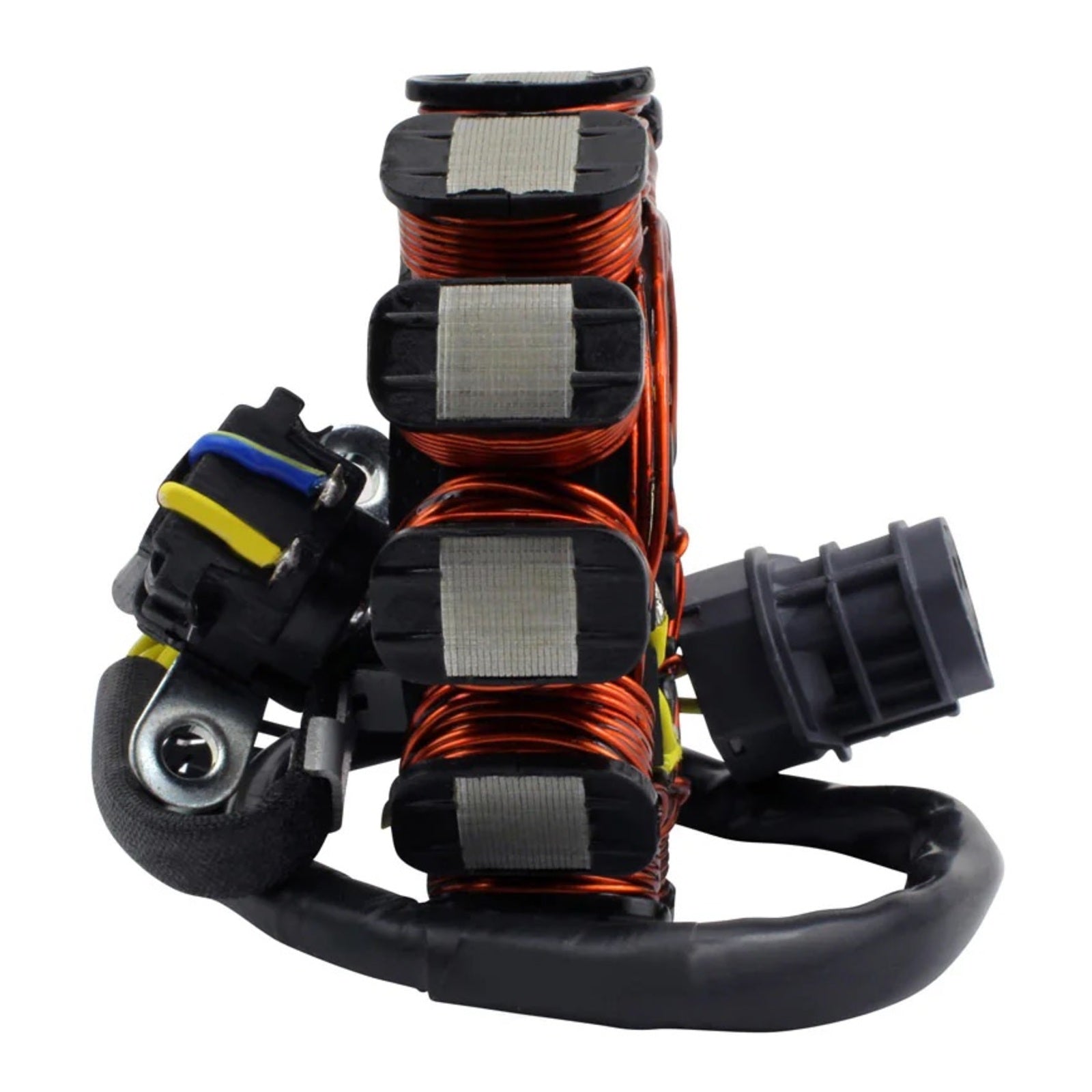

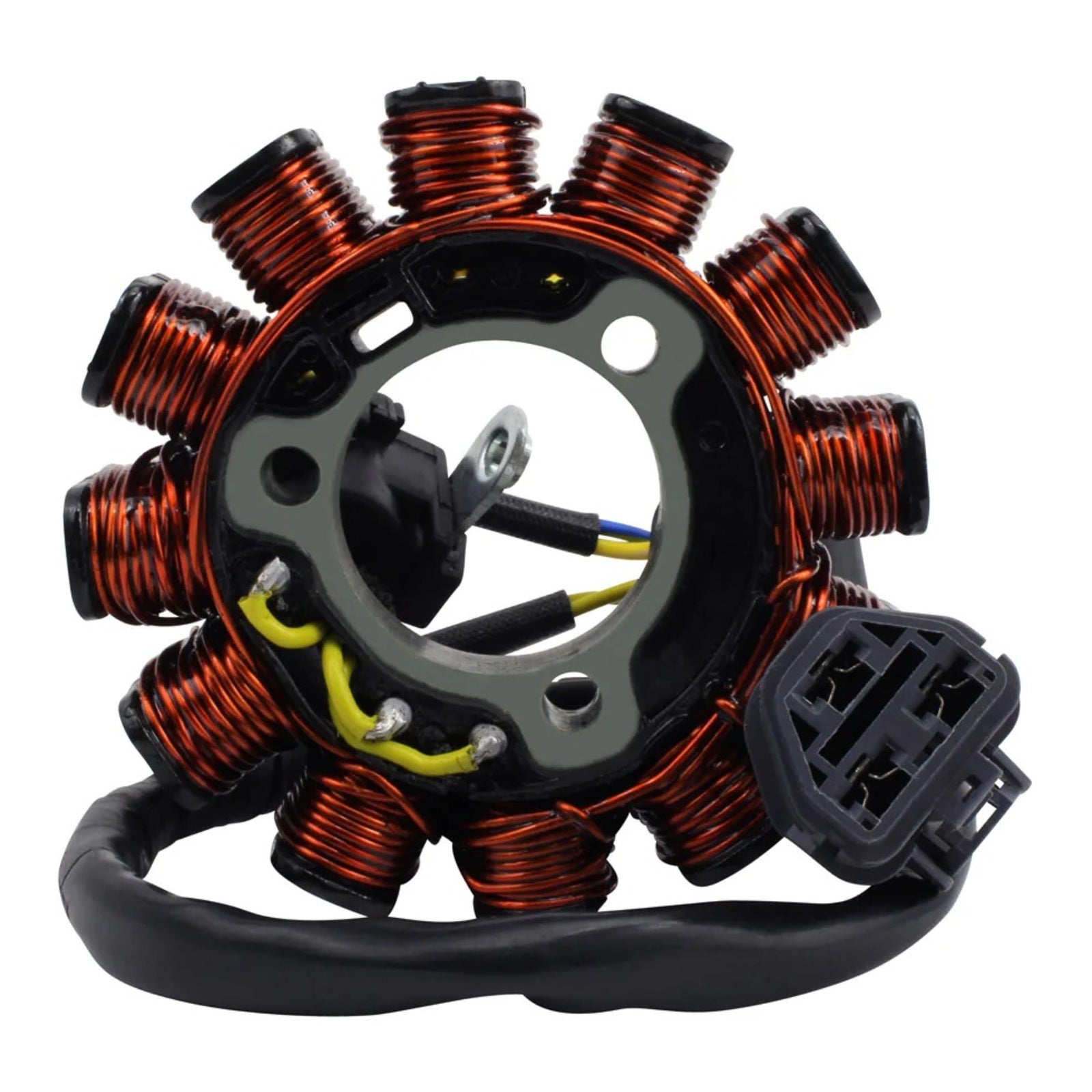

High Output 200W Stator Honda CRF450X / CRF450L / CRF450RL (RMS010-108786)
High Output 200W Stator Honda CRF450X / CRF450L / CRF450RL (RMS010-108786)
RMSTATOR

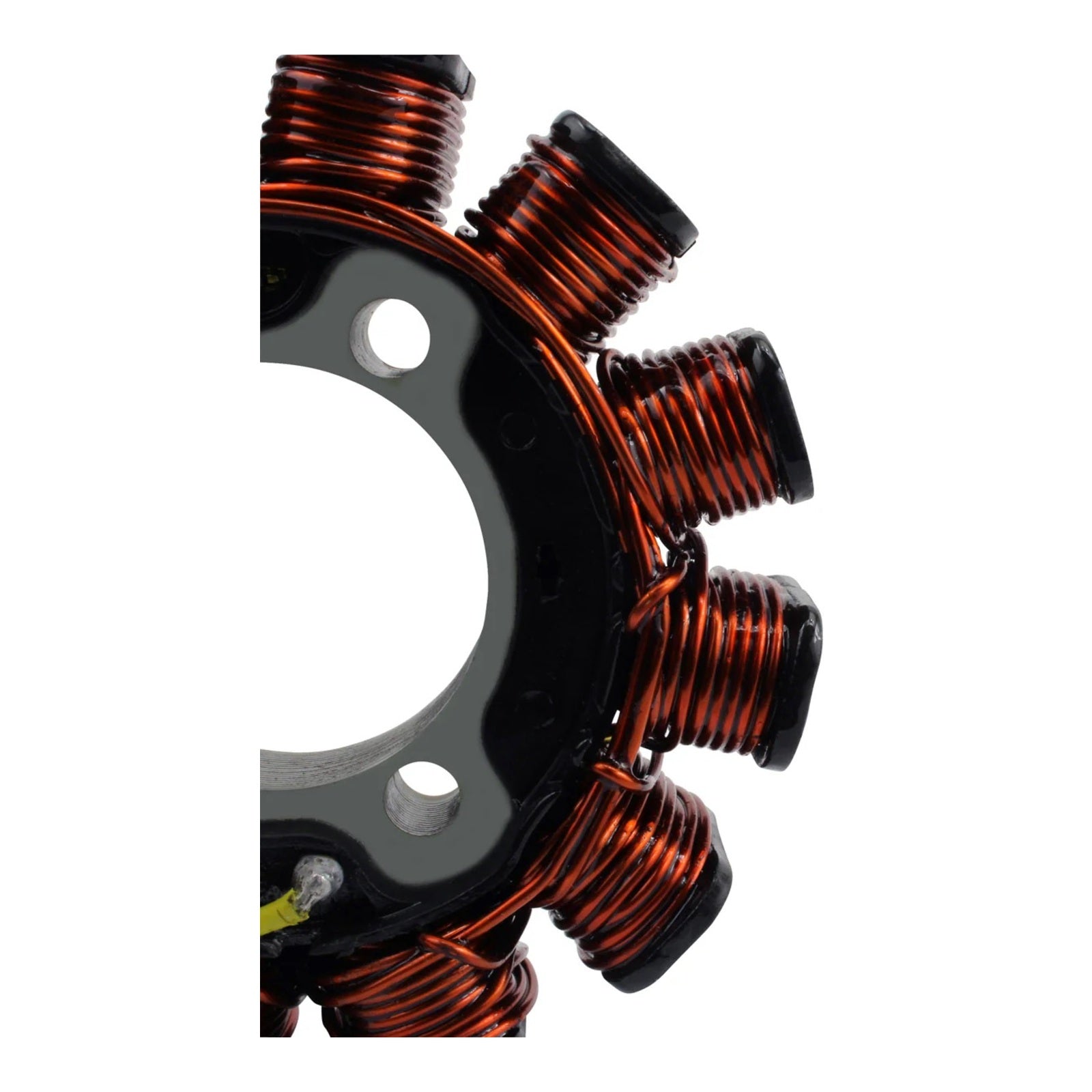

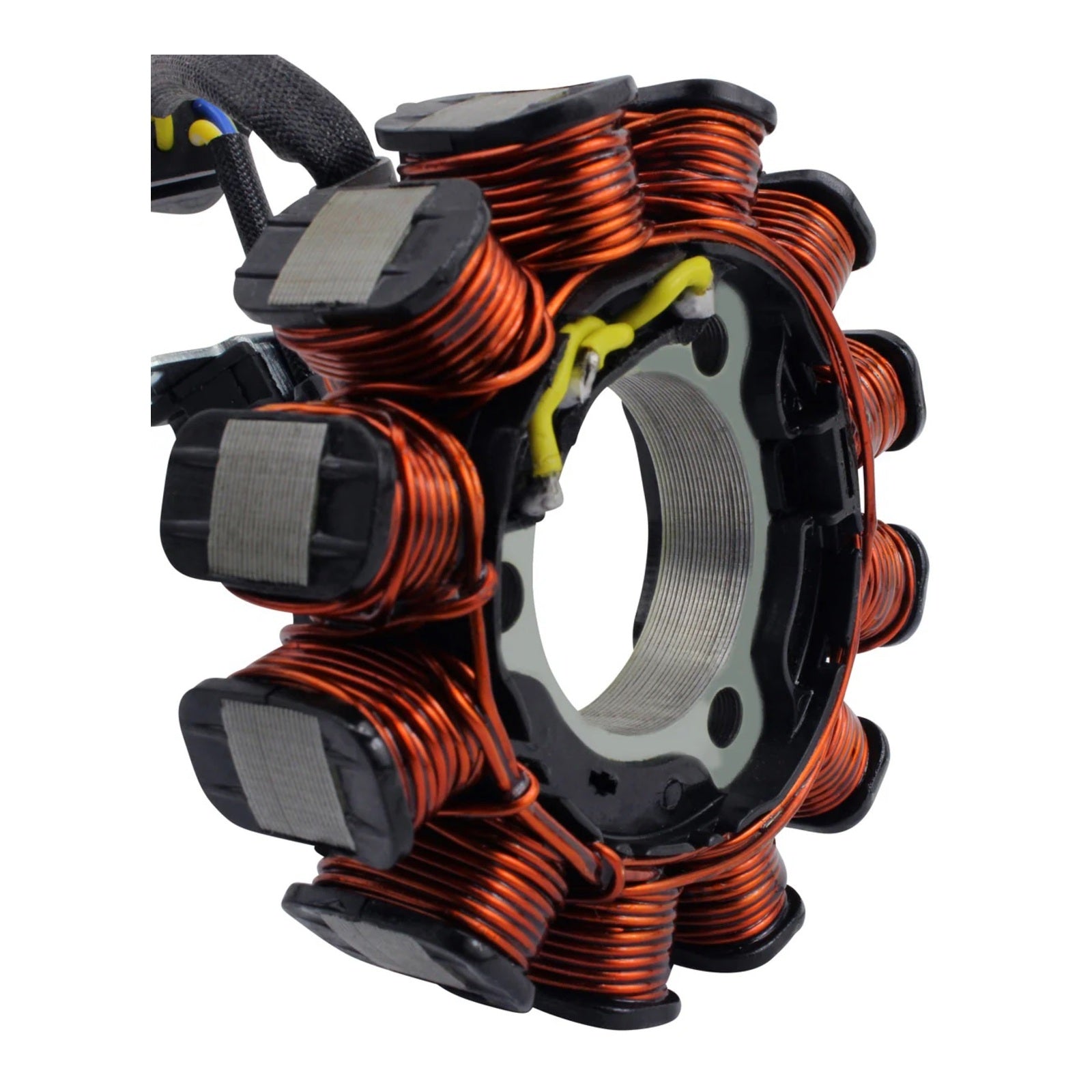

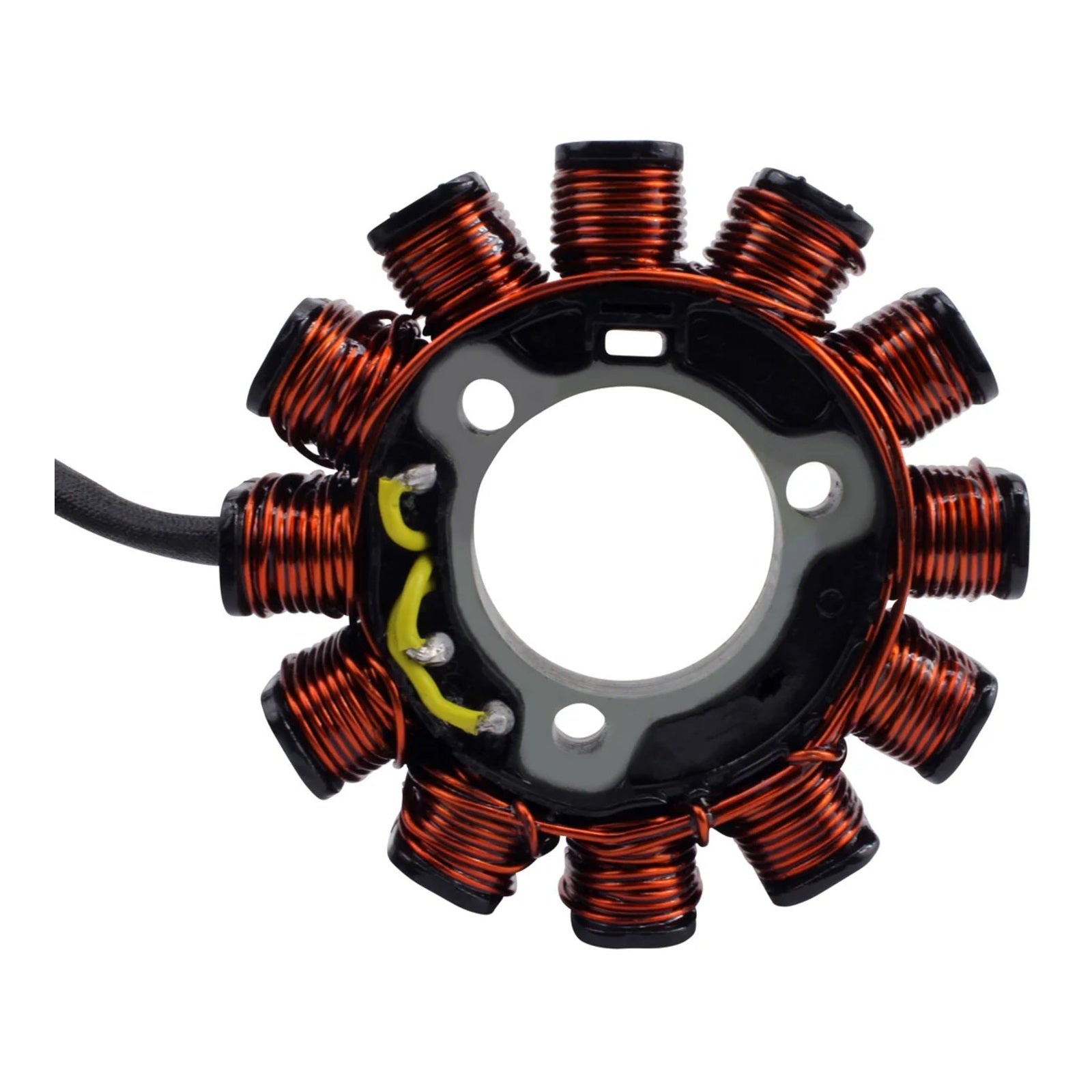

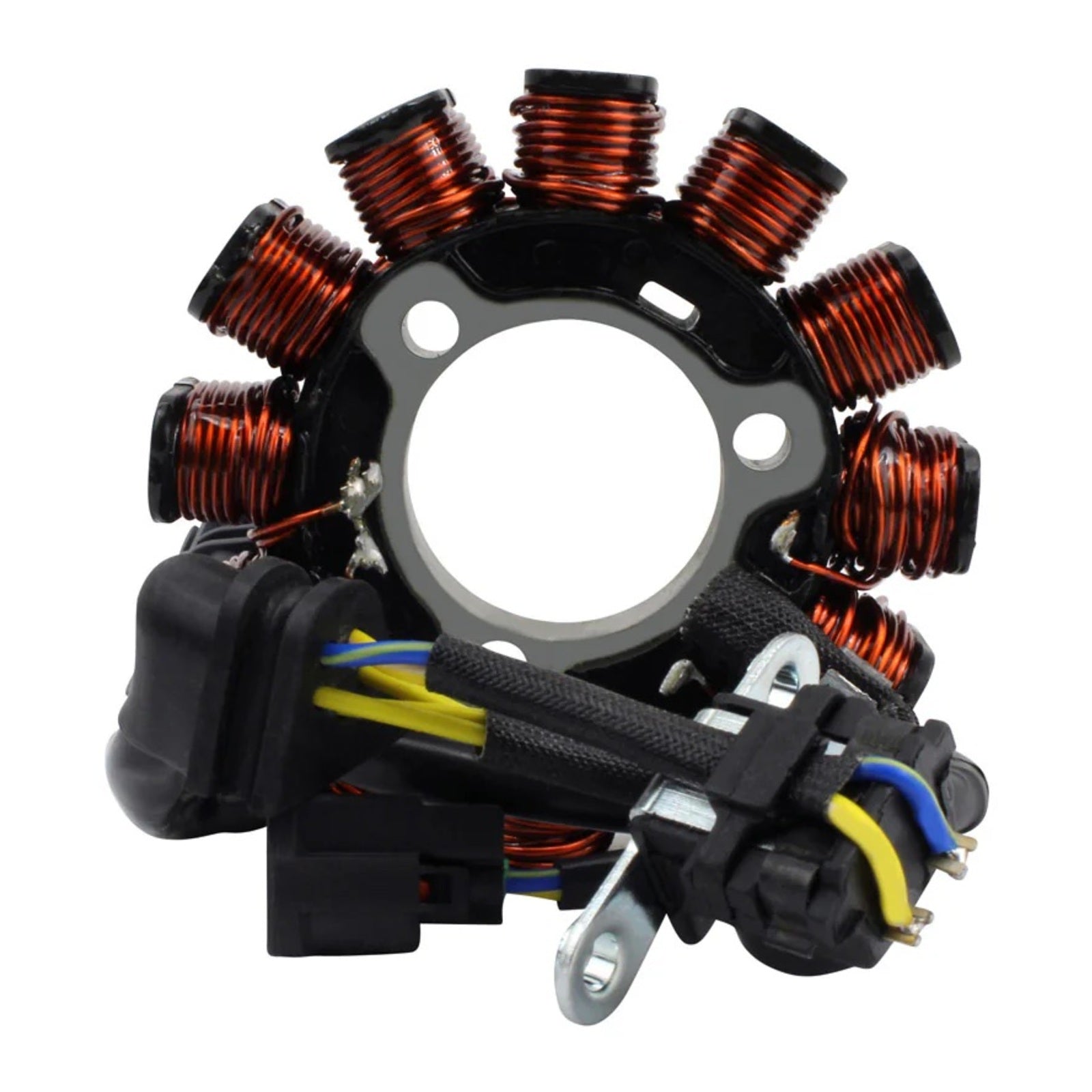

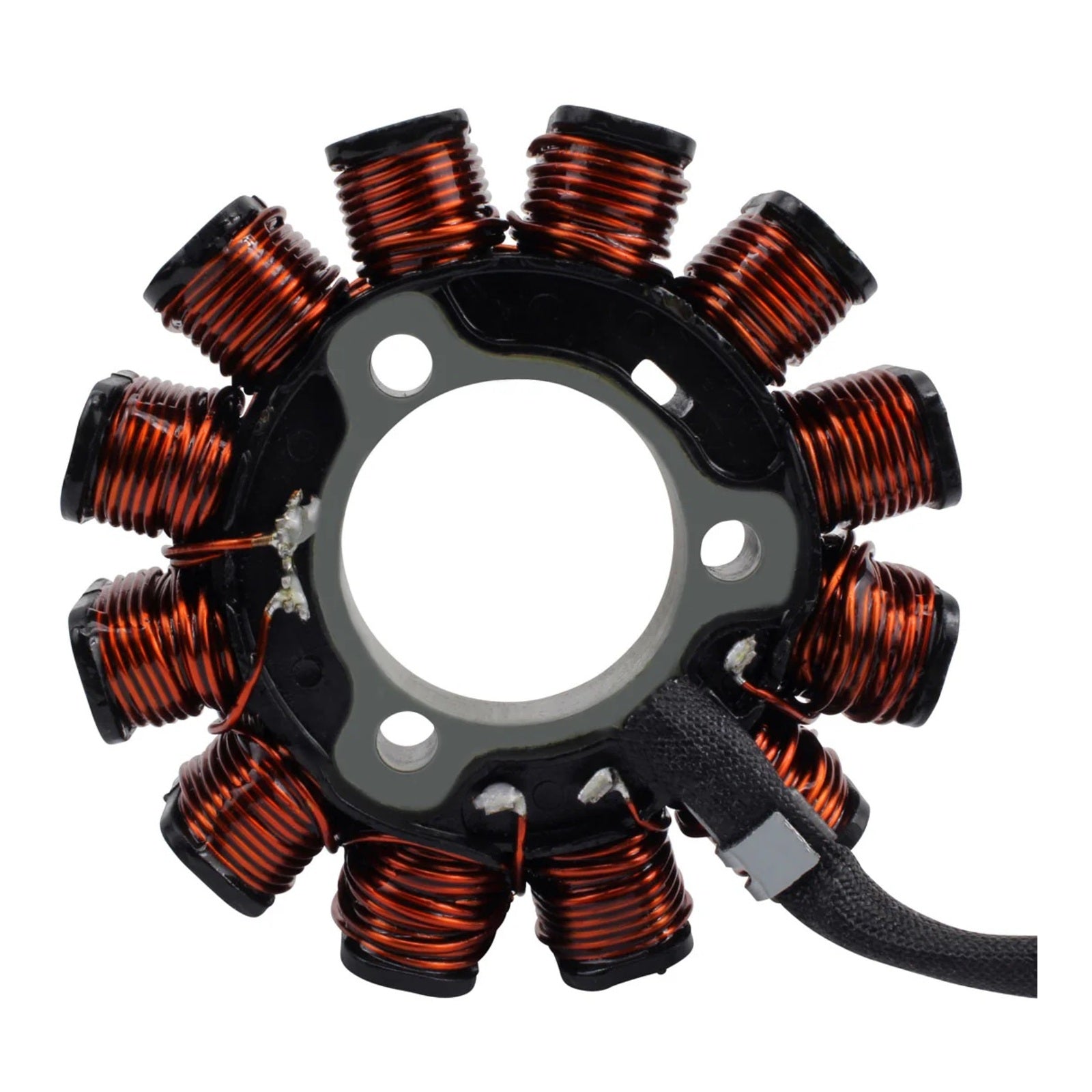

Brand new aftermarket high output stator 200W.
- Direct replacement to the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

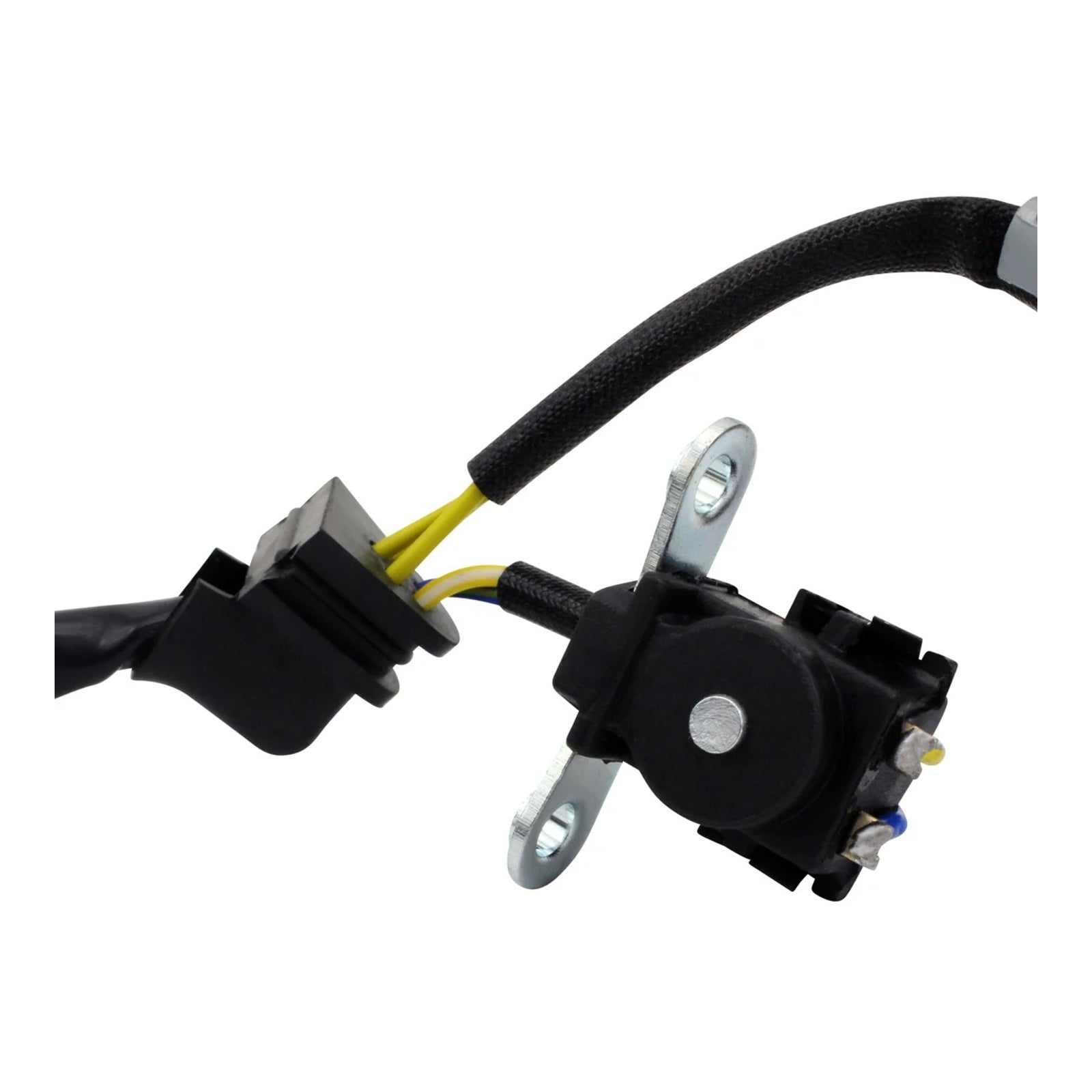

- Pick up pulsar coil included

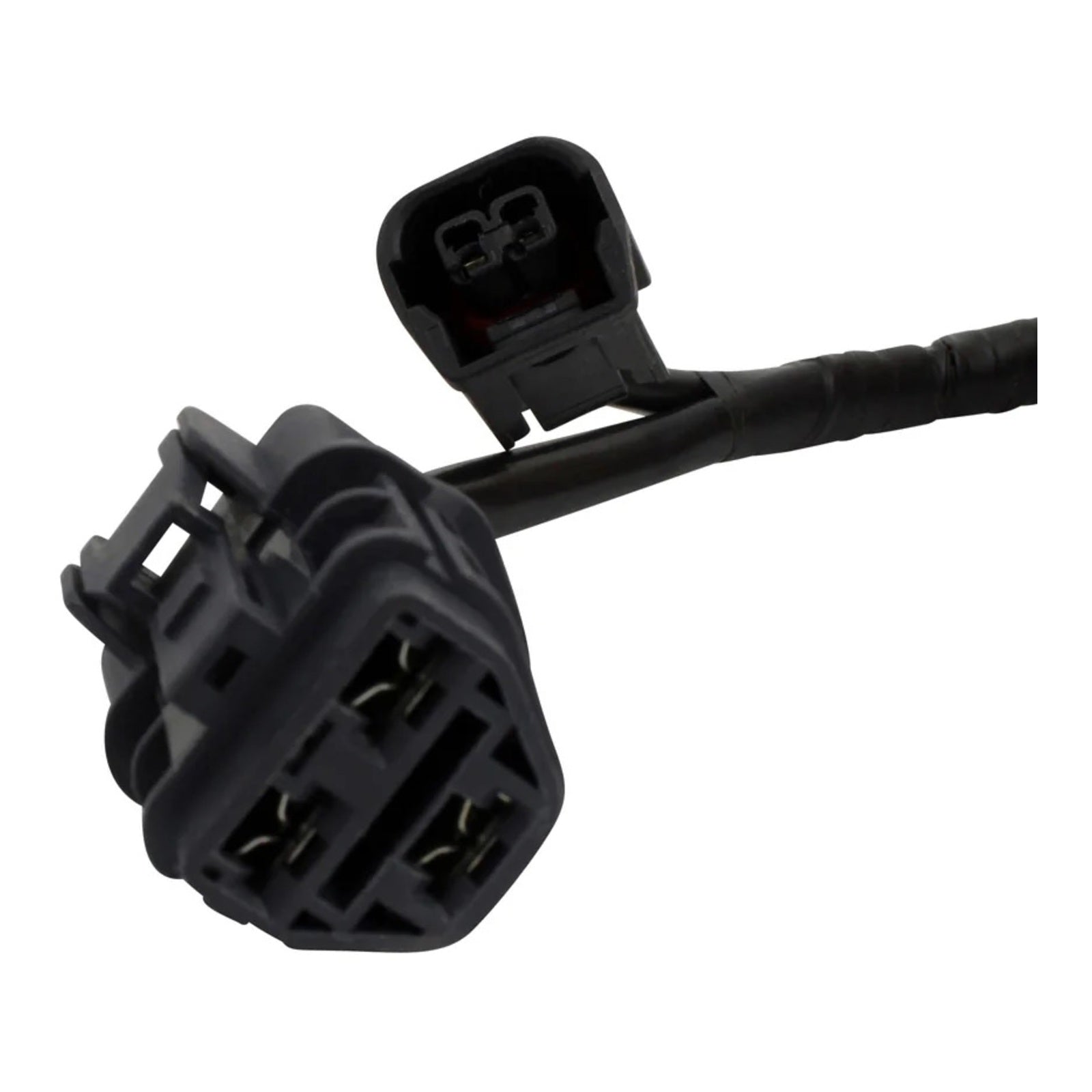

- Connectors included

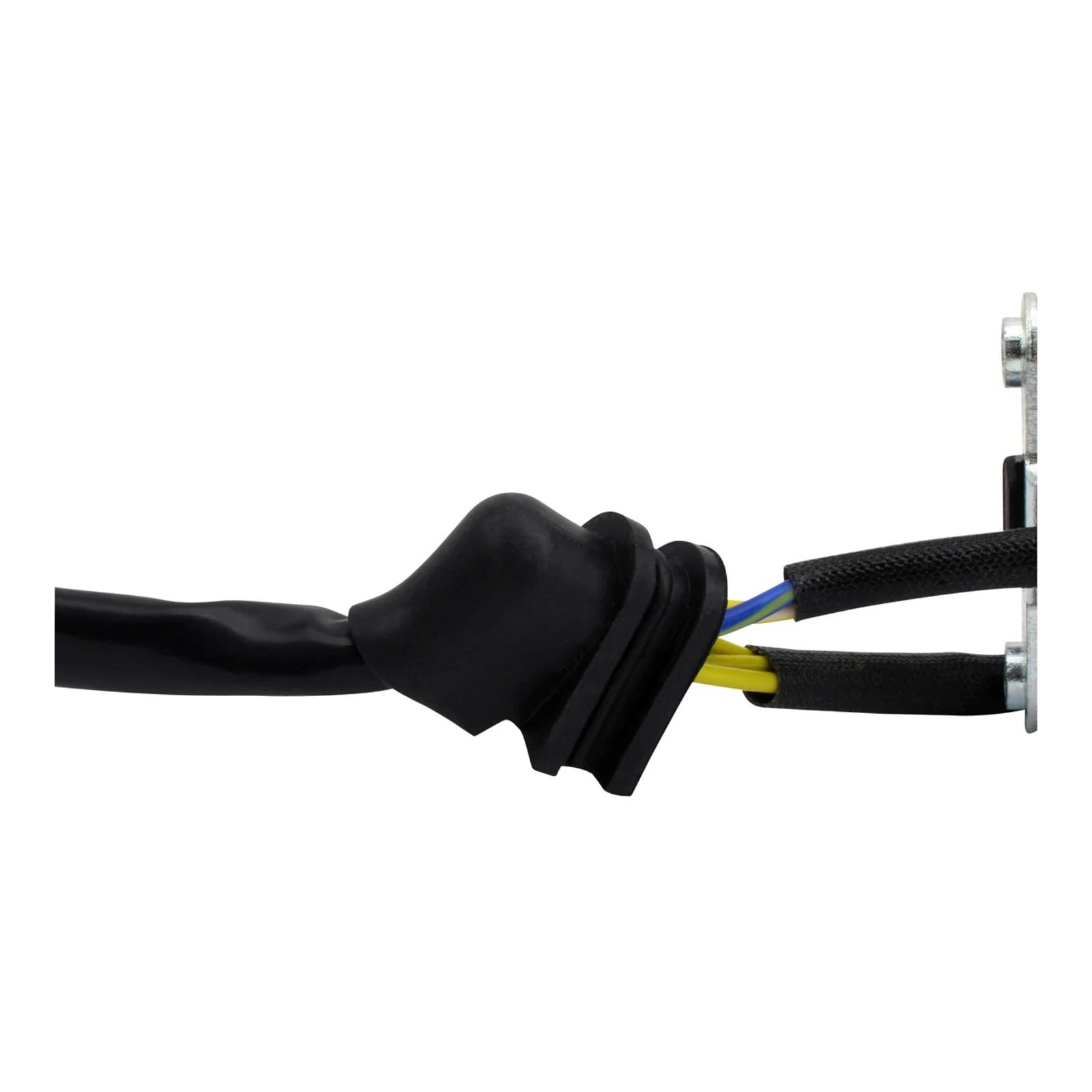

- Rubber grommet included
- All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.
Before installing the new high output stator 200W:
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
The stator might have a different wire colThe code than the original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Interior diameter: 35 mm
- Exterior diameter: 89 mm
- Thickness: 12 mm
- Length of wires stator to grommet: 80 mm
- Length of wires grommet to plug: 250 mm and 310 mm
- Length of pickup coil's wire to grommet: 45 mm
Other specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Number of poles: 12
- Wire to wire resistance:
- Alternator: Yellow to Yellow = 1.3 ohms +/-20%
- Alternator: Yellow to ground = O.L
- Pickup: Blue/Yellow to White/Yellow = 240 ohms +/-20%
