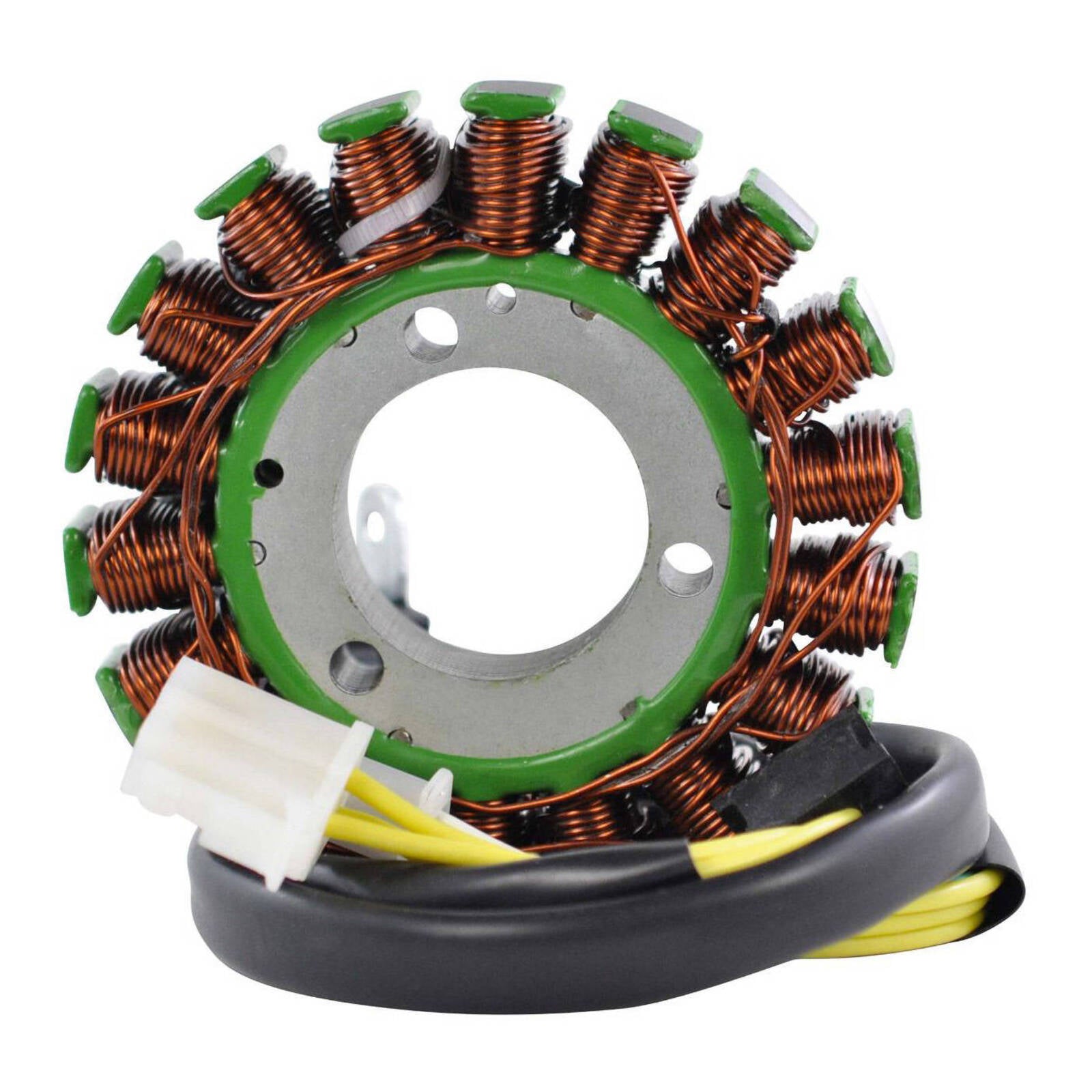

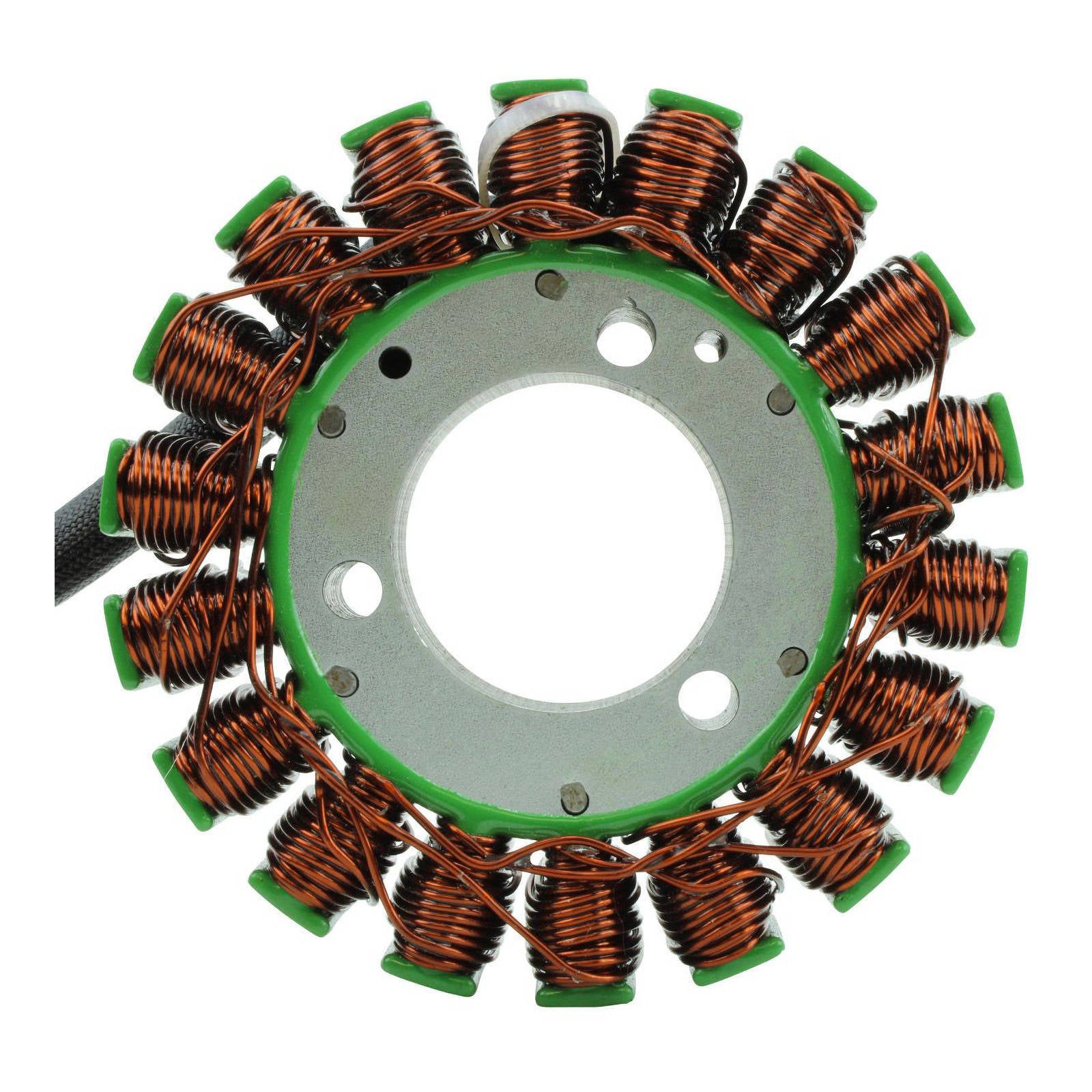

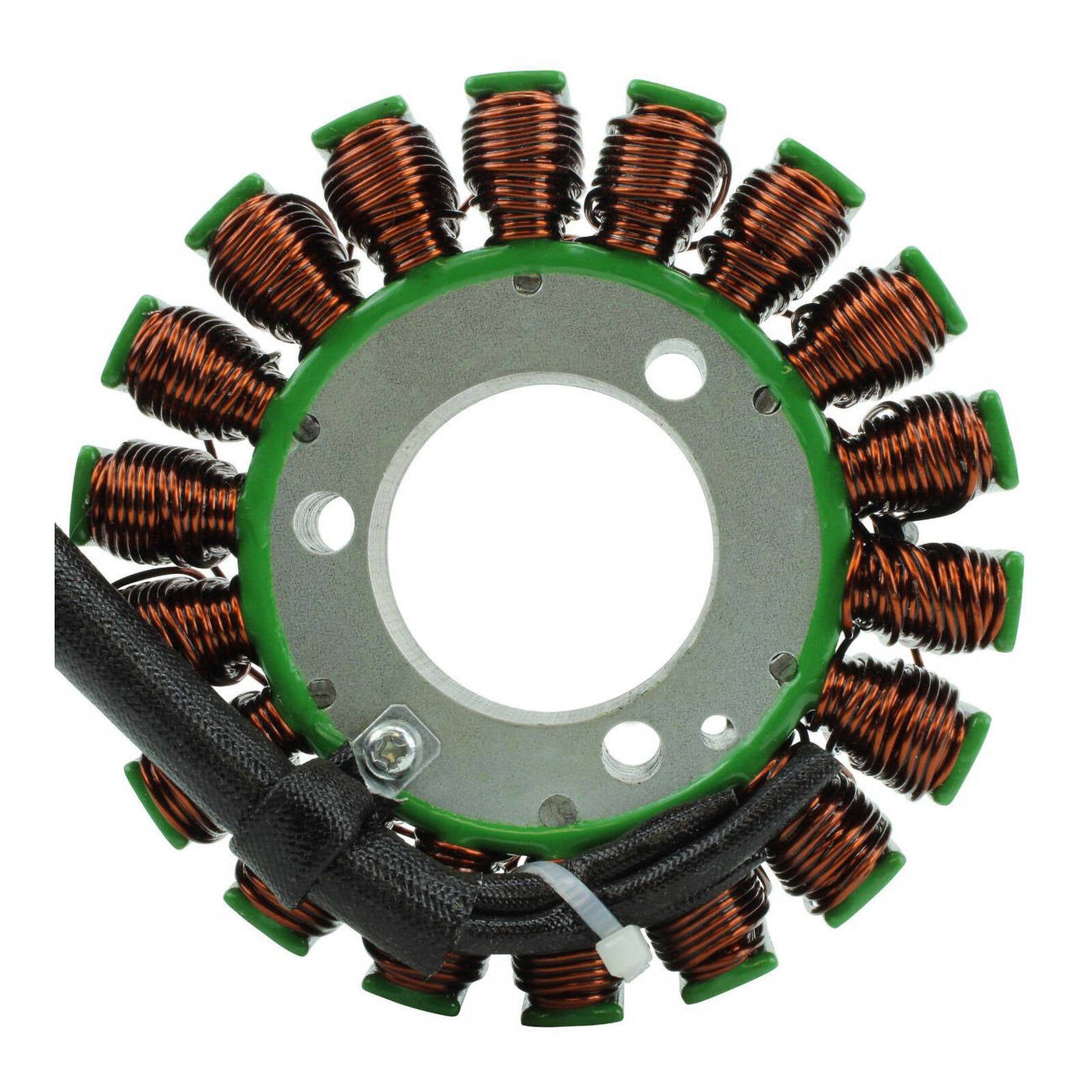

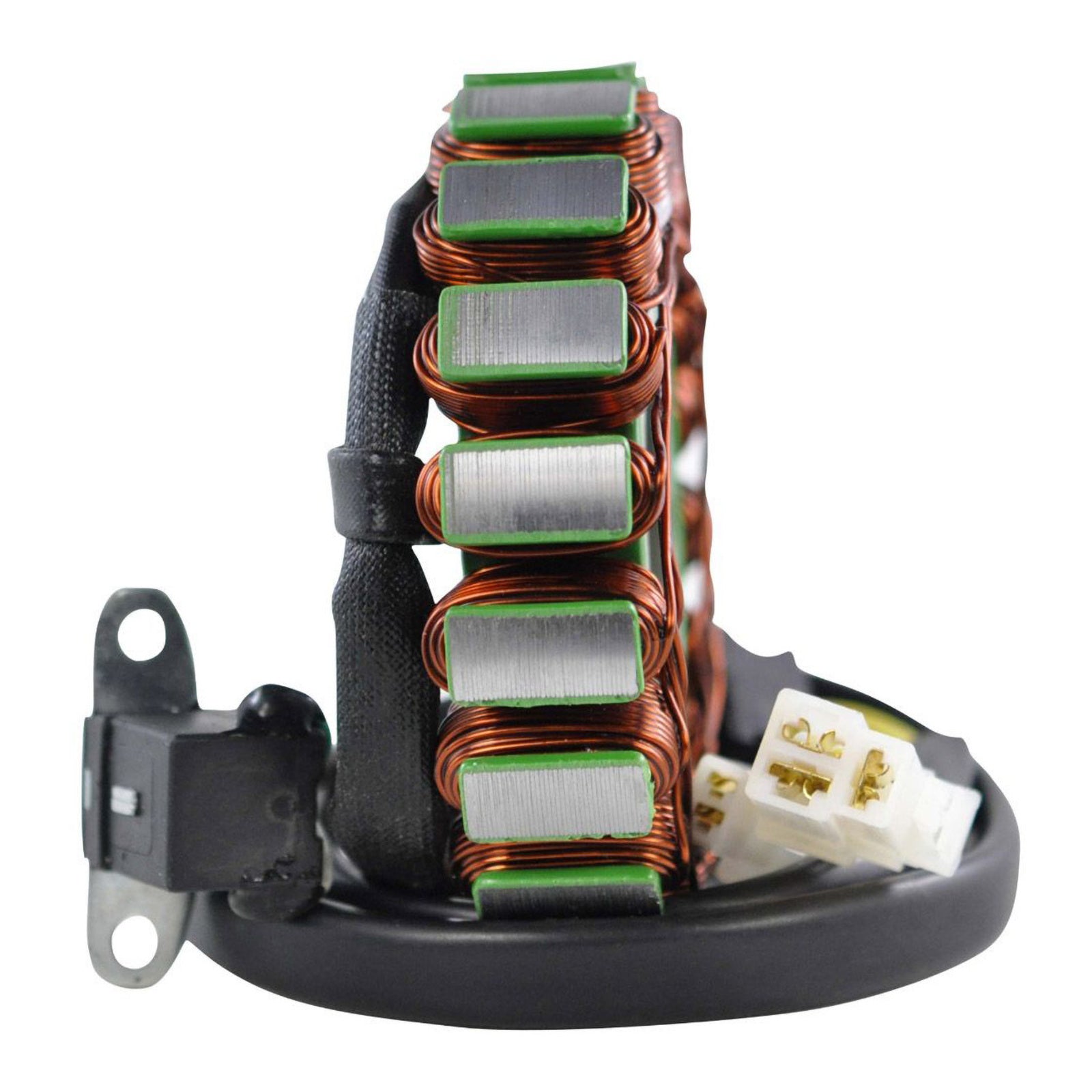

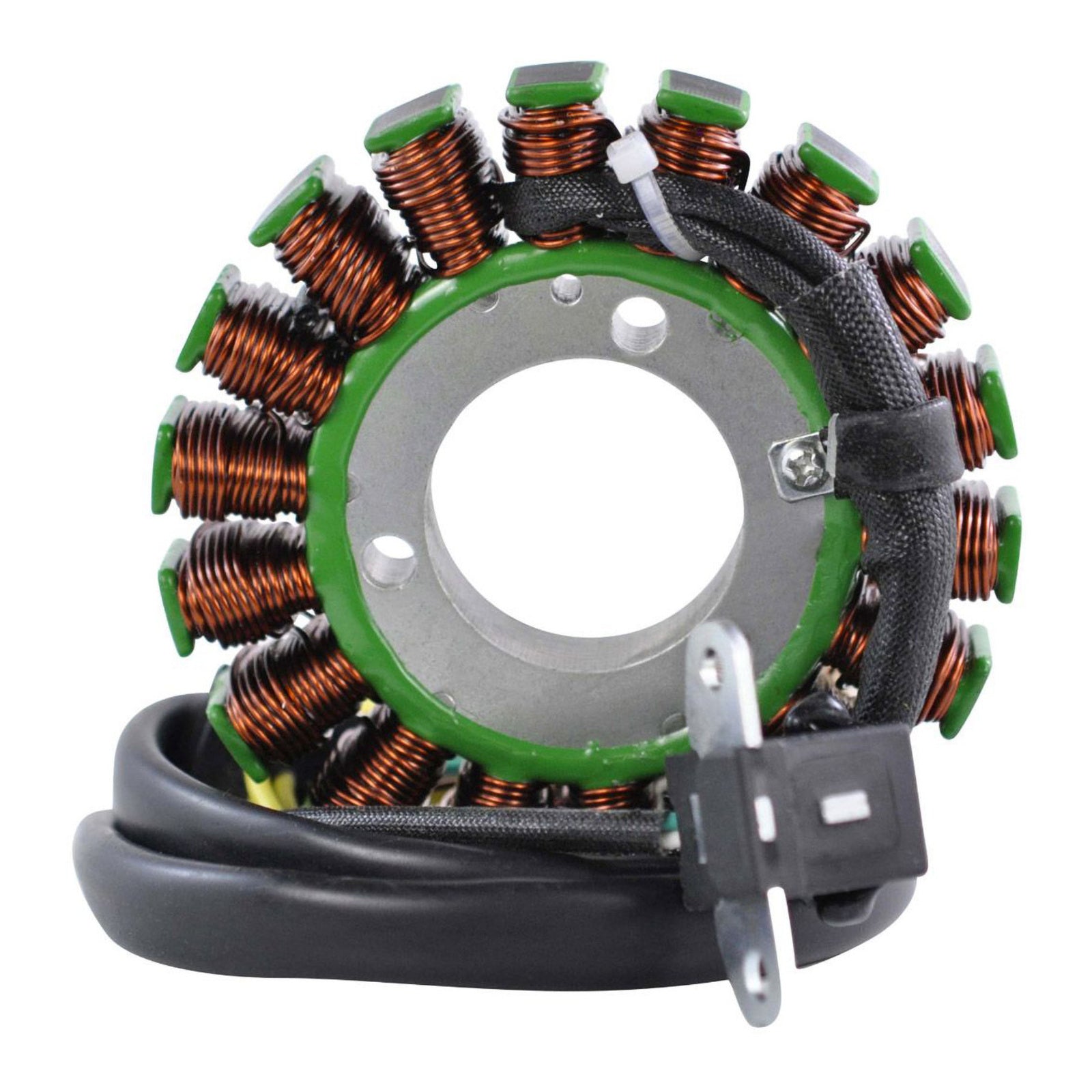

Generator Stator Suzuki SV650 '99-'02 (RM01569)

Plug-and-play replacement generator stator from RM Stator.

Details:

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation

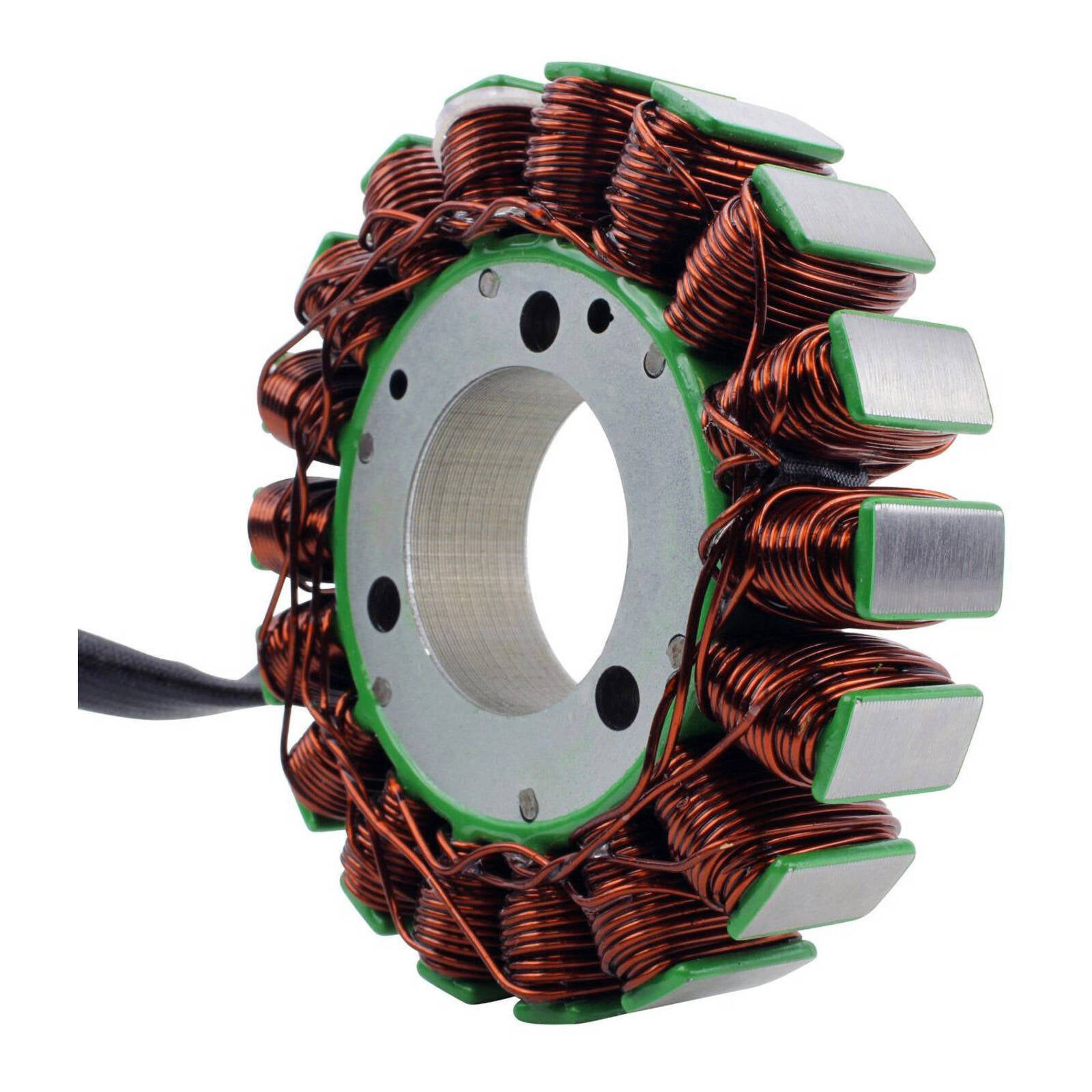

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

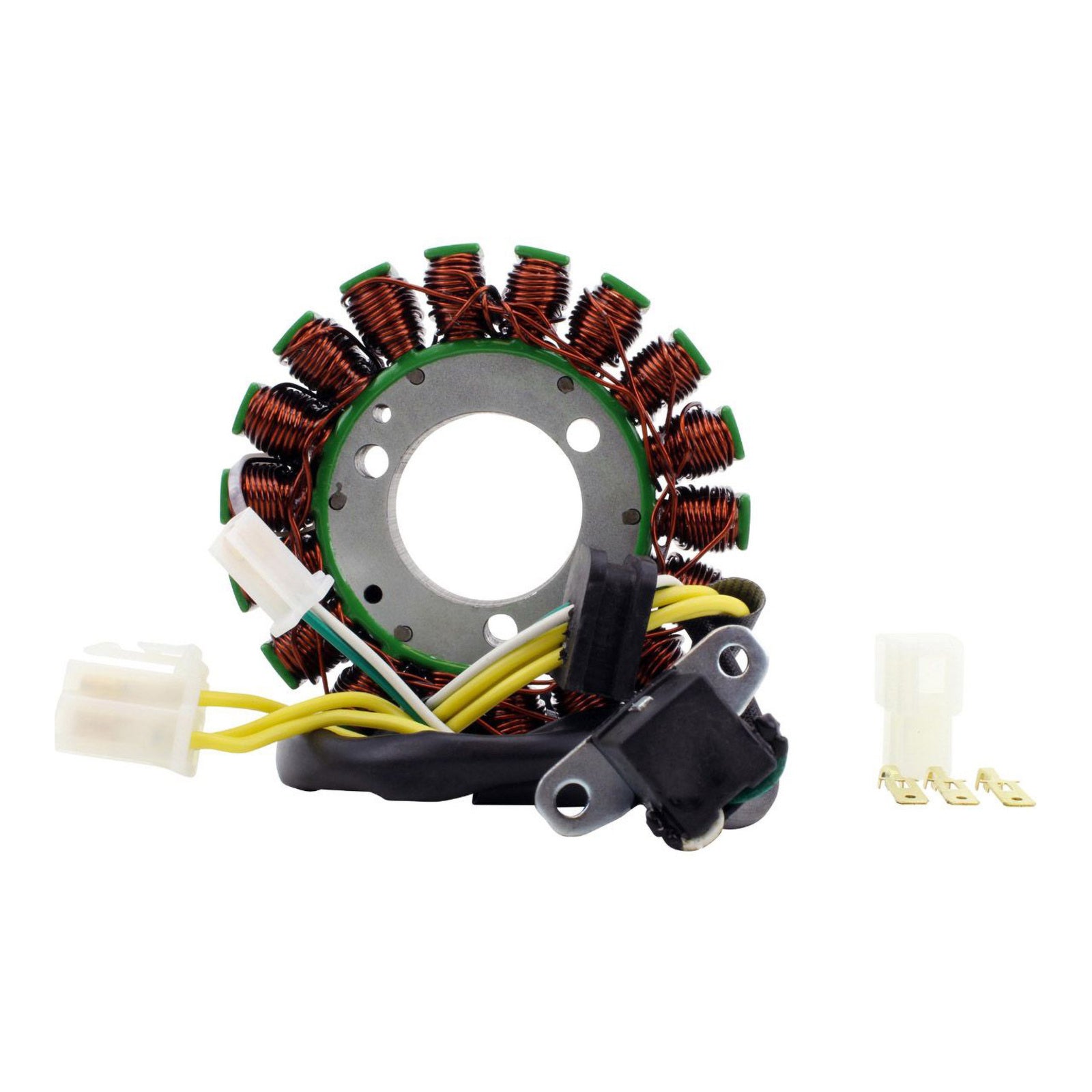

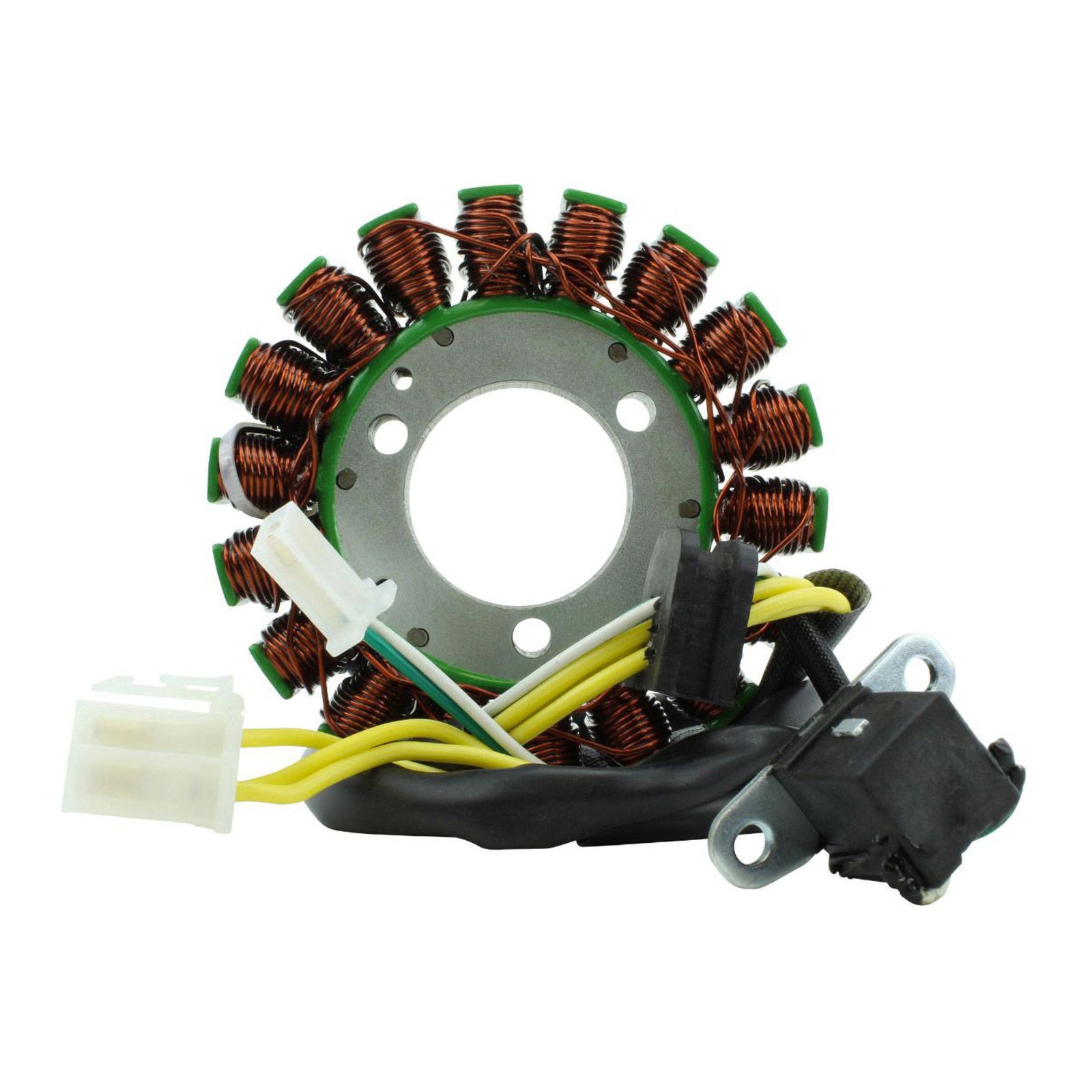

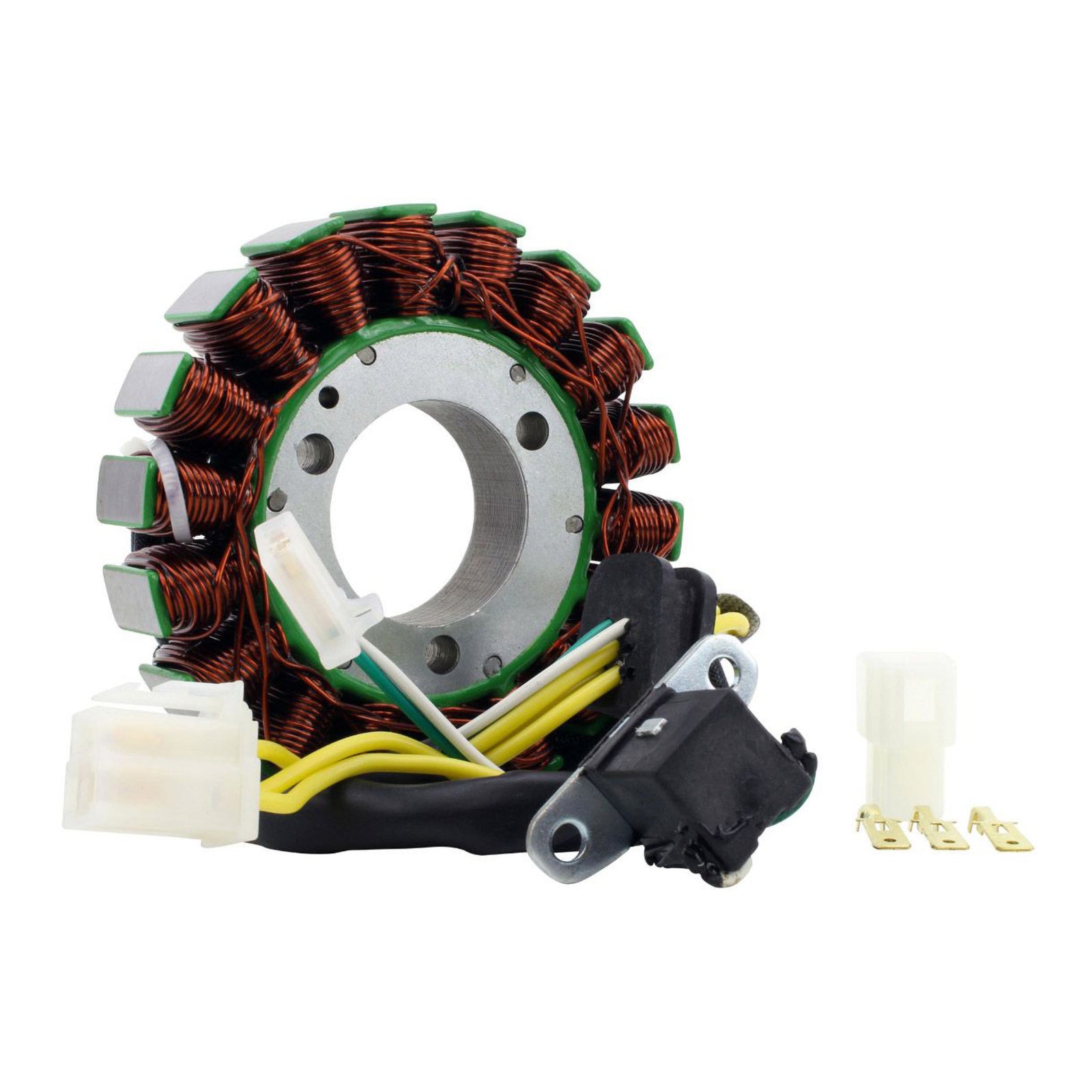

• Pick up pulsar coil included

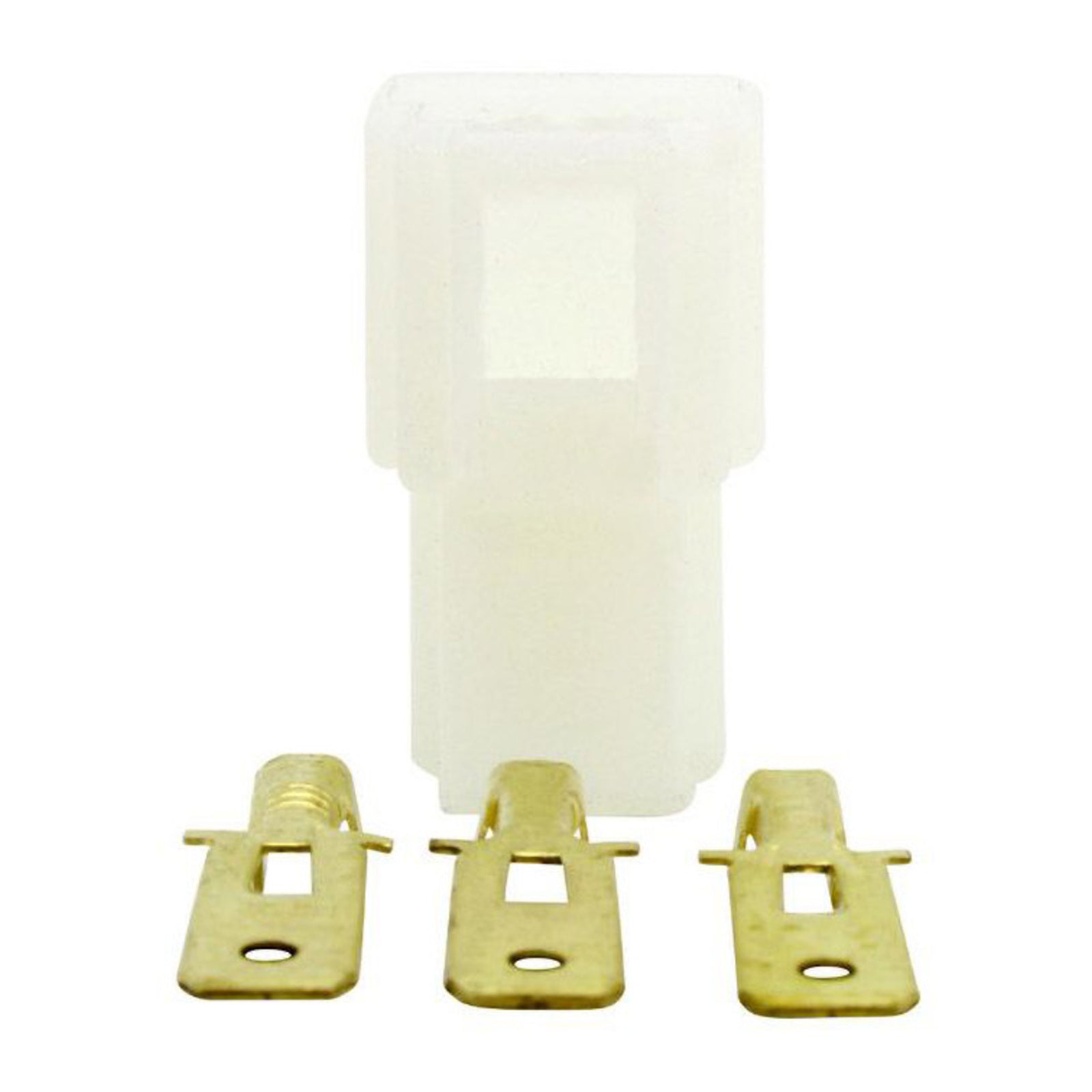

• Connector included
• Rubber grommet included
• All products shipped are tested

Dimensions:

• Interior diameter: 38mm
• Exterior diameter: 105mm
• Thickness: 19mm
• Length of wires stator to grommet: 120mm
• Length of wires grommet to plug: 650mm
• Length of pickup coil's wire to grommet: 60mm

Other specifications:

• Number of wires: 5

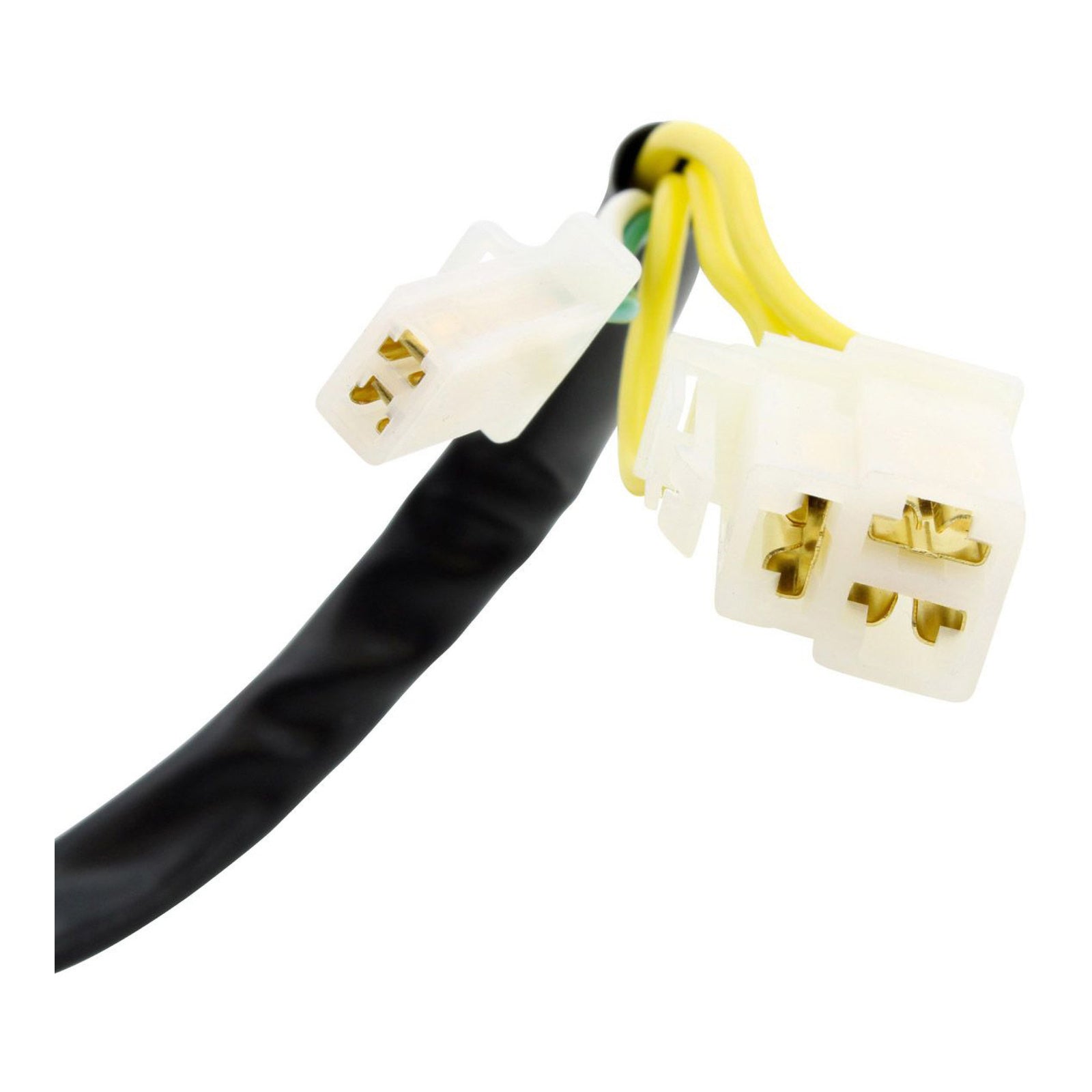

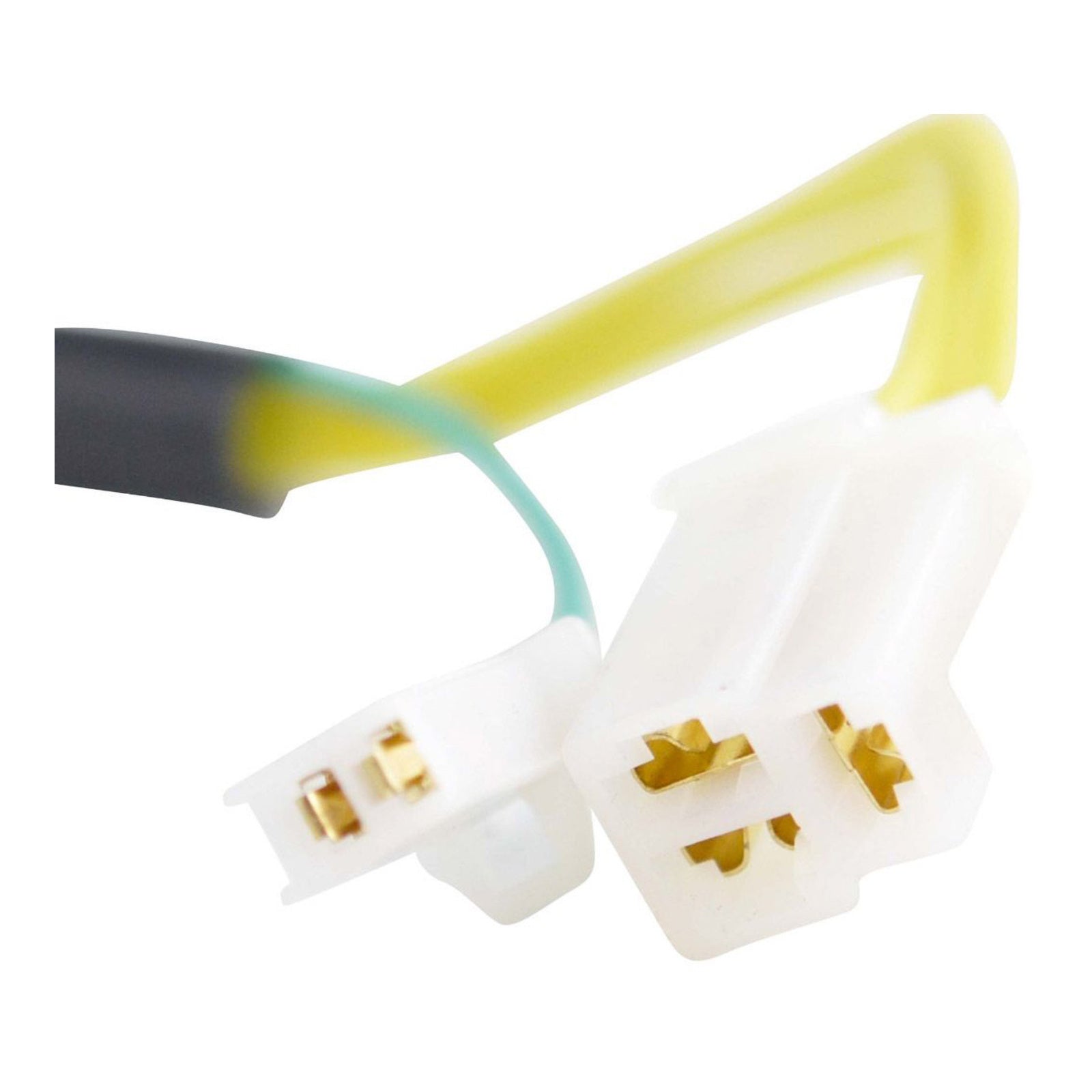

• Number of plugs: 2
• Number of pins: 5
• Wire-to-wire resistance:
  • Alternator: Yellow to Yellow = 0.7 ohms +-20%
  • Pickup: Green to White = 195 ohms +/-20%
