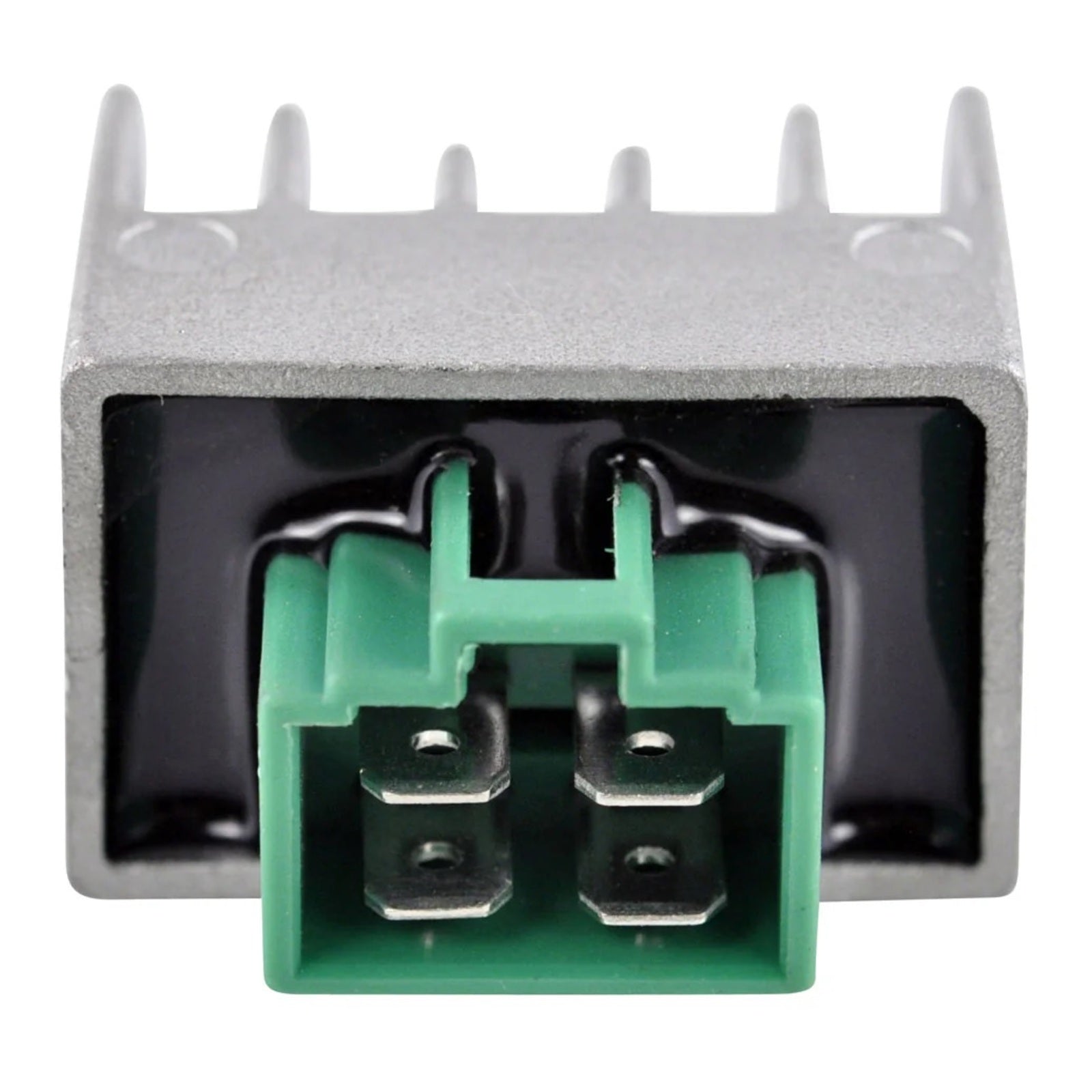

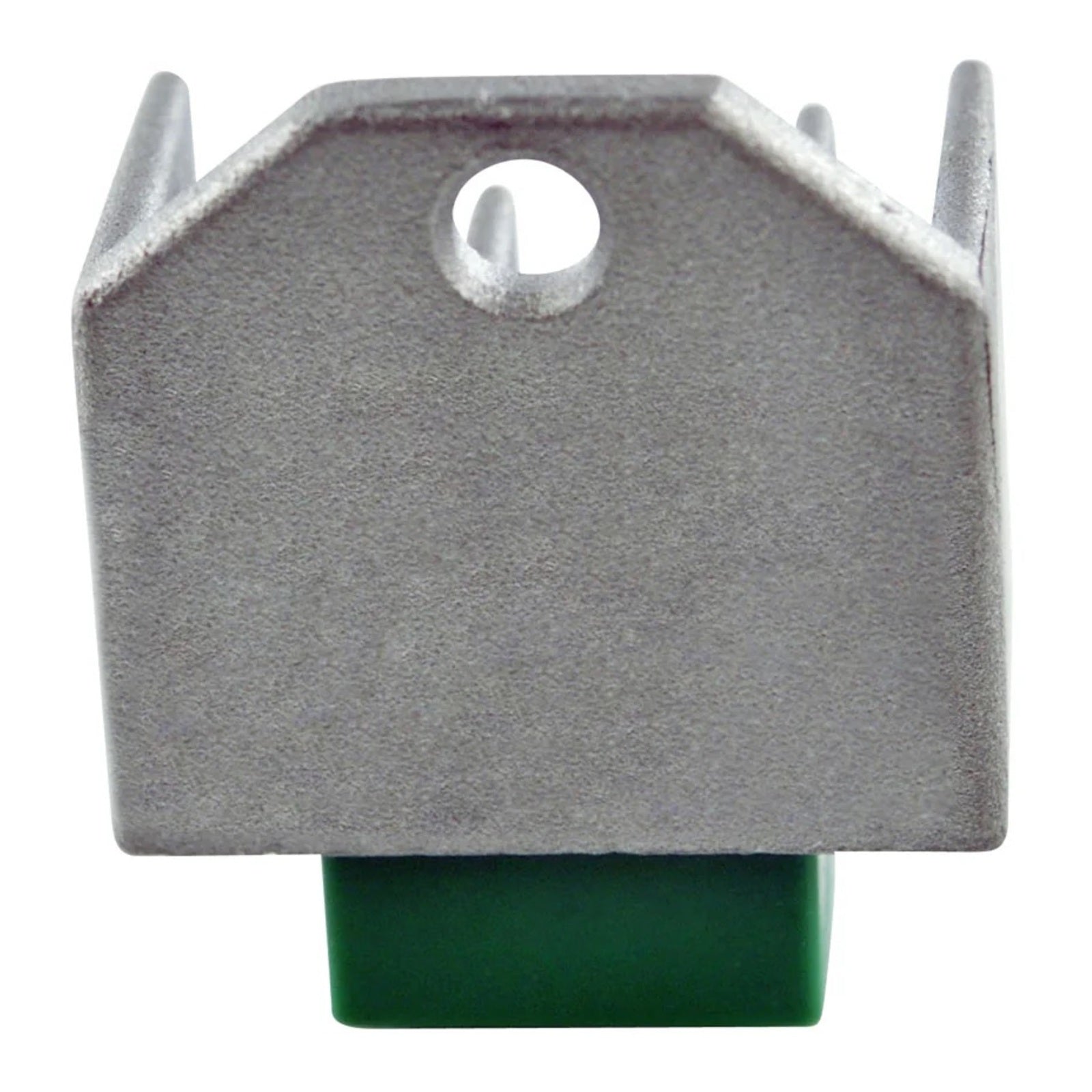

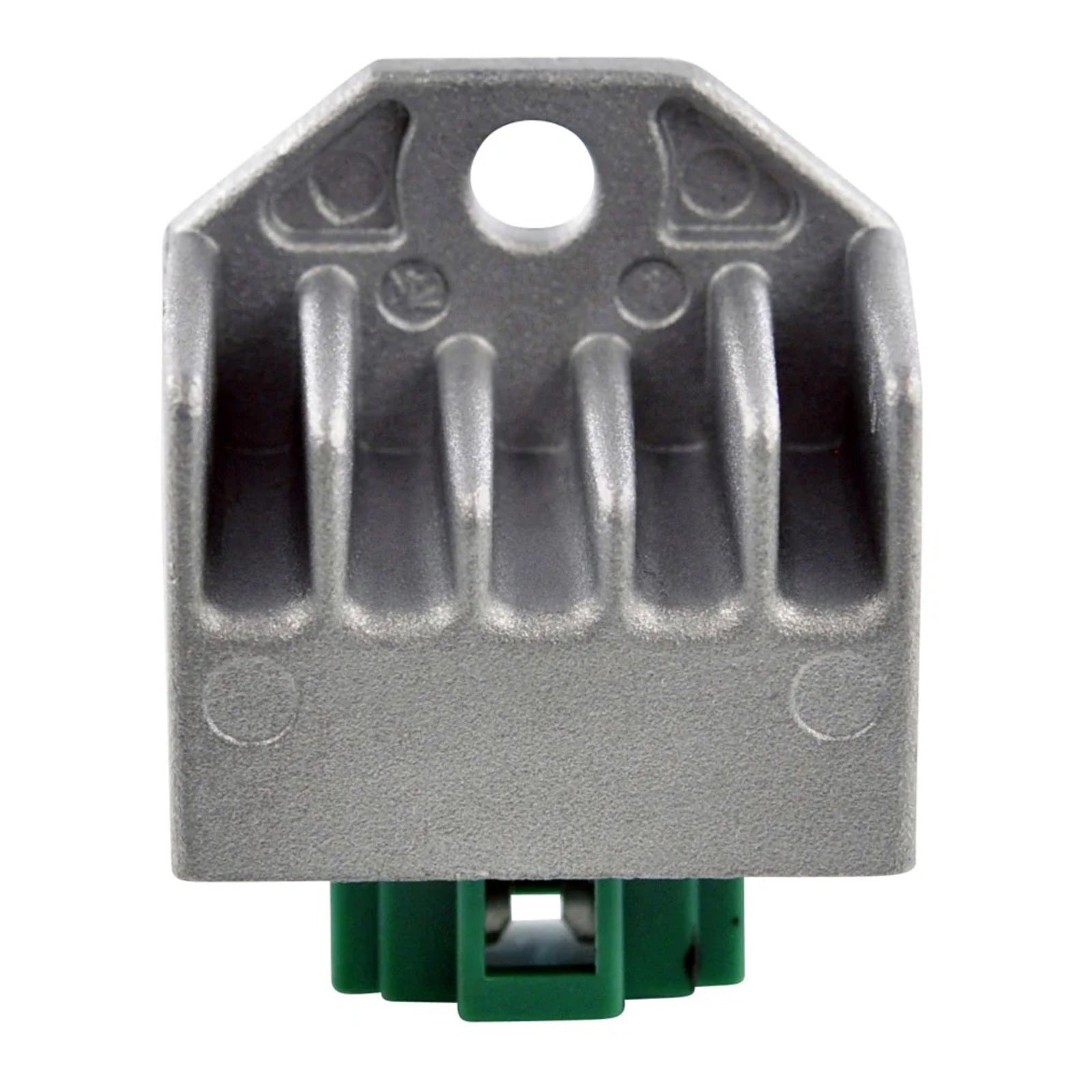

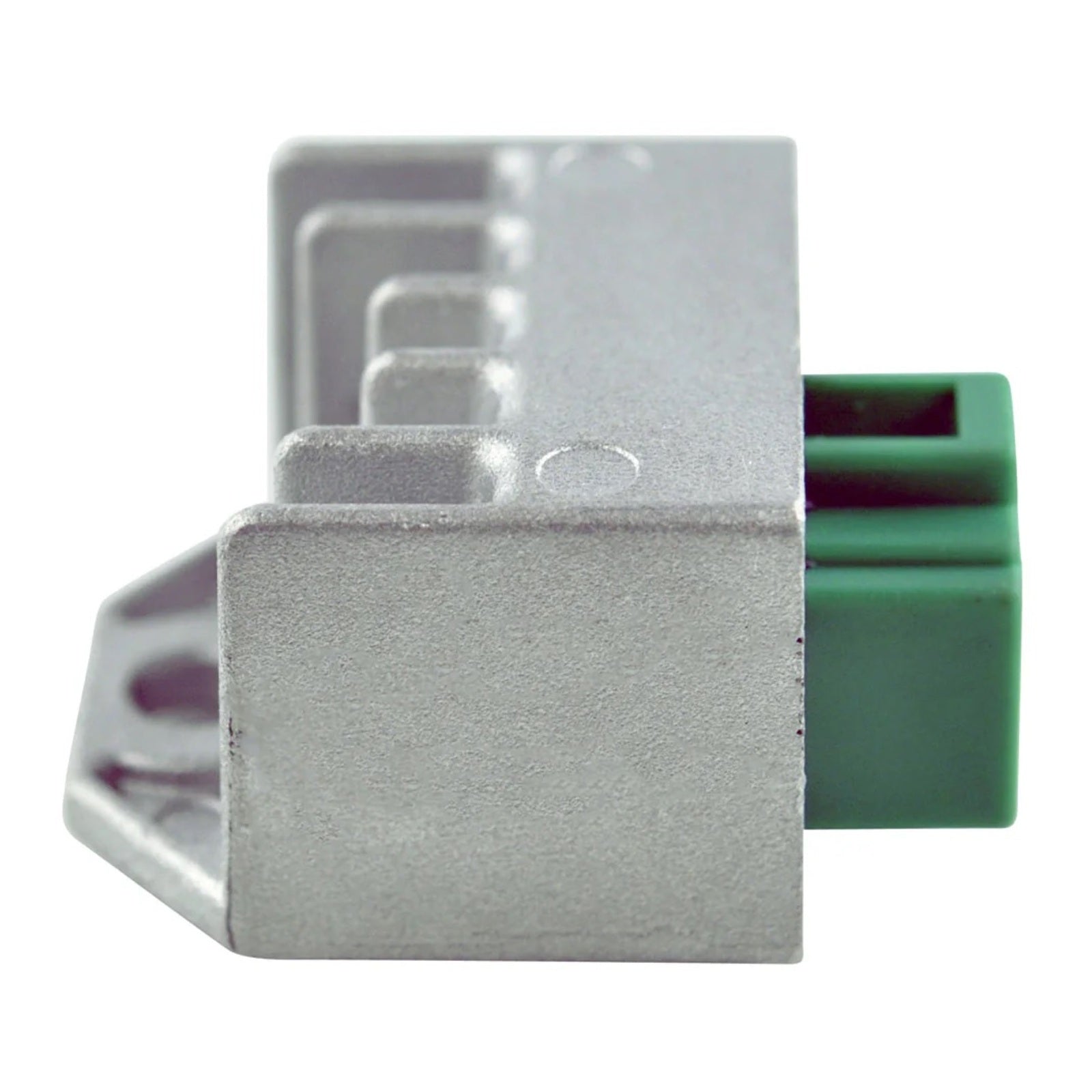

Voltage Regulator Yamaha TTR110 / 125 / 230 / KAW KLX140 / 450R '95-'24
Voltage Regulator Yamaha TTR110 / 125 / 230 / KAW KLX140 / 450R '95-'24
RMSTATOR
Brand new aftermarket voltage regulator rectifier.
- Direct replacement to the original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required.
- Higher grade of electric components.
- The quality exceeds the OEM equipment.
- All products shipped are tested.
We have even included the opposite connector (main harness side) as we know these are often melted, corroded, defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.
Before installing the new voltage regulator rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator rectifier.
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Width: 41 mm
- Length: 50 mm
- Height: 27 mm
Other specifications:
- Number of plugs: 1
- Number of pins: 4
- Minimum Charging Voltage: 14.5 V +/- 0.5 V
- Maximum Charging Current: 20 A / 150 W
- Open Circuit Voltage: < 15 V
- Operation Temperature: -20°C to 85°C
