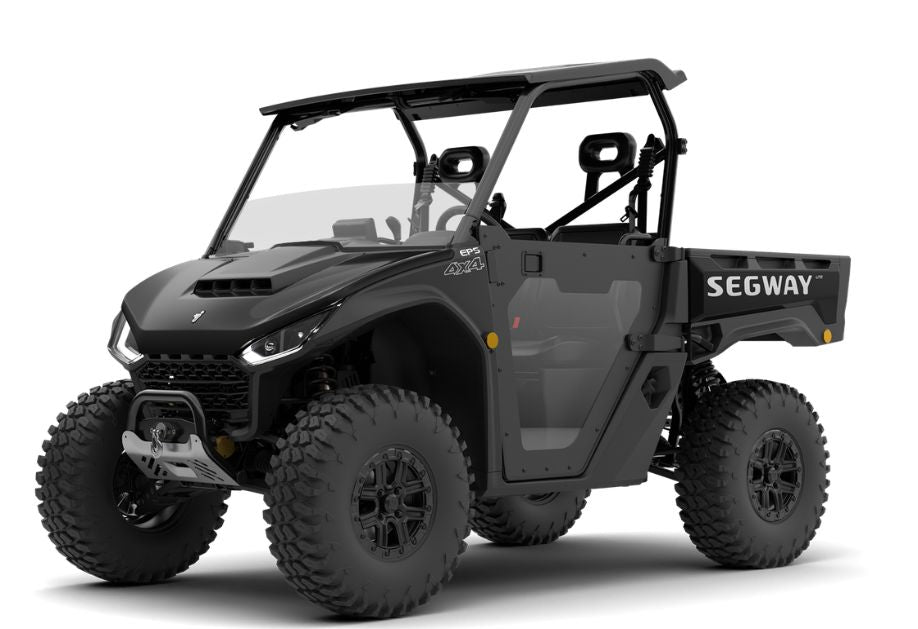

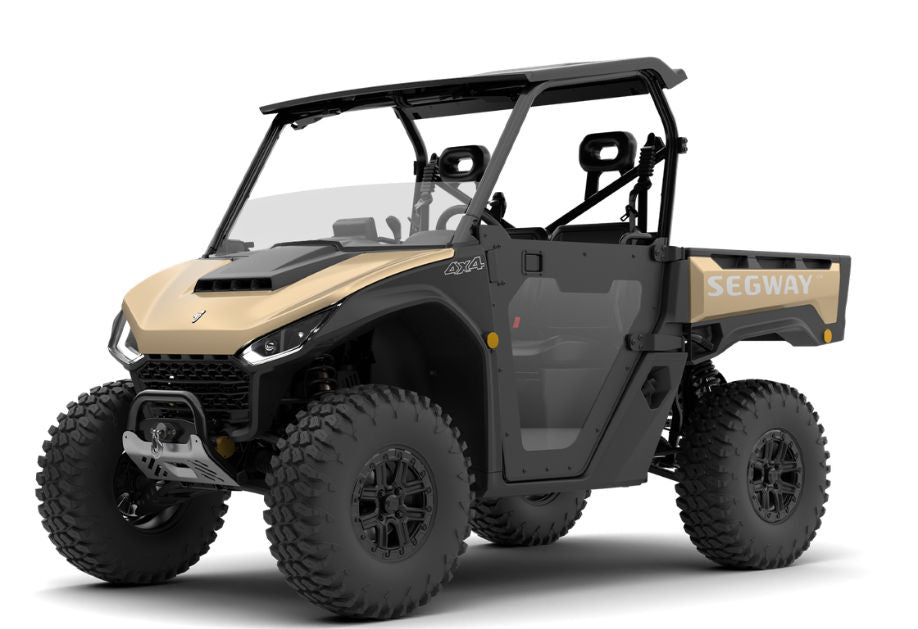

Segway Fugleman UT6 Navigator

Segway Fugleman UT6 Navigator

The Segway UT6 Navigator is the fully loaded version of the UT6 farm side-by-side. It comes with: A 4500lb winch 30" tyres on beadlock alloys Front and rear diff locks A touchscreen and reverse camera A windscreen and half doors It’s ready to work straight off the floor, with no accessories to add. TrueTimber Prairie Camo is an extra $345. Price Includes GST
Body color: Black
$23,564.00 NZD
$23,564.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Book a Test Ride Calculate Payments
View full details

Bigger tyres, more clearance. The Navigator runs larger 30-inch tyres giving it 350mm of ground clearance. That lets it get over logs, ruts and rocks that would catch a lower machine. The wheels are beadlocks, which clamp the tyre to the rim so it won’t come off when you drop the pressure for extra grip in mud or on hills.

Feature Image 1
Feature Image 2

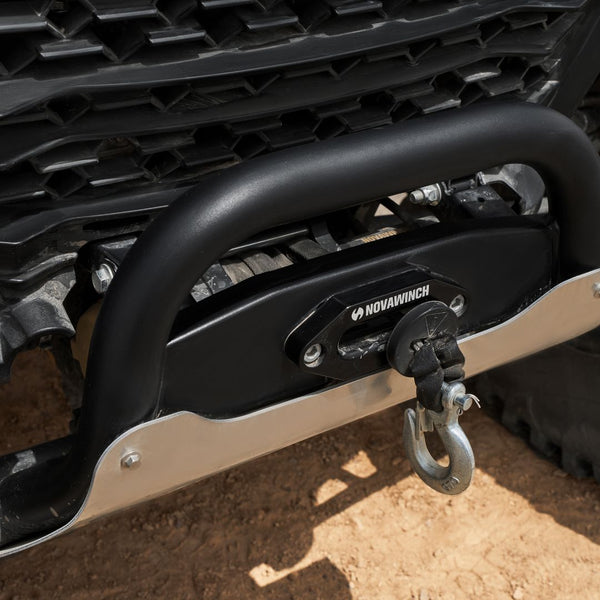

Built to get itself unstuck. Both the front and rear diffs can be locked with a switch. That forces all four wheels to turn together, so the machine keeps pulling when one wheel loses grip. If that still isn’t enough, there’s a 4500lb winch on the front. It uses synthetic rope, which is lighter and safer than steel cable if it snaps.

More comfort and visibility in the cab. The Navigator is the only UT6 with a touchscreen and reverse camera, which makes backing up to trailers, gates and sheds far easier.

Feature Image 1
Segway Fugleman UT6 Navigator – Specifications
Specification Detail
Engine
Engine Type 567cc, 4-stroke, single-cylinder, DOHC
Power 44 hp
Torque 50 Nm
Fuel System Bosch electronic fuel injection
Cooling Liquid cooled with oil heat exchanger and oil-jet piston cooling
0–60 km/h 4.6 seconds
Drivetrain
Transmission CVTech (Canada) CVT
Drive Modes 2WD / 4WD / 4WD diff lock
Differential Locks Front and rear switchable
Climbing Angle 35°
Chassis & Suspension
Frame High-strength chromoly steel
Steering Smart EPS (electronic power steering), 3 modes: Standard / Comfort / Sport
Front Suspension Dual A-arm, 231 mm (9.1") travel
Rear Suspension Dual A-arm IRS, 264 mm (10.4") travel
Shocks Adjustable hydraulic
Wheels, Tyres & Brakes
Wheels 14" alloy with beadlock
Tyres 30x10 R14, 6-ply (front and rear)
Brakes 4-wheel hydraulic disc
Dimensions & Capacities
Length x Width x Height 3050 x 1600 x 1950 mm
Wheelbase 2110 mm
Ground Clearance 350 mm
Kerb Weight 750 kg
Seating 3
Payload Capacity 682 kg
Cargo Bed 412 L tilting tray, 454 kg max load
Towing Capacity 550 kg unbraked / 700 kg braked
Fuel Capacity 43 L
Glove Box 15 L
Features & Equipment
Winch 4500 lb with synthetic rope
Display TFT dash with touchscreen
Reverse Camera Standard
Cab Protection Roof, half polycarbonate windscreen, plastic half doors
Lighting Halogen headlights with DRL, indicators
Mirrors Rear-view mirrors
Connectivity T-Box with Segway Smart Moving App (vehicle data, location, crash/rollover SOS alert)
Towing Tow hitch and ball standard
Warranty 24-month limited warranty
Colours Mountain Green, Bold Black, Desert Sand, TrueTimber Prairie Camo
