Segway Snarler AT5 L EPS

Segway Snarler AT5 L EPS

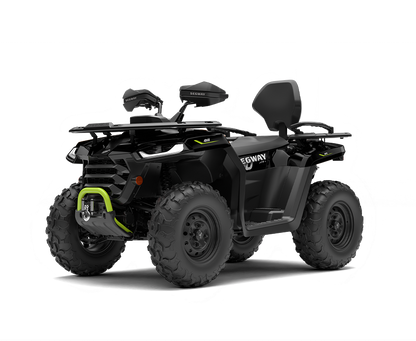

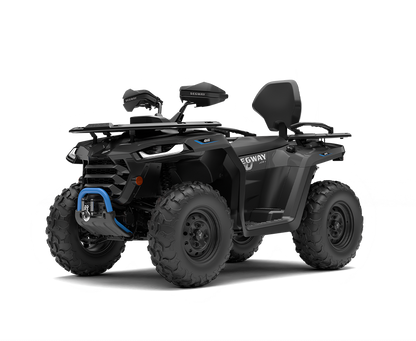

The Segway AT5 L EPS is a long-wheelbase, two-seat quad with electric power steering and a 2,500 lb winch fitted. It makes 39 hp, has switchable 2WD/4WD/4WD lock, four-wheel disc brakes, a 270 kg payload and 612 kg braked towing capacity. It comes in Green/Black or Grey/Blue with a 24-month warranty. Price Includes GST
Body color: Gray
$13,444.00 NZD
$13,444.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Book a Test Ride Calculate Payments
View full details

A two-seat quad with the work gear fitted. The AT5 L EPS is the long-wheelbase version of the AT5, built to carry a rider and a passenger. It has a passenger seat with backrest, and a payload of 270 kg, compared with 185 kg on the single-seat AT5 S models. Under the seat is a 499cc liquid-cooled engine making 39 hp and 44 Nm of torque. Electric power steering keeps the bars light on rough ground, and a 2,500 lb winch is fitted to recover you or a load from mud or a steep spot.

Feature Image 1
Feature Image 2

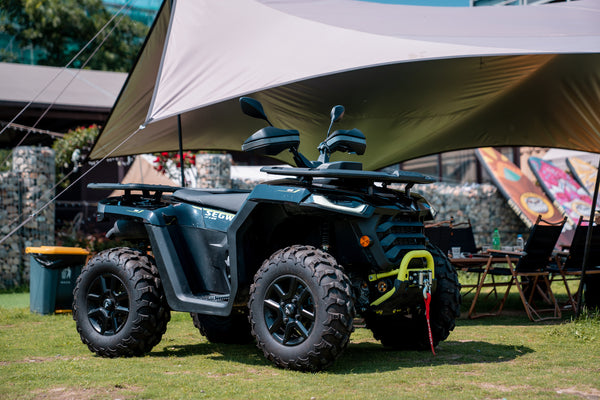

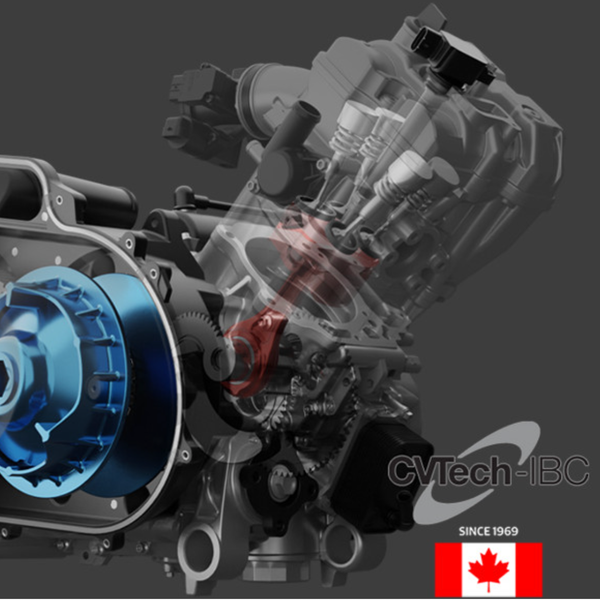

Longer, steadier and easy to ride. The wheelbase is 1.45 m, which gives it a more stable ride than the shorter AT5 S, and the 25″ tyres add a little more grip and clearance. Ground clearance is 250 mm, with 180 mm / 210 mm of front and rear suspension travel. You pick 2WD, 4WD or 4WD lock, and the front differential is switchable. The CVTech automatic transmission means no clutch or gear changes, so it’s simple for new riders and quick to jump on and off. Four-wheel hydraulic disc brakes give you strong stopping power.

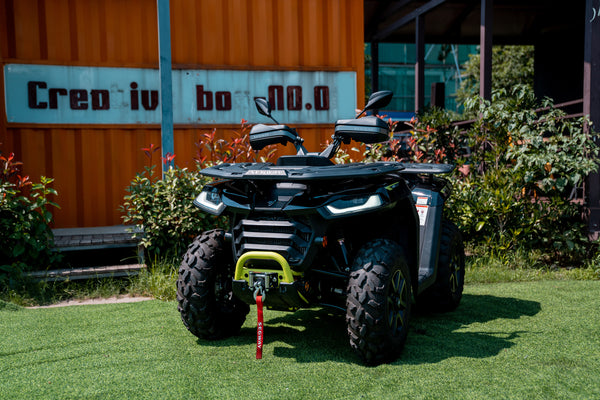

Ready for work, with safety tech built in. It tows up to 612 kg on a braked trailer, and has front and rear steel racks (40 kg / 60 kg), a hitch ball, a front bumper and a handlebar guard fitted. The T-Box and Smart Moving App let you check vehicle data and location. If the quad rolls or has a serious collision, the app sends an SMS with your location to your emergency contact. It’s available in Green/Black or Grey/Blue, with a 24-month limited warranty and support from Segway’s NZ dealer and service network.

Feature Image 1
Segway AT5 L EPS – Product Specifications
Specification Detail
Engine
Engine Type 499cc, 4-stroke, single-cylinder, DOHC, liquid-cooled
Maximum Power 39 hp
Maximum Torque 44 Nm
0–60 km/h 4.6 seconds
Fuel System Bosch electronic fuel injection
Cooling System Dual oil column piston cooling + liquid and oil heat exchanger cooling
Drivetrain
Transmission CVTech CVT (Canada)
Drive System 2WD / 4WD / 4WD lock
Differential Switchable front differential with fixed rear axle
Chassis
Frame High-strength chromium-molybdenum steel
Seating Two-up (rider and passenger) with passenger backrest
Steering Smart EPS (electric power steering)
Brakes 4-wheel hydraulic disc brakes
Climbing Angle 39°
Suspension
Front Suspension Dual A-arm, 180 mm (7.1″) travel
Rear Suspension 210 mm (7.9″) travel
Shocks Oil shocks with adjustable spring pre-load
Wheels & Tyres
Wheels 12″ steel rims
Front Tyres 25 x 8-12, 6 ply
Rear Tyres 25 x 10-12, 6 ply
Dimensions & Weight
Length x Width x Height 2,300 x 1,180 x 1,350 mm (90.5 x 46.5 x 53.0″)
Wheelbase 1,450 mm (57.2″)
Ground Clearance 250 mm (9.8″)
Curb Weight 370 kg
Capacities
Fuel Tank 19 litres (5.0 gal)
Payload Capacity 270 kg (595 lb)
Front / Rear Rack Capacity 40 kg / 60 kg (88 lb / 132 lb)
Towing Capacity (Unbraked) 300 kg (661 lb)
Towing Capacity (Braked Trailer) 612 kg (1,350 lb)
Standard Equipment
Winch 2,500 lb
Lighting LED lights and indicators
Racks Front and rear steel racks
Protection Front bumper and handlebar guard
Towing Hitch and ball mounting device
Connectivity T-Box telematics with Smart Moving App (vehicle data, location, SOS emergency contact alert)
Colour & Warranty
Colour Options Green / Black, Grey / Blue
Warranty 24-month limited warranty
