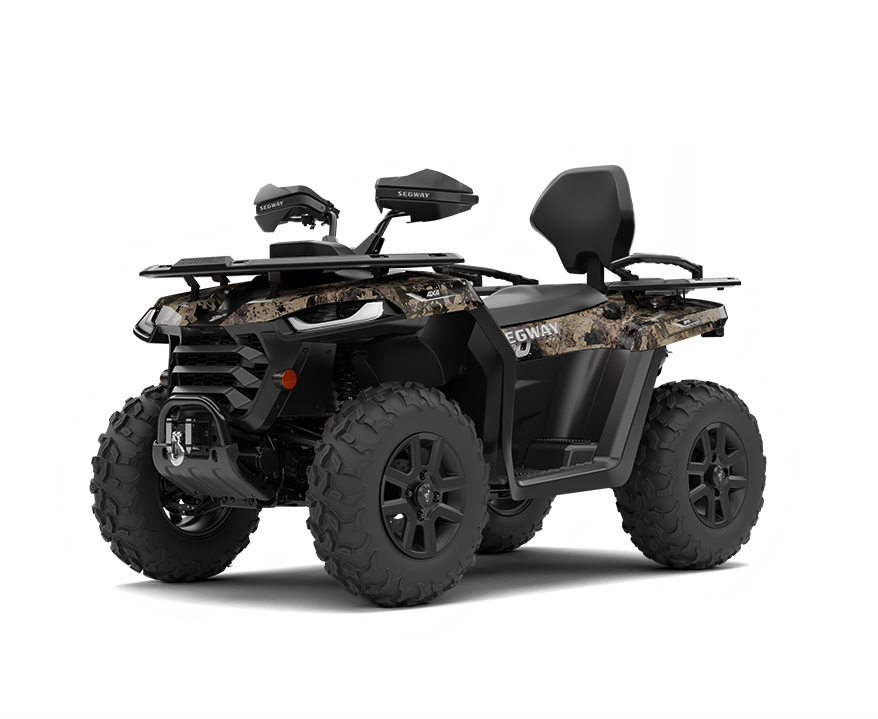

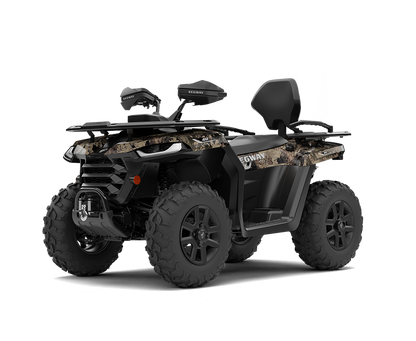

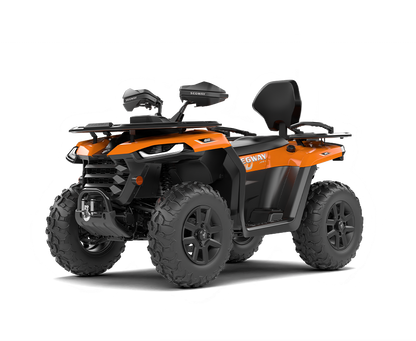

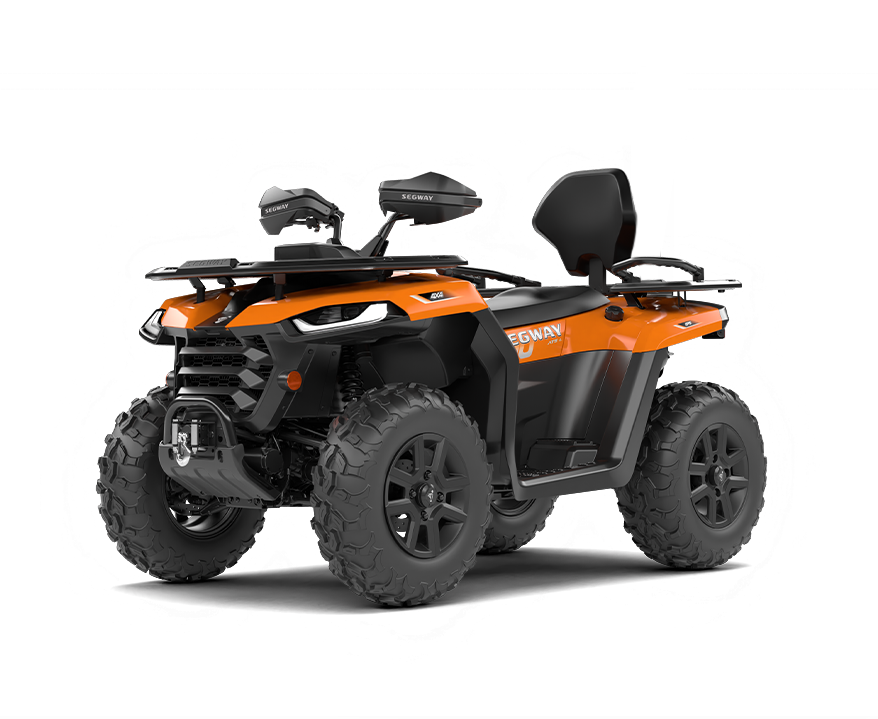

Segway Snarler AT5 L QUAD PRO

Segway Snarler AT5 L QUAD PRO

The Segway AT5 L Quad Pro is a long-wheelbase, two-seat quad at the top of the AT5 L range. It has electric power steering, a 2,500 lb winch, four-wheel disc brakes and 12″ alloy rims. It makes 39 hp, has switchable 2WD/4WD/4WD lock, a 270 kg payload and 612 kg braked towing capacity. It comes in Orange/Black or camo with a 24-month warranty. Price Includes GST
Body color: Orange
$13,789.00 NZD
$13,789.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Book a Test Ride Calculate Payments
View full details

The top-spec two-seat AT5. The AT5 L Quad Pro is the best-equipped long-wheelbase quad in the AT5 range. It has a passenger seat with backrest and a 270 kg payload, compared with 185 kg on the single-seat AT5 S models. It has a 499cc liquid-cooled engine making 39 hp and 44 Nm of torque. Electric power steering keeps the bars light on rough ground, and a 2,500 lb winch is fitted to recover you or a load from mud or a steep spot. Compared with the AT5 L EPS, you get 12″ alloy rims in place of steel, plastic rack covers, and a choice of Orange/Black or camo.

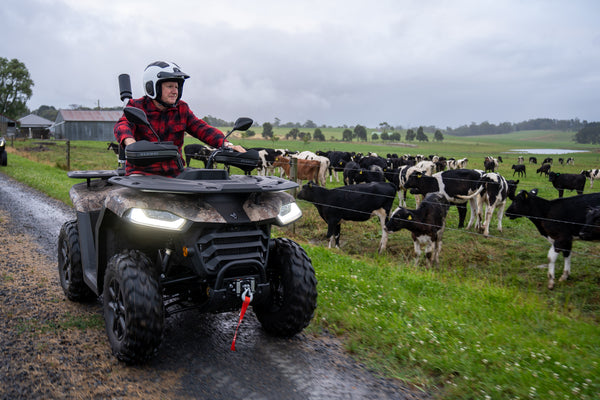

Feature Image 1
Feature Image 2

Longer, steadier and easy to ride. The wheelbase is 1.45 m, which gives it a more stable ride than the shorter AT5 S, and the 25″ tyres add a little more grip and clearance. Ground clearance is 250 mm, with 180 mm / 210 mm of front and rear suspension travel. You pick 2WD, 4WD or 4WD lock, and the front differential is switchable. The CVTech automatic transmission means no clutch or gear changes, so it’s simple for new riders and quick to jump on and off. Four-wheel hydraulic disc brakes give you strong stopping power.

Ready for work, with safety tech built in. It tows up to 612 kg on a braked trailer, and has front and rear steel racks (40 kg / 60 kg), a hitch ball, a front bumper and a handlebar guard fitted. The T-Box and Smart Moving App let you check vehicle data and location. If the quad rolls or has a serious collision, the app sends an SMS with your location to your emergency contact. It’s covered by a 24-month limited warranty and supported by Segway’s NZ dealer and service network.

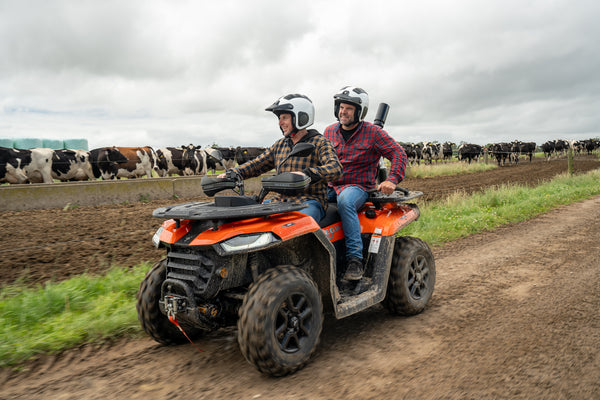

Feature Image 1
Segway AT5 L Quad Pro – Product Specifications
Specification Detail
Engine
Engine Type 499cc, 4-stroke, single-cylinder, DOHC, liquid-cooled
Maximum Power 39 hp
Maximum Torque 44 Nm
0–60 km/h 4.6 seconds
Fuel System Bosch electronic fuel injection
Cooling System Dual oil column piston cooling + liquid and oil heat exchanger cooling
Drivetrain
Transmission CVTech CVT (Canada)
Drive System 2WD / 4WD / 4WD lock
Differential Switchable front differential
Chassis
Frame High-strength chromium-molybdenum steel
Seating Two-up (rider and passenger) with passenger backrest
Steering Smart EPS (electric power steering)
Brakes 4-wheel hydraulic disc brakes
Climbing Angle 39°
Suspension
Front Suspension Dual A-arm, 180 mm (7.1″) travel
Rear Suspension 210 mm (7.9″) travel
Shocks Oil shocks with adjustable spring pre-load
Wheels & Tyres
Wheels 12″ alloy rims
Front Tyres 25 x 8-12, 6 ply
Rear Tyres 25 x 10-12, 6 ply
Dimensions & Weight
Length x Width x Height 2,300 x 1,180 x 1,350 mm (90.5 x 46.5 x 53.0″)
Wheelbase 1,450 mm (57.2″)
Ground Clearance 250 mm (9.8″)
Curb Weight 370 kg
Capacities
Fuel Tank 19 litres (5.0 gal)
Payload Capacity 270 kg (595 lb)
Front / Rear Rack Capacity 40 kg / 60 kg (88 lb / 132 lb)
Towing Capacity (Unbraked) 300 kg (661 lb)
Towing Capacity (Braked Trailer) 612 kg (1,350 lb)
Standard Equipment
Winch 2,500 lb
Lighting LED lights and indicators
Racks Front and rear steel racks with plastic rack covers
Protection Front bumper and handlebar guard
Towing Hitch and ball mounting device
Connectivity T-Box telematics with Smart Moving App (vehicle data, location, SOS emergency contact alert)
Colour & Warranty
Colour Options Orange / Black, TrueTimber® Prairie Camo
Warranty 24-month limited warranty
