Segway Snarler AT5 S EPS

Segway Snarler AT5 S EPS

The Segway AT5 S EPS is a lightweight, single-seat quad with electric power steering and a 2,500 lb winch fitted. It makes 39 hp, has switchable 2WD/4WD/4WD lock, four-wheel disc brakes, a 185 kg payload and 612 kg braked towing capacity. It comes with a 24-month warranty. Price Includes GST
Body color: Gray
$12,639.00 NZD
$12,639.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Book a Test Ride Calculate Payments
View full details

Power steering and a winch fitted as standard. The AT5 S EPS is a single-seat quad with a 499cc liquid-cooled engine making 39 hp and 44 Nm of torque. What sets it apart from the base AT5 S Rugged is the equipment. It has electric power steering, so the bars stay light on rough ground and long days of riding or stock work are less tiring. It also has a 2,500 lb winch for getting yourself or a load out of mud, ditches or a bad spot on the hill. Four-wheel hydraulic disc brakes give you the stopping power to match.

Feature Image 1
Feature Image 2

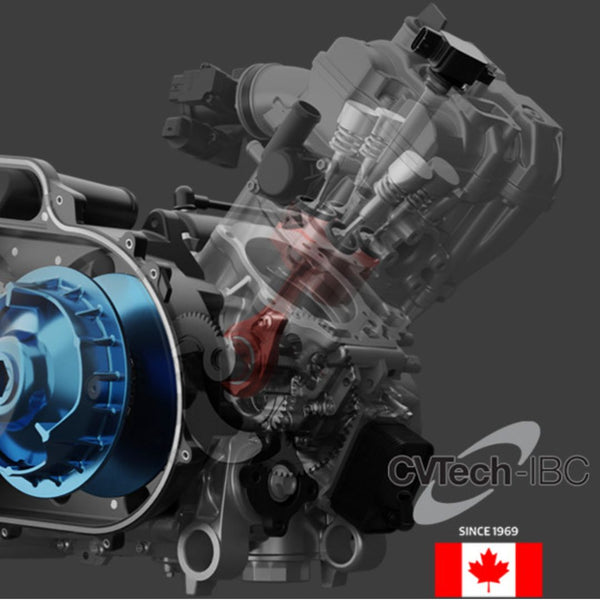

Compact, agile and easy to ride. At 355 kg with a 1.3 m wheelbase, it’s easy to place on tight tracks, through bush and around the yard. 250 mm of ground clearance and 180 mm / 210 mm of front and rear suspension travel handle rough ground. You pick 2WD, 4WD or 4WD lock, and the front differential is switchable. A fixed rear axle puts power to all four wheels when you need it. The CVTech automatic transmission means no clutch or gear changes, so it’s simple for new riders and quick to jump on and off.

Ready for work, with safety tech built in. It carries 185 kg, tows up to 612 kg on a braked trailer, and has front and rear steel racks (40 kg / 60 kg) and a hitch ball fitted. A handlebar guard and plastic rack covers are included as well. The T-Box and Smart Moving App let you check vehicle data and location. If the quad rolls or has a serious collision, the app sends an SMS with your location to your emergency contact. It’s available in Green/Black or Grey/Blue, with a 24-month limited warranty and support from Segway’s NZ dealer and service network.

Feature Image 1
Segway AT5 S EPS – Product Specifications
Specification Detail
Engine
Engine Type 499cc, 4-stroke, single-cylinder, DOHC, liquid-cooled
Maximum Power 39 hp
Maximum Torque 44 Nm
0–60 km/h 4.6 seconds
Fuel System Bosch electronic fuel injection
Cooling System Dual oil column piston cooling + liquid and oil heat exchanger cooling
Drivetrain
Transmission CVTech CVT (Canada)
Drive System 2WD / 4WD / 4WD lock
Differential Switchable front differential with fixed rear axle
Chassis
Frame High-strength chromium-molybdenum steel
Seating Single rider
Steering Smart EPS (electric power steering)
Brakes 4-wheel hydraulic disc brakes
Climbing Angle 39°
Suspension
Front Suspension Dual A-arm, 180 mm (7.1″) travel
Rear Suspension 210 mm (7.9″) travel
Shocks Oil shocks with adjustable spring pre-load
Wheels & Tyres
Wheels 12″ steel rims
Front Tyres 24 x 8-12, 6 ply
Rear Tyres 24 x 10-12
Dimensions & Weight
Length x Width x Height 2,160 x 1,180 x 1,230 mm (85 x 46.5 x 48.4″)
Wheelbase 1,300 mm (51.2″)
Ground Clearance 250 mm (9.8″)
Curb Weight 355 kg
Capacities
Fuel Tank 19 litres (5.0 gal)
Payload Capacity 185 kg (407 lb)
Front / Rear Rack Capacity 40 kg / 60 kg (88 lb / 132 lb)
Towing Capacity (Unbraked) 300 kg (661 lb)
Towing Capacity (Braked Trailer) 612 kg (1,350 lb)
Standard Equipment
Winch 2,500 lb
Lighting LED lights and indicators
Racks Front and rear steel racks with plastic rack covers
Protection Front bumper and handlebar guard
Towing Hitch and ball mounting device
Connectivity T-Box telematics with Smart Moving App (vehicle data, location, SOS emergency contact alert)
Colour & Warranty
Colour Options Green / Black, Grey / Blue
Warranty 24-month limited warranty
