Segway Snarler AT5 S Rugged

Segway Snarler AT5 S Rugged

The Segway AT5 S Rugged is a lightweight, single-seat quad built for farm work and weekend riding. It has 39 hp, switchable 2WD/4WD/4WD lock, a 185 kg payload and a 612 kg braked towing capacity. It is the no-frills entry to the Segway ATV range and comes with a 24-month warranty. Price includes GST
$11,259.00 NZD
$11,259.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Book a Test Ride Calculate Payments
View full details

A proper working quad without the extras. The AT5 S Rugged is the entry point to Segway’s ATV range. It’s a single-seat quad with a 499cc liquid-cooled engine making 39 hp and 44 Nm of torque, so it handles stock work, fence lines and hill country without the cost of options you may not use. Bosch fuel injection means it starts and runs reliably in cold mornings and at altitude. If you want power steering or a winch, they come on the AT5 S EPS and Quad Pro.

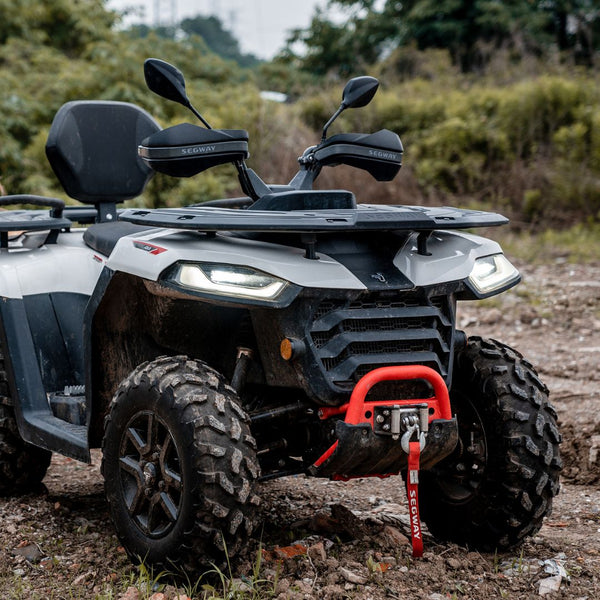

Feature Image 1
Feature Image 2

Light, short and easy to place. At 355 kg with a 1.3 m wheelbase, it’s compact and agile on tight tracks, in bush and around the yard. You still get 250 mm of ground clearance and 180 mm / 210 mm of front and rear suspension travel to get over rough ground. You choose 2WD, 4WD or 4WD lock, and the front differential is switchable. A fixed rear axle puts power to all four wheels when you need it. The CVTech automatic transmission means no clutch or gear changes, so it’s simple for new riders and quick to jump on and off.

Built to work, with safety tech included. It carries 185 kg, tows up to 612 kg on a braked trailer, and has steel racks front and rear (40 kg / 60 kg) and a hitch ball fitted. The T-Box and Smart Moving App let you check vehicle data and location. If the quad rolls or has a serious collision, the app sends an SMS with your location to your emergency contact. It’s covered by a 24-month limited warranty and supported by Segway’s NZ dealer and service network.

Feature Image 1
Segway AT5 S Rugged – Product Specifications
Specification Detail
Engine
Engine Type 499cc, 4-stroke, single-cylinder, DOHC, liquid-cooled
Maximum Power 39 hp
Maximum Torque 44 Nm
0–60 km/h 4.6 seconds
Fuel System Bosch electronic fuel injection
Cooling System Dual oil column piston cooling + liquid and oil heat exchanger cooling
Drivetrain
Transmission CVTech CVT (Canada)
Drive System 2WD / 4WD / 4WD lock
Differential Switchable front differential with fixed rear axle
Chassis
Frame High-strength chromium-molybdenum steel
Seating Single rider
Steering Manual (power steering available on AT5 S EPS)
Brakes 3-wheel hydraulic disc brake system
Climbing Angle 39°
Suspension
Front Suspension Dual A-arm, 180 mm (7.1″) travel
Rear Suspension 210 mm (7.9″) travel
Shocks Oil shocks with adjustable spring pre-load
Wheels & Tyres
Wheels 12″ steel rims
Front Tyres 24 x 8-12, 6 ply
Rear Tyres 24 x 10-12
Dimensions & Weight
Length x Width x Height 2,160 x 1,180 x 1,230 mm (85 x 46.5 x 48.4″)
Wheelbase 1,300 mm (51.2″)
Ground Clearance 250 mm (9.8″)
Curb Weight 355 kg
Capacities
Fuel Tank 19 litres (5.0 gal)
Payload Capacity 185 kg (407 lb)
Front / Rear Rack Capacity 40 kg / 60 kg (88 lb / 132 lb)
Towing Capacity (Unbraked) 300 kg (661 lb)
Towing Capacity (Braked Trailer) 612 kg (1,350 lb)
Standard Equipment
Lighting LED lights and indicators
Racks Front and rear steel racks
Front Bumper Yes
Towing Hitch and ball mounting device
Connectivity T-Box telematics with Smart Moving App (vehicle data, location, SOS emergency contact alert)
Colour & Warranty
Colour White / Red
Warranty 24-month limited warranty
